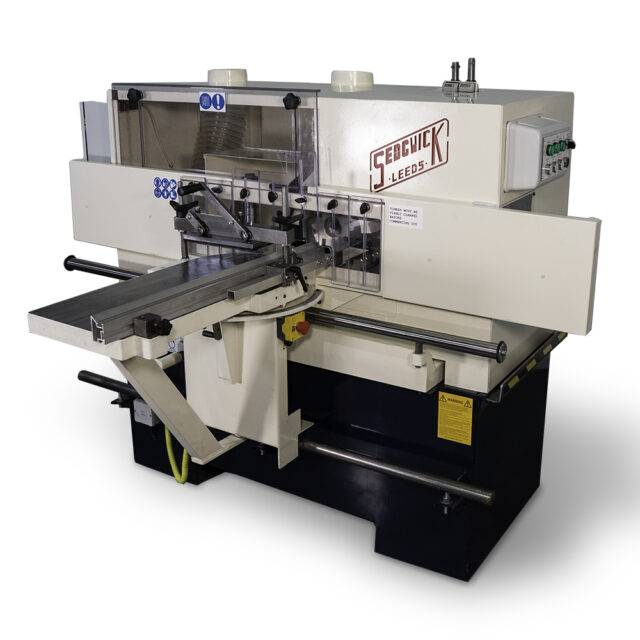

Sedgwick TE350

Product Specifications

• Tenoning heads

  3

• Vertical spindle

  1

• Timber capacity

  300 x 300mm

• Table size

  765 340 (765 x 300 useful)

• Table working height

  890mm

• Table quadrant adjustment

  '+/- 0-60 degrees

• Cutterblocks

  150 x 150 x 30mm

• Vertical adjustment of bottom cutterblock

  '-2mm / +77mm

• Vertical adjustment of top cutterblock

  '+4mm / +150mm

• Horizontal adjustment of top cutterblock

  '-50mm/+20mm

• Shaft diameter

  40 mm

• Effective length of shaft

  205mm

• Vertical movement of spindle

  140 mm

• Horizontal movement of spindle

  150mm

• Maximum tooling diameter

  350mm

• Spindle speed

  4000rpm

• Dust extraction outlets

  2 x 150mm

• Motors

  2 x 2.2 kW & 1 x 5.5kW

• Power

  3 phase
