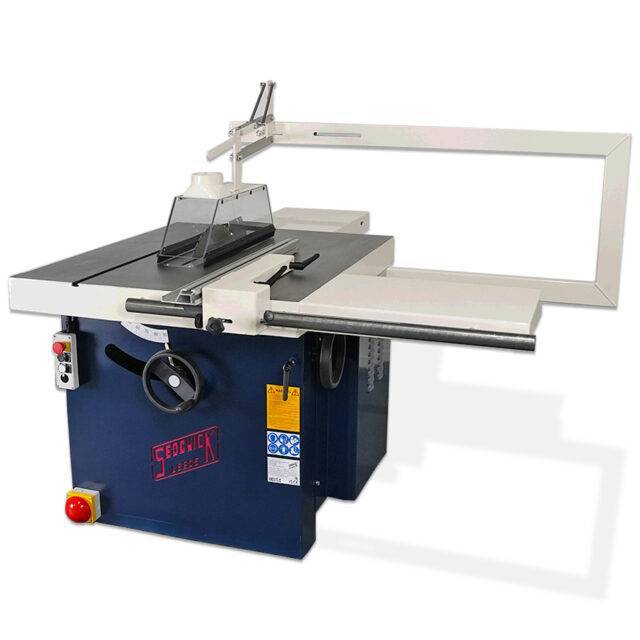

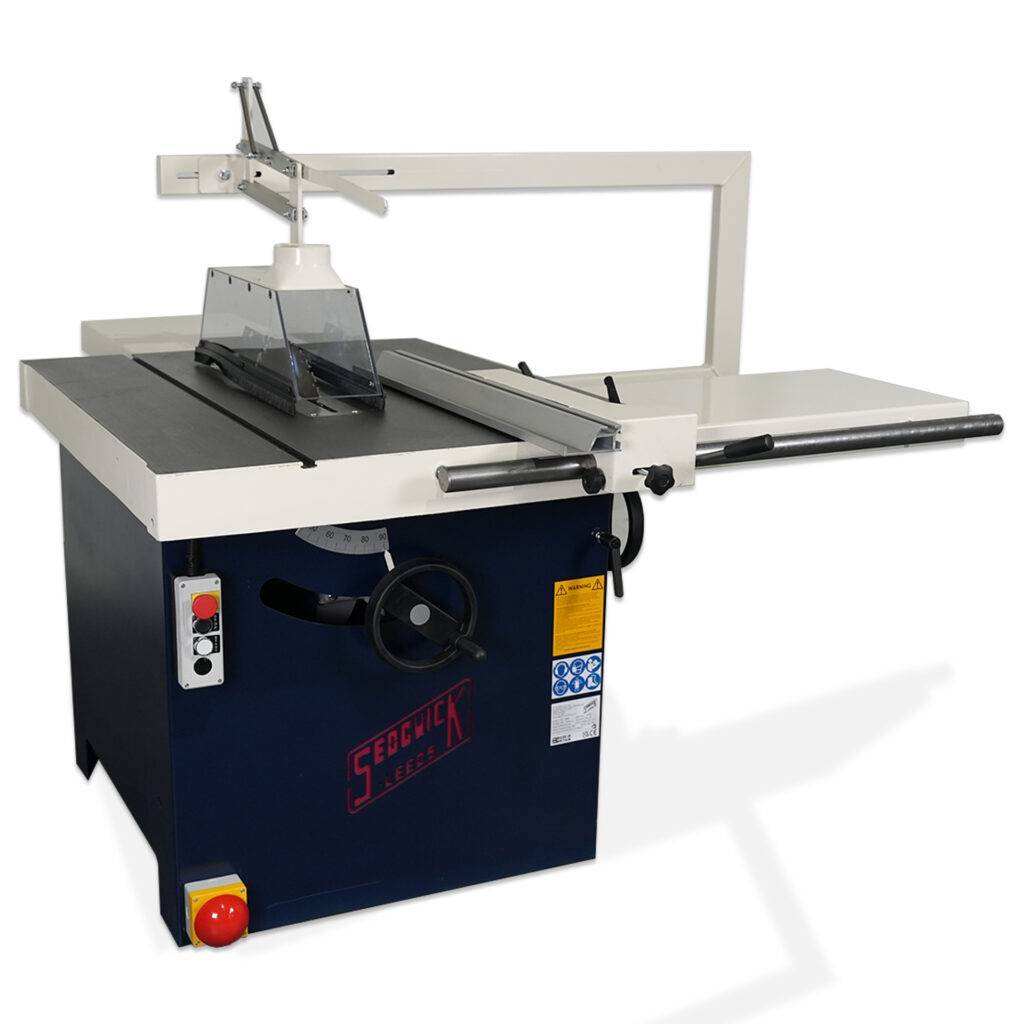

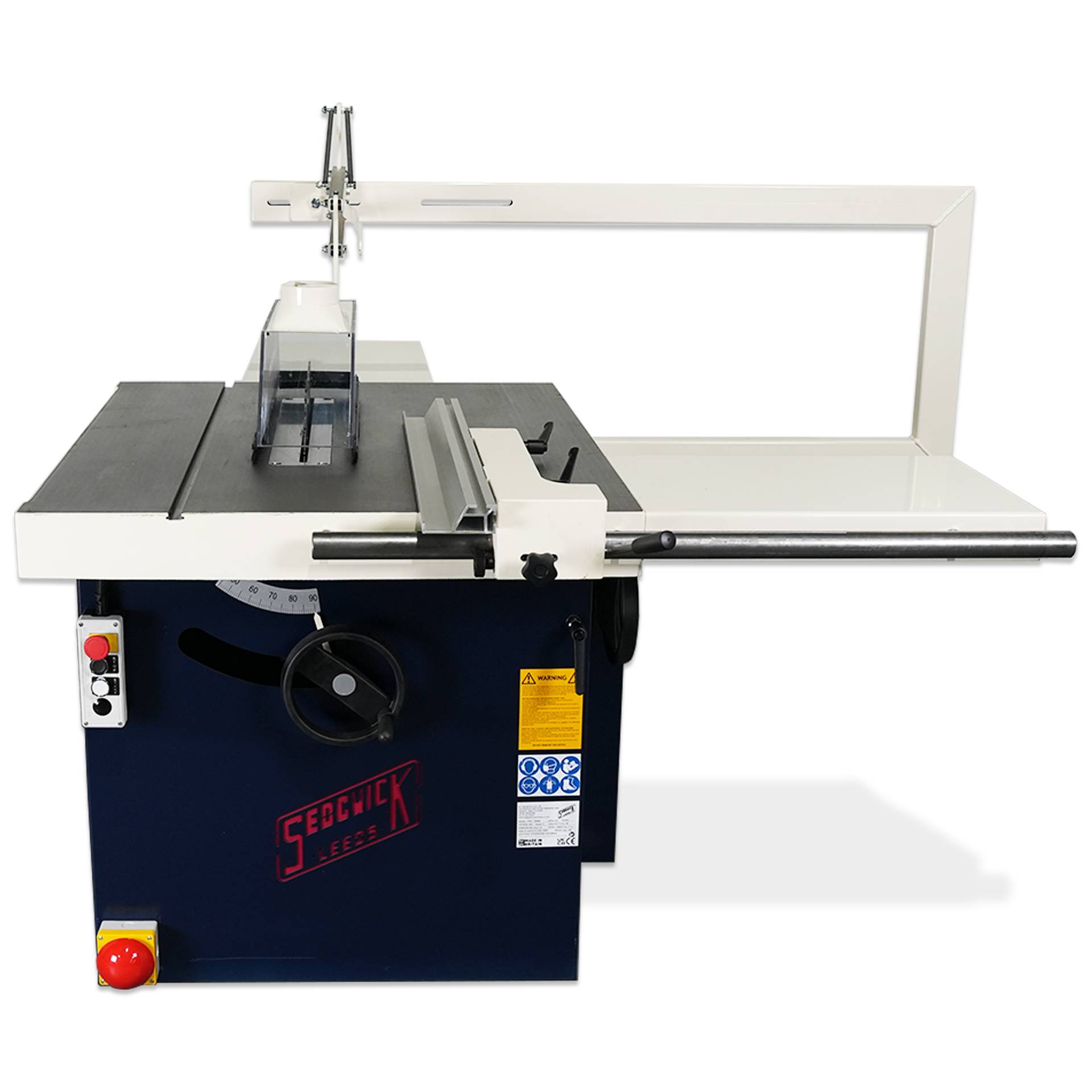

Sedgwick TA450

Ease of operation - The backbone of a joinery workshop is its sawbench. It should be powerful, accurate, reliable and simple and safe to operate. The Sedgwick TA450 is designed with this in mind, and offers outstanding value for money. Its strength is in its construction, precision engineering, and our insistence on using only the best quality components.

Construction - A large cast iron table mounted on a heavy duty steel cabinet provides maximum timber support and a stable and accurate base for anchoring the spindle, rise and fall, and tilt mechanisms. The spindle is powered by a high efficiency IE2 industrial rated motor via a three belt drive, and features large diameter saw flanges for blade stability. It runs in ‘sealed for life’ bearings mounted in a cast iron housing, and requires only minimal maintenance. Rise and fall and tilt mechanisms are square thread screws operated by handwheels at the front and side of the machine. Both are easily accessible.

Versatility - The rip fence is aluminium section, allowing for two working positions (ripping and angled ripping) and for movement fore and aft in relation to the sawblade. It is fixed to a heavy duty cast iron mounting bracket for rigidity, and has integral micro adjustment. The assembly runs on a nylon roller, gliding easily across the beds, and is supported by a 40mm diameter solid steel bar for rigidity, which gives 915mm capacity from the sawblade (an optional RH extension table is available to increase this to 1220mm).

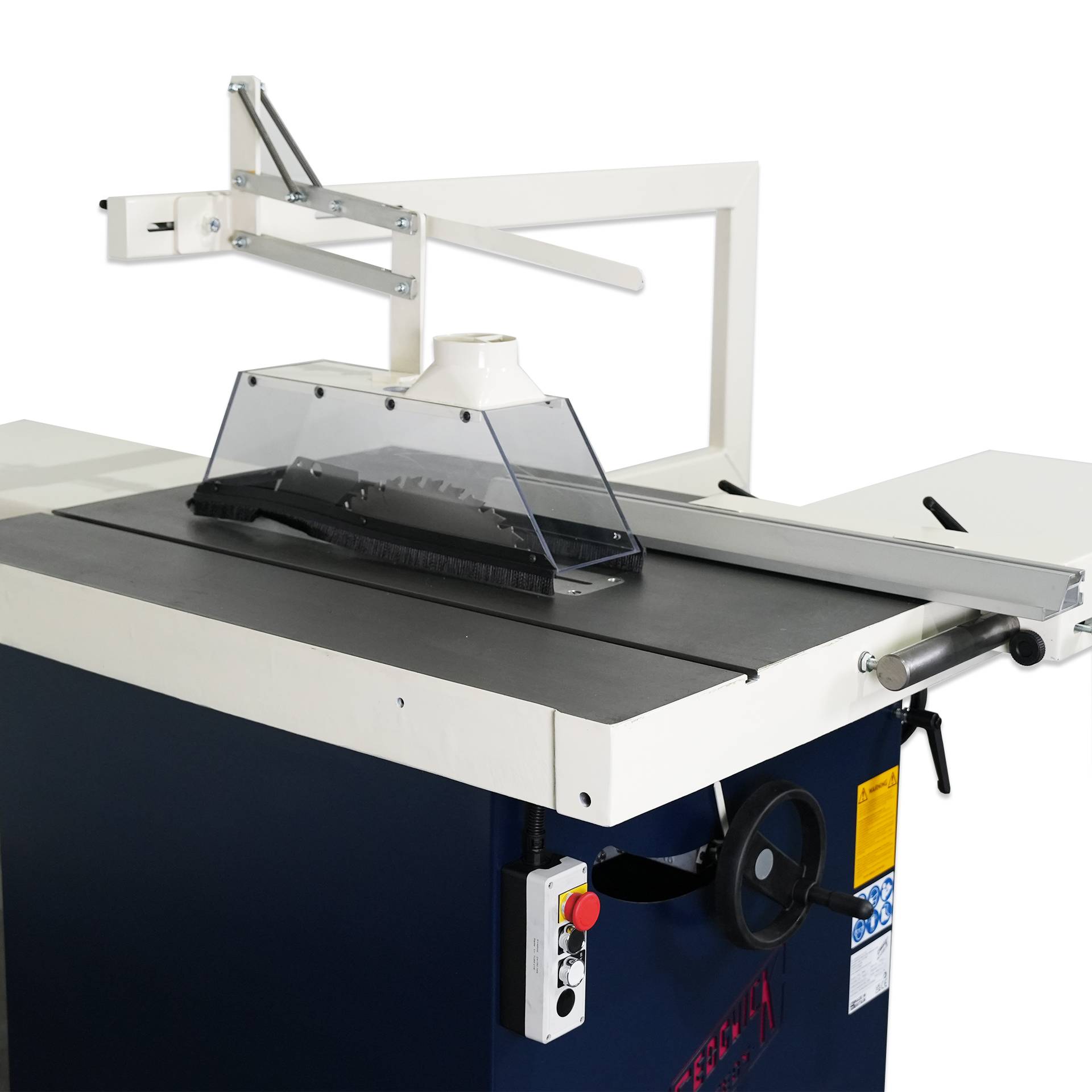

Safety Features - Polycarbonate overhead sawguard with 105mm dia Extraction Outlet , Electro-magnetic Braked Motor, Thermal overload no volt release protection, Lock off emergency stop, Button, Lock off emergency foot switch, Lockable isolator
