Sedgwick SM210

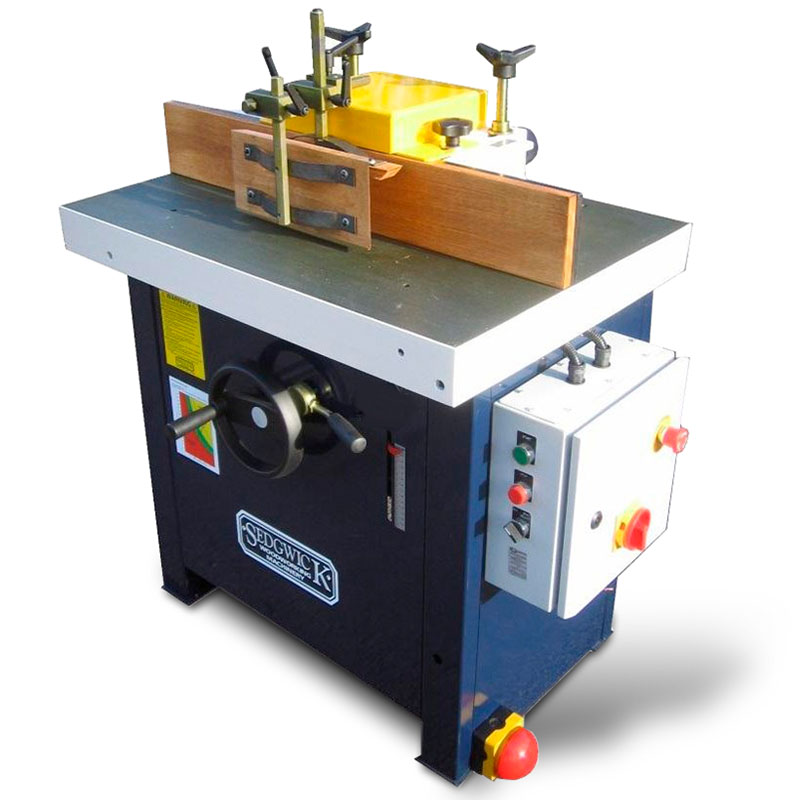

The Sedgwick SM210 Spindle Moulder features a cast iron table with anti-friction planed finish. Mounted on a heavy duty steel cabinet, the table provides maximum timber support and a stable and accurate base for anchoring the spindle, motor housing, and rise & fall mechanism. The bearing housing, rise & fall assembly and motor mountings are also in machined cast iron. The spindle is belt driven by an industrial motor and runs in “sealed for life” bearings, which require only minimal maintenance.

Ease of Operation - The spindle rise and fall mechanism is operated by a handwheel at the front of the machine, and the spindle height read from an adjacent scale. The SM210 features a cast iron ‘horseshoe’ type assembly with independently adjustable precision-ground fence plates and movement indicators. Changeover between the four spindle speeds is effected by quick and easy belt re-positioning. A viewing panel showing pulley speed is incorporated.

Versatility - The machine’s removable spindle allows the operator to select between 30mm and 11/4” dia. spindles, as well as offering the flexibility of optional router or tenoning spindles.

Safety Features - The machine is equipped with a fabricated steel cutter guard and a robust shaw guard set with hexagonal mountings and steel ratchet handles. Twin outlets facilitate dust extraction from both the cutter well and fence locations. Additional safety features include: automatic braking; starter with thermal overload no volt release protection and lock-off emergency stop; lockable isolator; electronically interlocked door; a footstop and a socket for a power feed unit.
