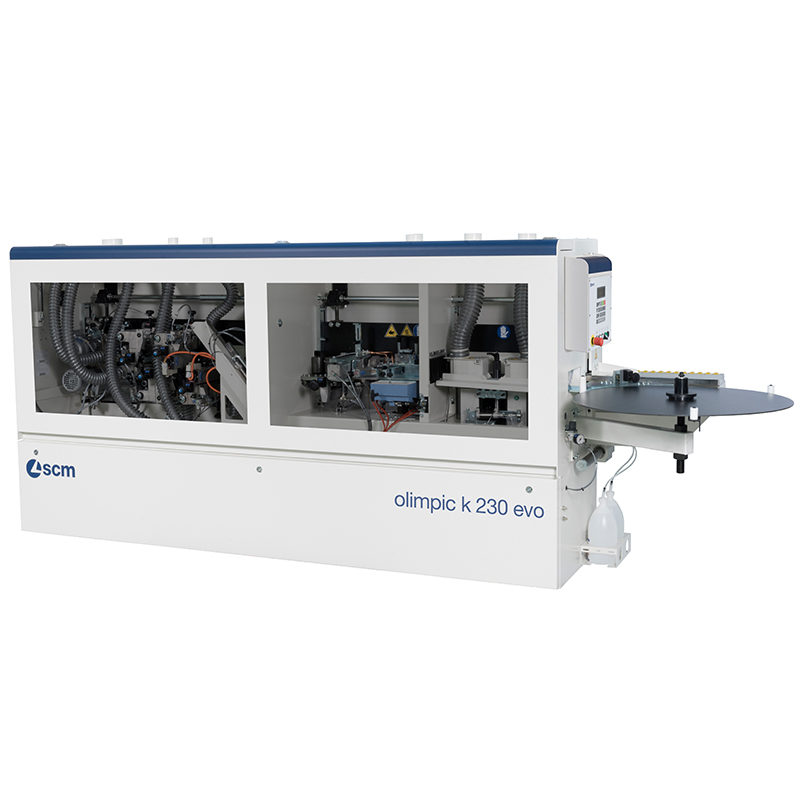

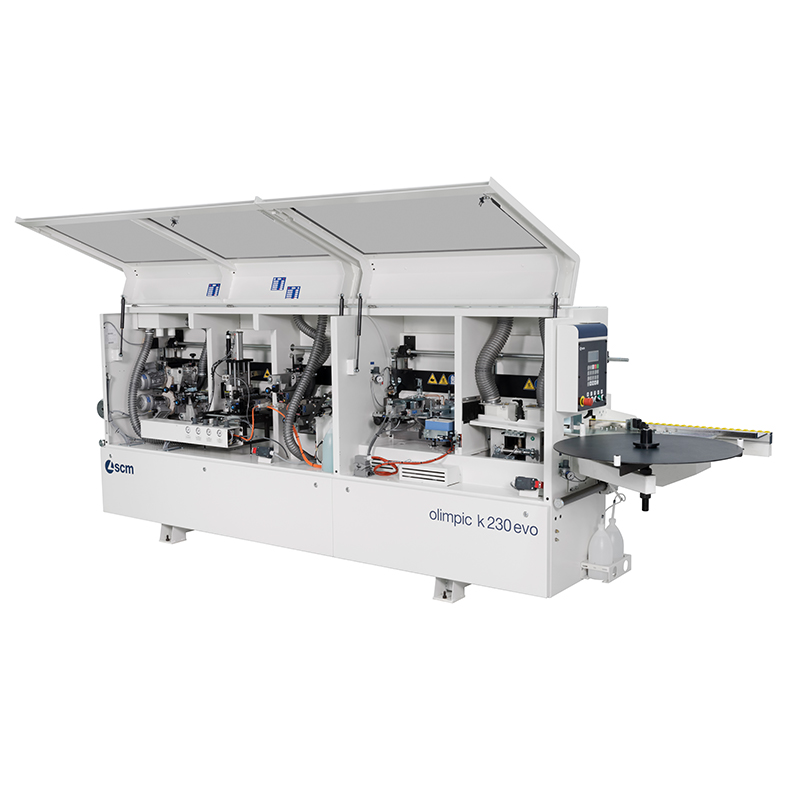

SCM Olimpic K 230 Evo

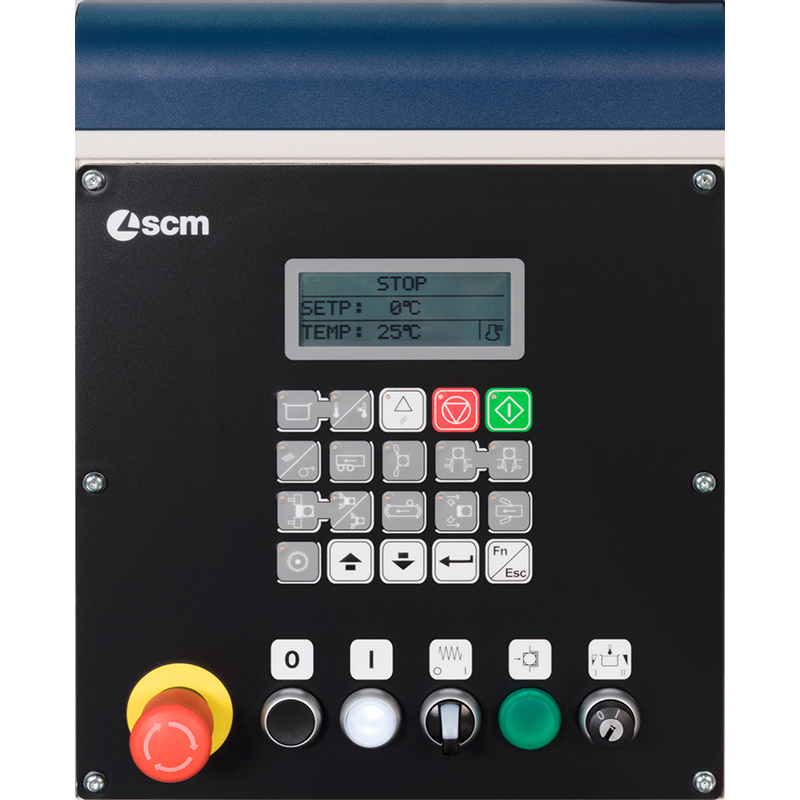

The SCM K 230 Evo is an industrial edgebander, easy to use and equipped with everything you need for the complete and professional processing of panels. The “Orion One Plus” control interface features a 4” display with soft touch keyboard for the selectin of the different operating units and machine functions.

The K 230 Evo is available in three compositions.

Composition “A” – Glue Unit, Guillotine, End Cutting, Trimming Unit, with space for 2/ 3 additional finishing units.

Composition “T” – Pre-milling, Glue Unit, Guillotine, End Cutting, Trimming Unit, with space for 2/ 3 additional finishing units.

Composition “T-ER1” - Pre-milling, Glue Unit, Guillotine, End Cutting, Trimming Unit, Corner Rounding, edge scraping unit, with space for 2 additional finishing units.

Basic Machine Units

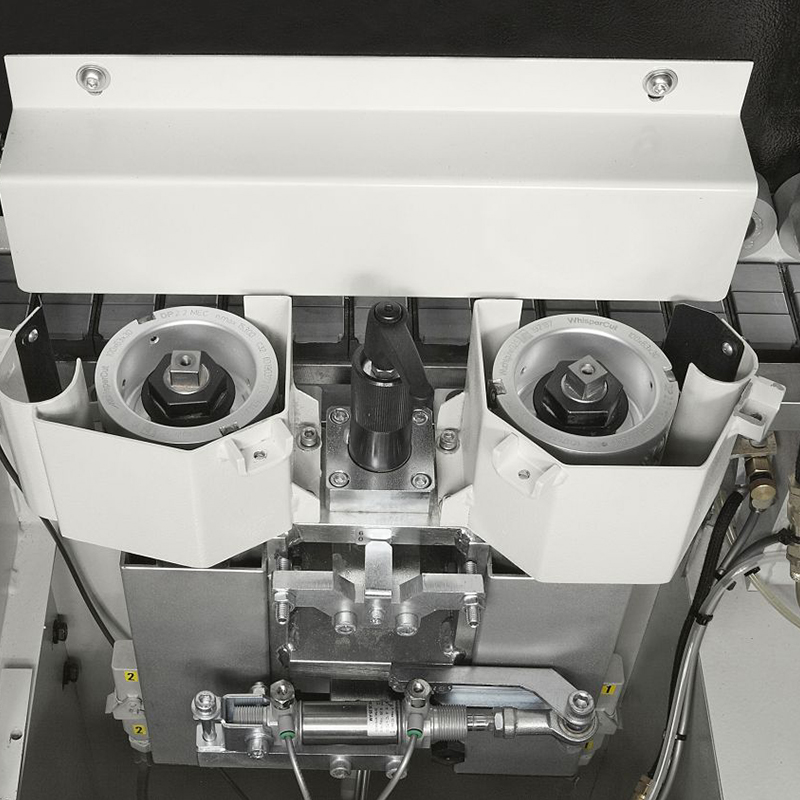

Pre-Milling Unit (K 230 Evo T/ T-ER1 models only)
“RT-V1” - It trims the panel edge obtaining a perfect uniform surface for the glue application and a perfect jointing line with the edge.

Gluing Unit
“VC-V1” - It carries out the automatic gluing with hot melt glue of edges in rolls and strips on straight panels.

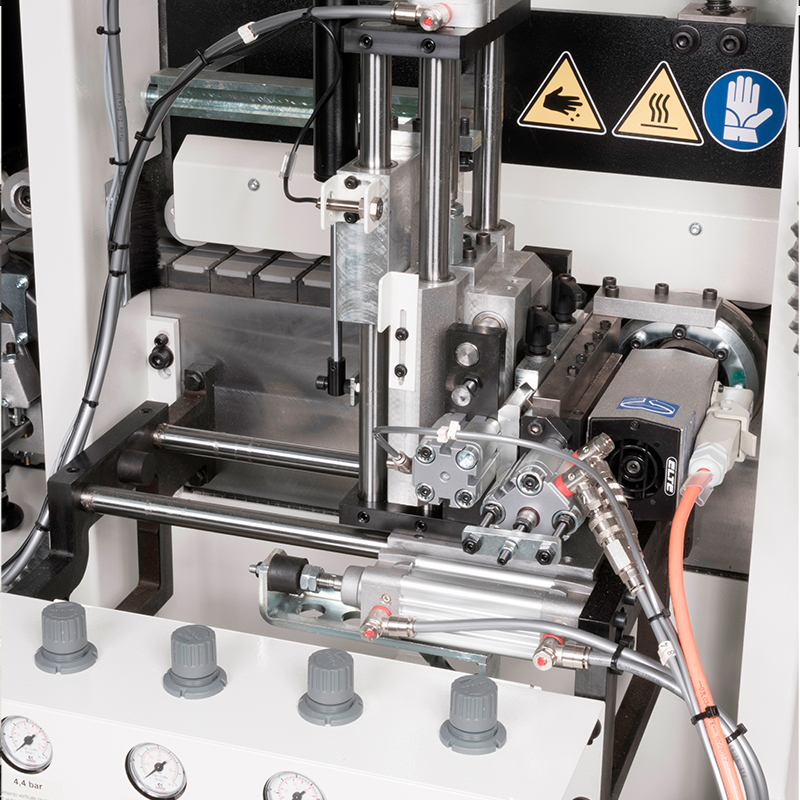

End Cutting Unit
“K-1” - single-motor end cutting unit It carries out the cutting of the front and rear exceeding edge.

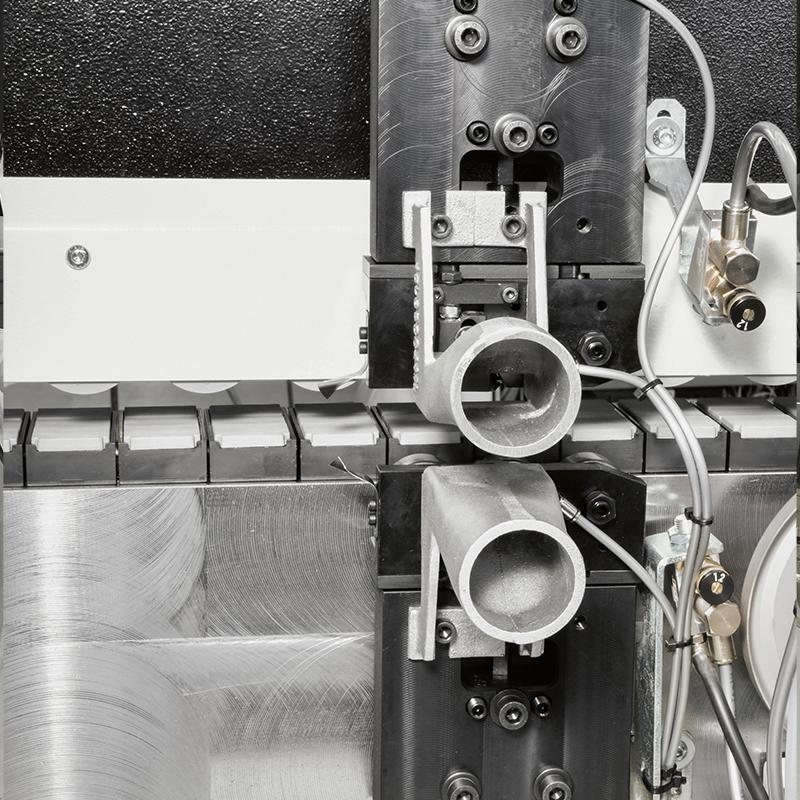

Trimming Unit
“R-K” - It carries out the trimming of the top and bottom exceeding edge.

Corner Rounding Unit (K 230 Evo T-ER1 model only)
“ROUND-1” - It carries out the automatic rounding of front and rear plastic edges angle of straight panels and panels with “radius” (see working examples).

Optional Finishing Units
Edge Scraping Unit
"RAS-V" - It eliminates the presence of notches left from the tools during the trimming from the plastic edges.

Glue Scraping Unit
“RC-N” - It eliminates any excess of glue in the joint between panel and edge. It is also possible the removal of small edge exceeding (0,1 mm for 1 mm edges). Suitable for machining panels coming from nesting cycle.

Brushing Unit
“SP-M” - With two independent motors (0,14 kW 2.800 rpm) for the cleaning/polishing of the edge.
