SCM Minimax CU 410ES

Product Specifications

• Blade diameter, max.

  350 mm

• Cutting depth, max.

  117 mm

• Blade tilt

  0 - 45°

• Cast iron table size

  1380 x 465 mm

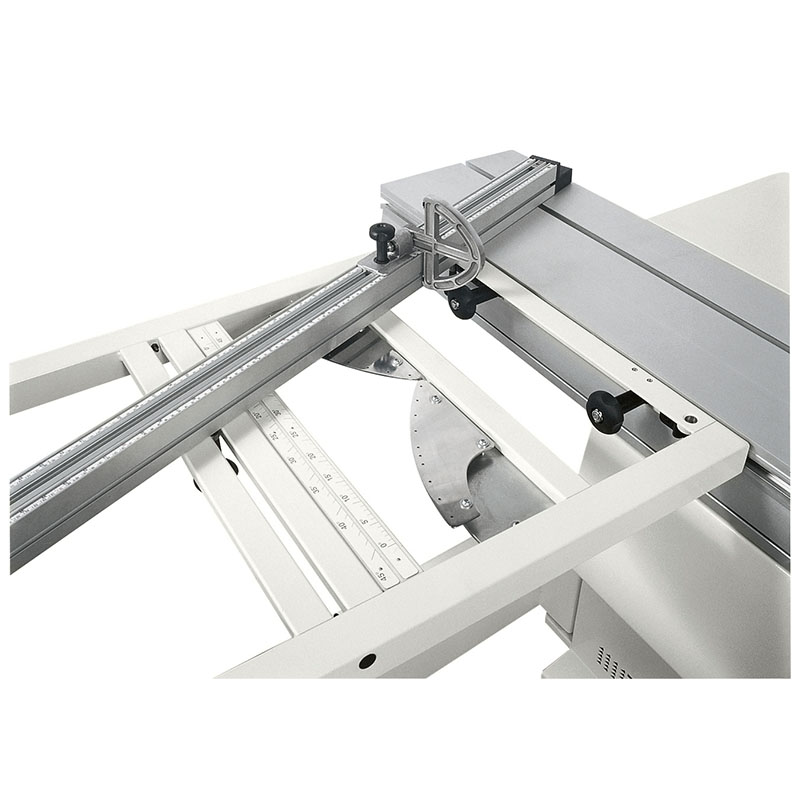

• Squaring stroke, max.

  2250 mm

• Rip fence capacity

  1000 mm

• Rip fence adjustment

  Manual

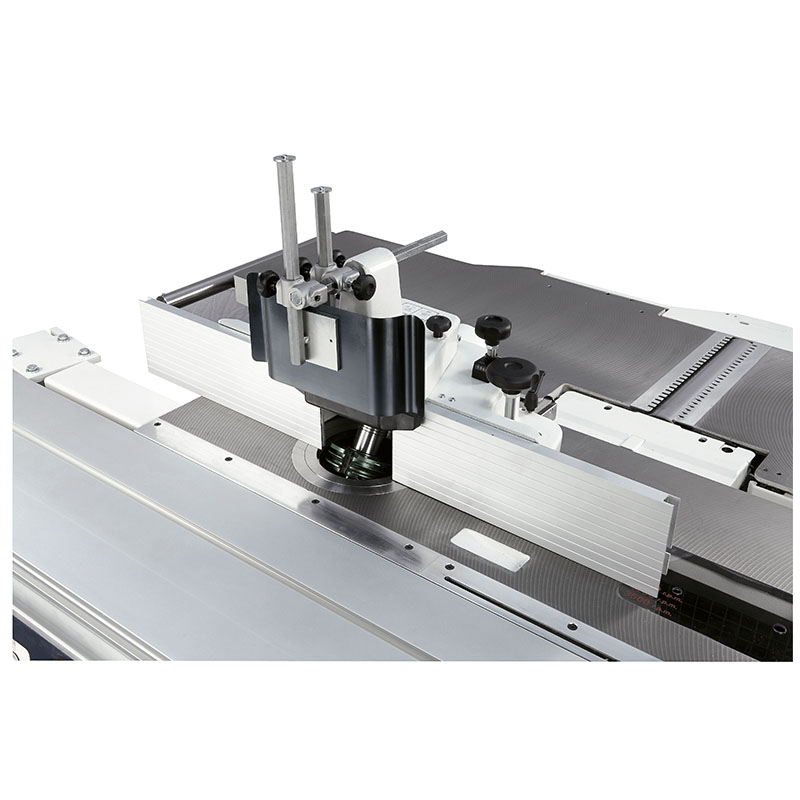

• Tool diameter, max.

  240 mm

• Tool diameter lowered under table, max.

  240 mm

• Useful spindle length, max.

  125 mm

• Spindle diameter

  30 mm

• Spindle speeds

  3500/ 6000/ 8000/ 10000 rpm

• Surfacing width capacity

  410 mm

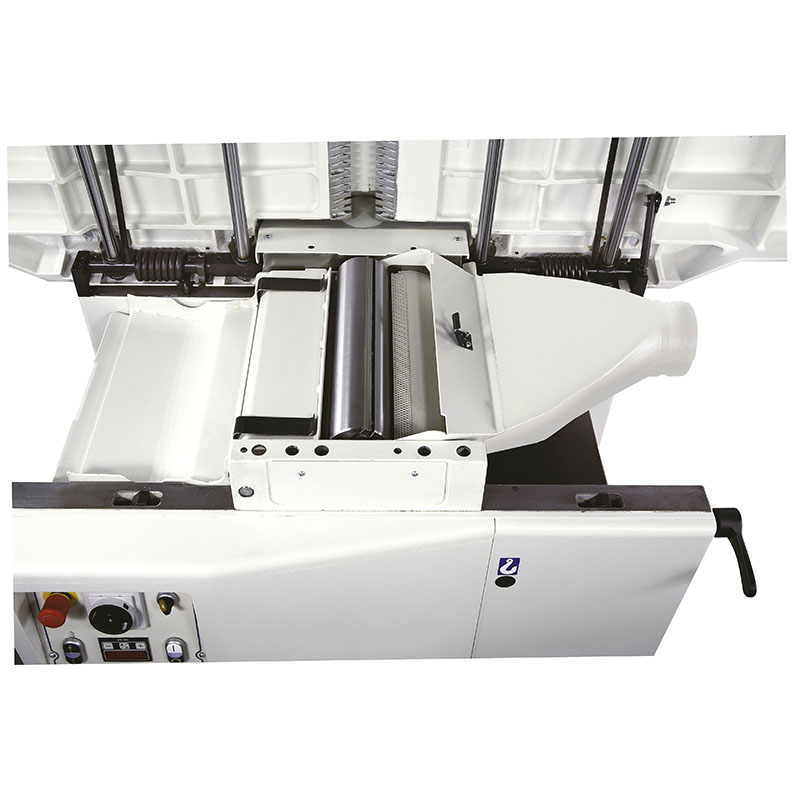

• Thicknessing depth, min. - max.

  3 - 240 mm

• Cutting depth infeed table adjustment

  0 - 5 mm

• Surfacing table length, overall

  2200 mm

• Thicknessing table length

  775 mm

• Cutterblock diameter

  95 mm

• Cutterblock type

  High Speed Steel (HSS)

• Number of knives

  4

• Feed speed(s)

  6 & 12 m/min

• Fence tilt

  0 - 45°

• Extraction outlet(s)

  3 x 120 mm

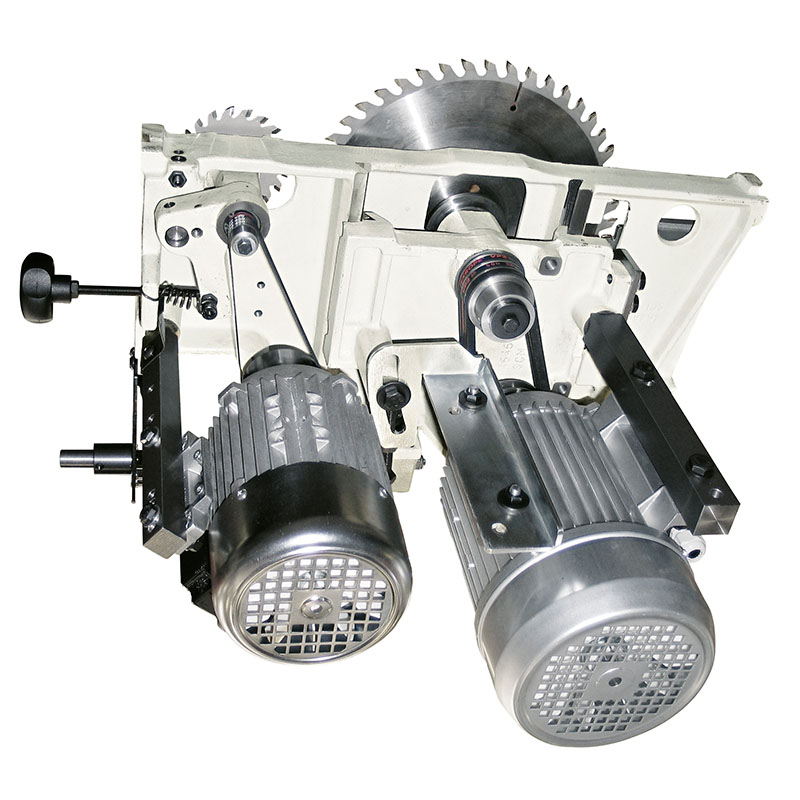

• Motor, main

  3 x 5 kW (6.6 HP)

• Motor, scoring

  1 x 0.55 kW (0.75 HP)

• Power

  3 phase
