SCM Minimax C 30G

Product Specifications

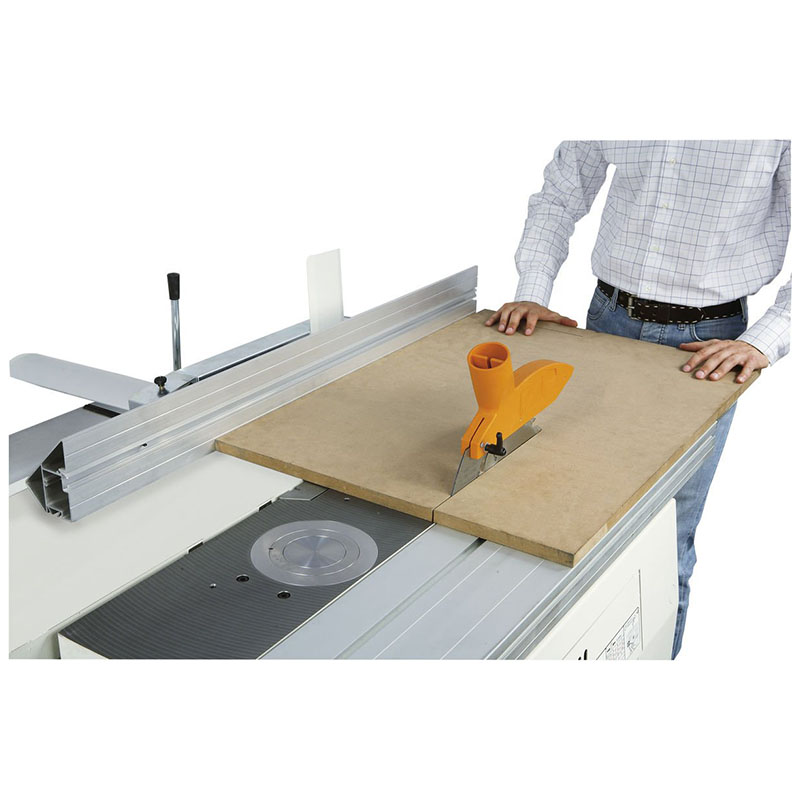

• Blade diameter, max.

  250 mm

• Cutting depth, max.

  75 mm

• Blade tilt

  0 - 45°

• Cast iron table size

  1024 x 224 mm

• Squaring stroke, max.

  1200 mm

• Rip fence capacity

  540 mm

• Rip fence adjustment

  Manual

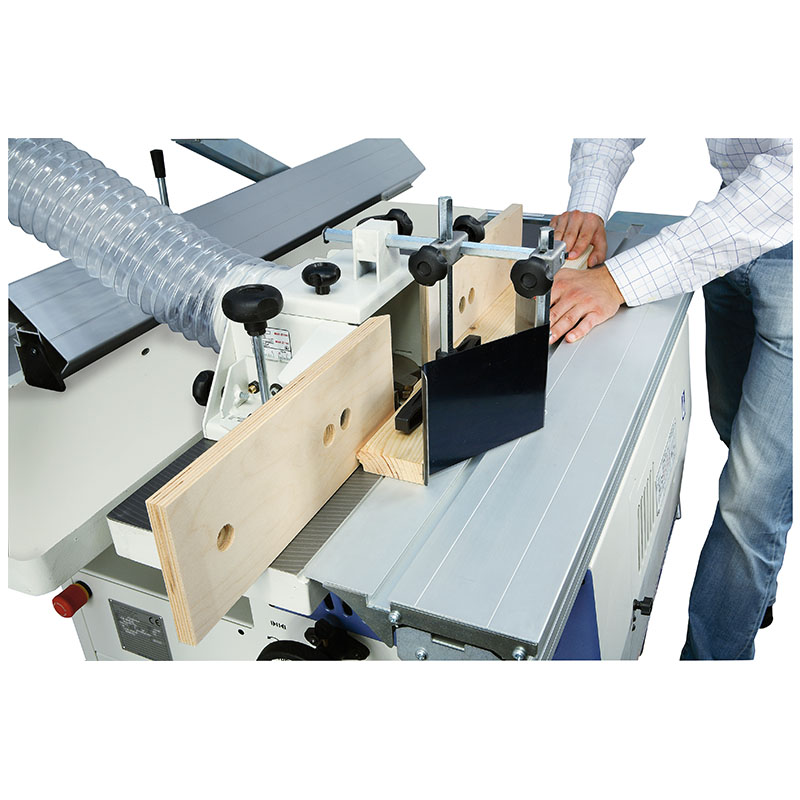

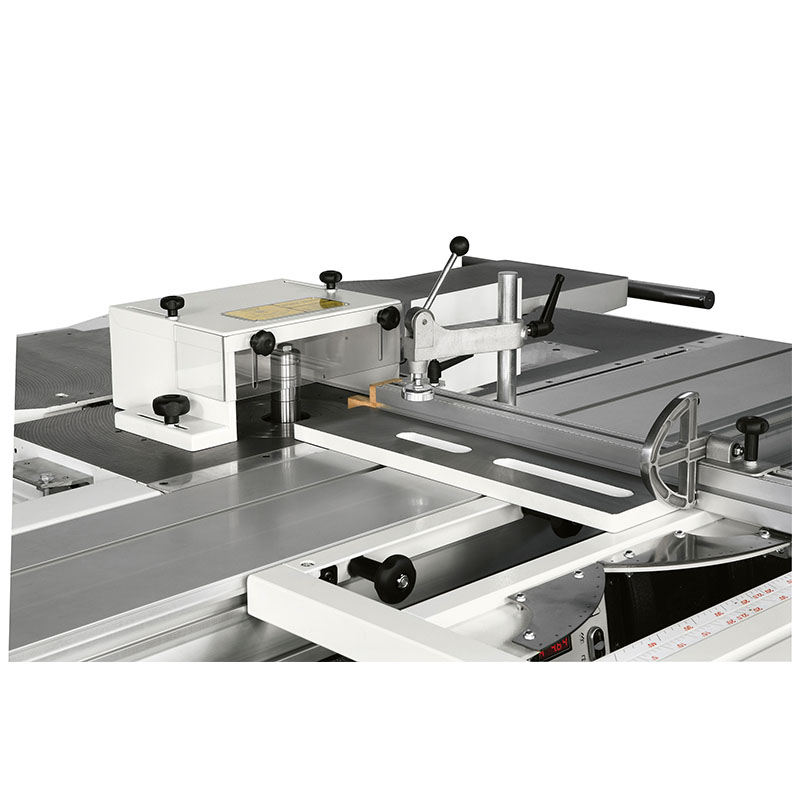

• Tool diameter, max.

  160 mm

• Tool diameter lowered under table, max.

  145 mm

• Useful spindle length, max.

  75 mm

• Spindle diameter

  30 mm

• Spindle speeds

  5000/ 7500 rpm

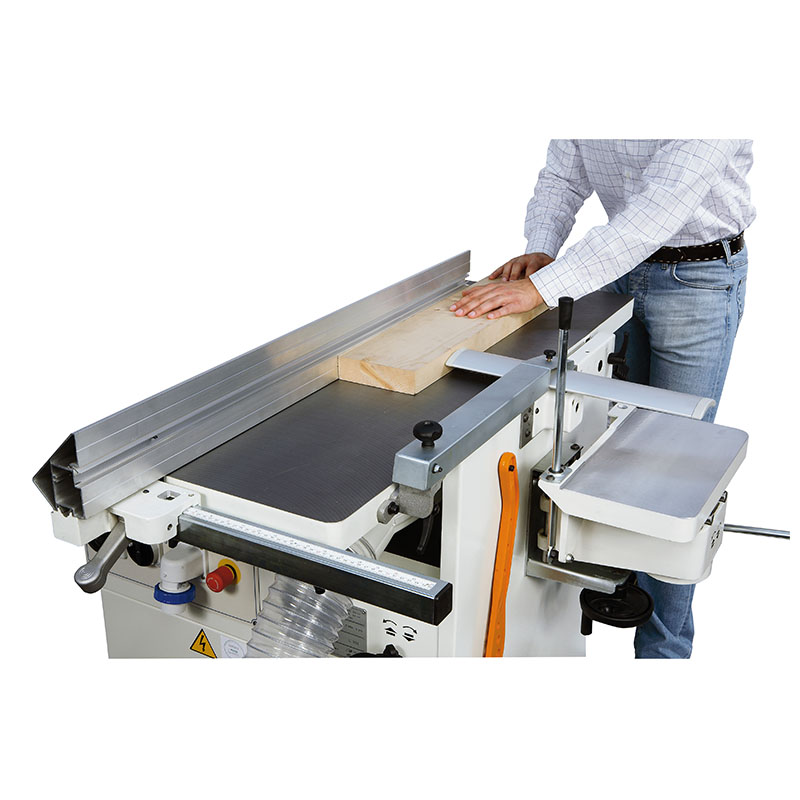

• Surfacing width capacity

  300 mm

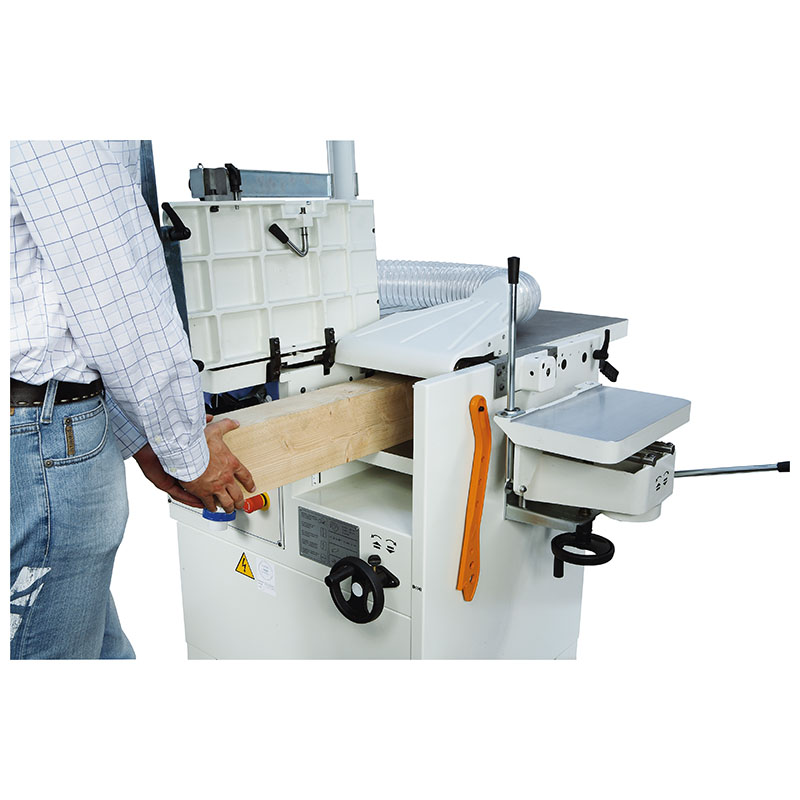

• Thicknessing depth, min. - max.

  3 - 200 mm

• Cutting depth infeed table adjustment

  0 - 3 mm

• Surfacing table length, overall

  1200 mm

• Thicknessing table length

  450 mm

• Cutterblock diameter

  62 mm

• Cutterblock type

  High Speed Steel (HSS)

• Number of knives

  2

• Feed speed(s)

  6 m/min

• Fence tilt

  0 - 45°

• Extraction outlet(s)

  3 x 120 mm

• Motor

  3 x 1.8 kW (2.5 HP)

• Power

  3 phase
