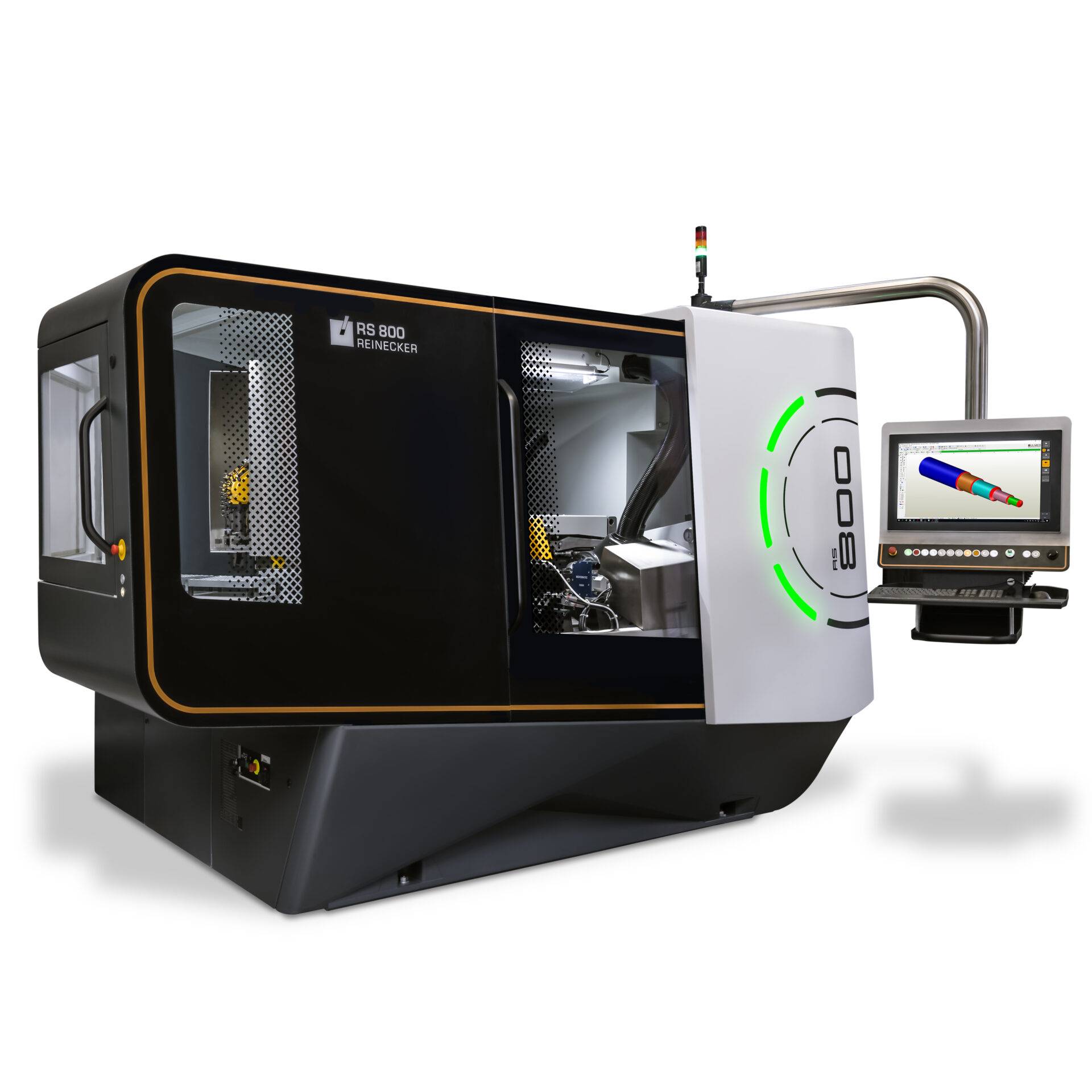

Reinecker RS 800

Product Information

• Features
  • High-precision CNC cylindrical grinding for production environments
  • Designed for larger workpieces and higher batch volumes
  • Rigid machine construction for excellent stability and surface quality
  • Multi-axis CNC control for flexible grinding operations
  • High-performance motorised grinding spindle for demanding materials
  • Suitable for carbide, HSS and hard materials
  • Flexible workpiece clamping options, including between centres

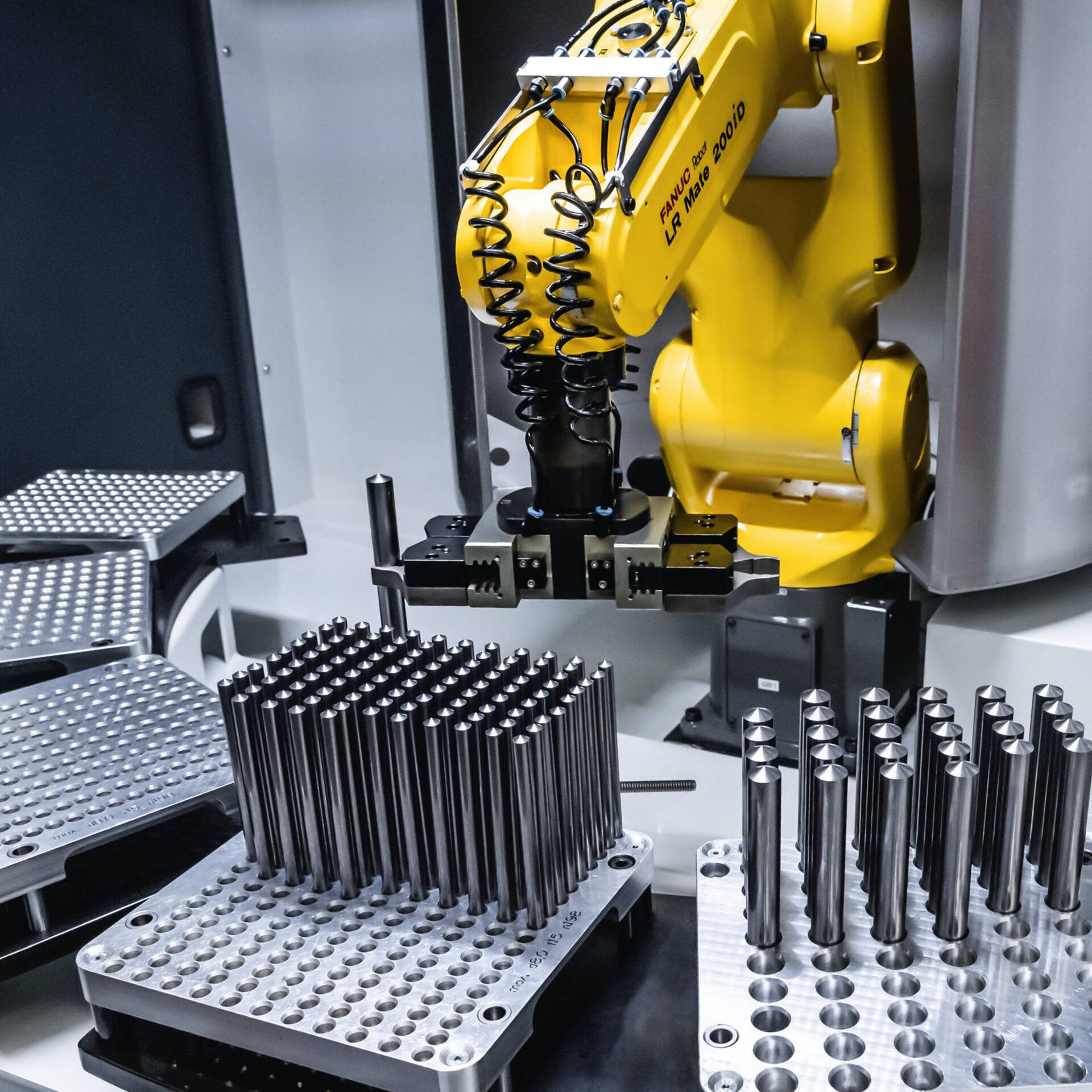

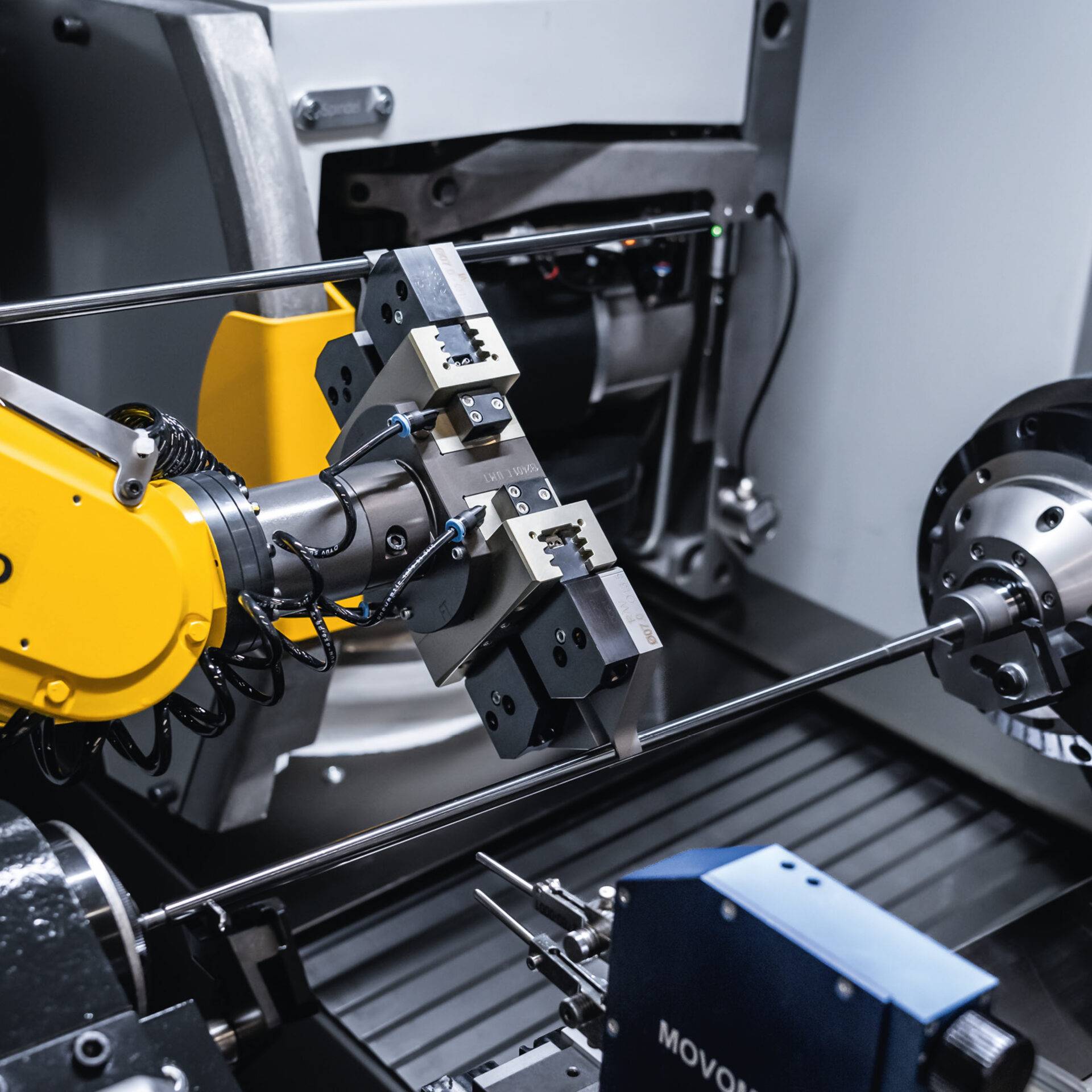

  • Automation-ready for increased productivity and repeatability

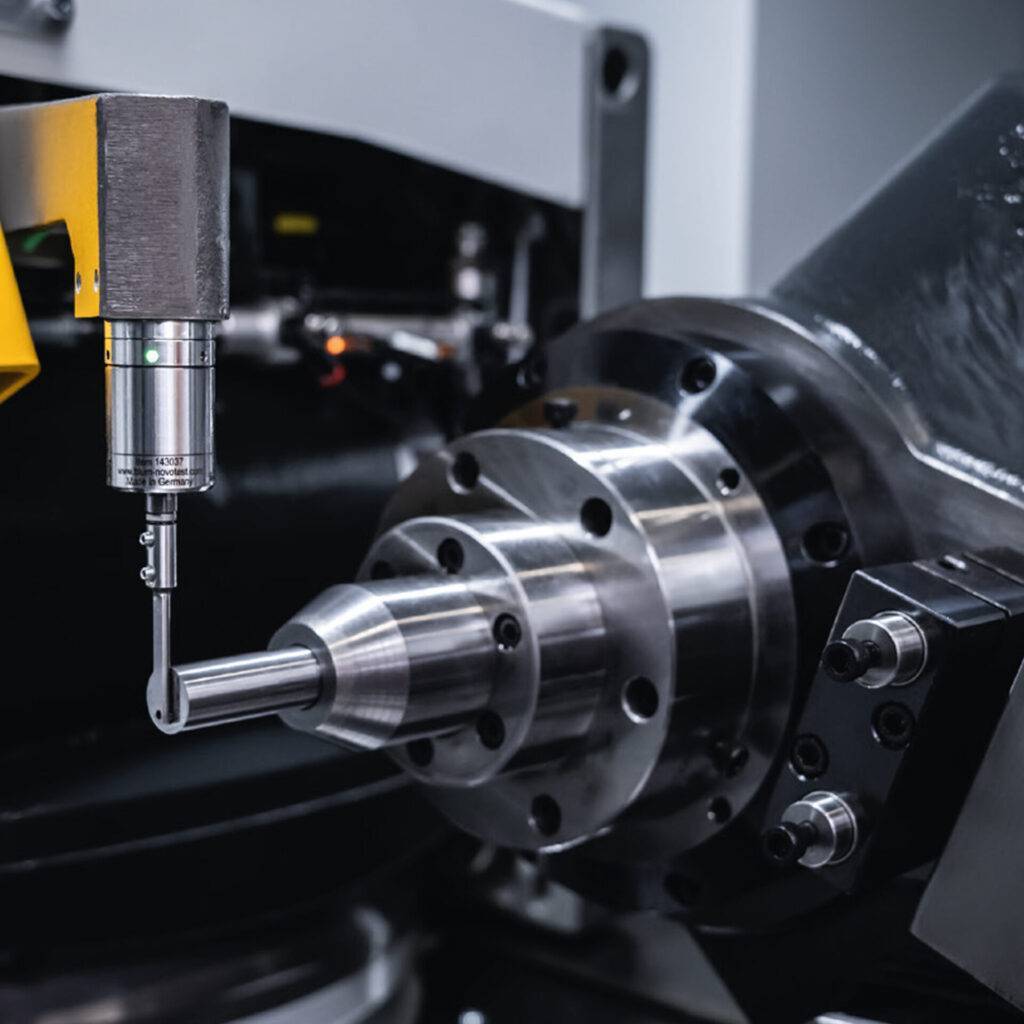

  • Optional in-process measuring systems for quality control
  • Application-specific configuration to match production requirements
• Description

  The Reinecker RS 800 is a high-performance CNC cylindrical grinding machine engineered for production environments requiring maximum accuracy, stability and throughput. Designed to handle larger components and higher batch volumes, the RS 800 combines robust machine construction with advanced CNC control to deliver consistent results over extended operating periods.

  Built around a rigid machine base with high-precision kinematics, the RS 800 is ideally suited to demanding cylindrical grinding applications involving carbide, HSS and hard materials. Its flexible configuration options allow the machine to be tailored for specific workpiece sizes, clamping methods and production workflows.

  With optional automation, in-process measurement and high-power spindle technology, the RS 800 bridges the gap between precision grinding and efficient serial production. As with all Reinecker machines, it is specified to suit the application rather than supplied as a fixed, one-size-fits-all solution.

• Specification
  • Axes 4/ 5-axis CNC
  • Control System NUM FlexiumPro
  • Programming Software NUMROTOplus®
  • Travel of axes (X) 319 mm, (Z) 730 mm
  • Rotation of axes (B) +95° / -195°
  • Resolution (X, Z) 0.0001 mm, (C) 0.001°, (A) 0.001°
  • Rapid travel speed (X, Z) 15/ 30 m/min
• Literature
  • RS 800 product brochure Download
• Important information

  Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
