Kimla BFN Linear Drive

The Kimla BFN Linear machining centre is a machine tool for precision and tool works. It proves useful wherever extremely high positioning precision is required. Instead of the traditional circulating screw used up to now in CNC machines in X Y Z axes, linear drives and measurements system - with the resolution of 1nm and accuracy of 5 micrometres per meter - were employed.

Linear drives transmit the drive force without friction and contact, solely with the use of magnetic field. Thanks to this, there is no return play, irrespective of the machine's age. The drive does not feature wearable parts that could have an effect on the deterioration of milling quality while in operation. In the gantry design of the machine tool with movable table, Kimla company uses solutions that are proved successful and developed for over 20 years.

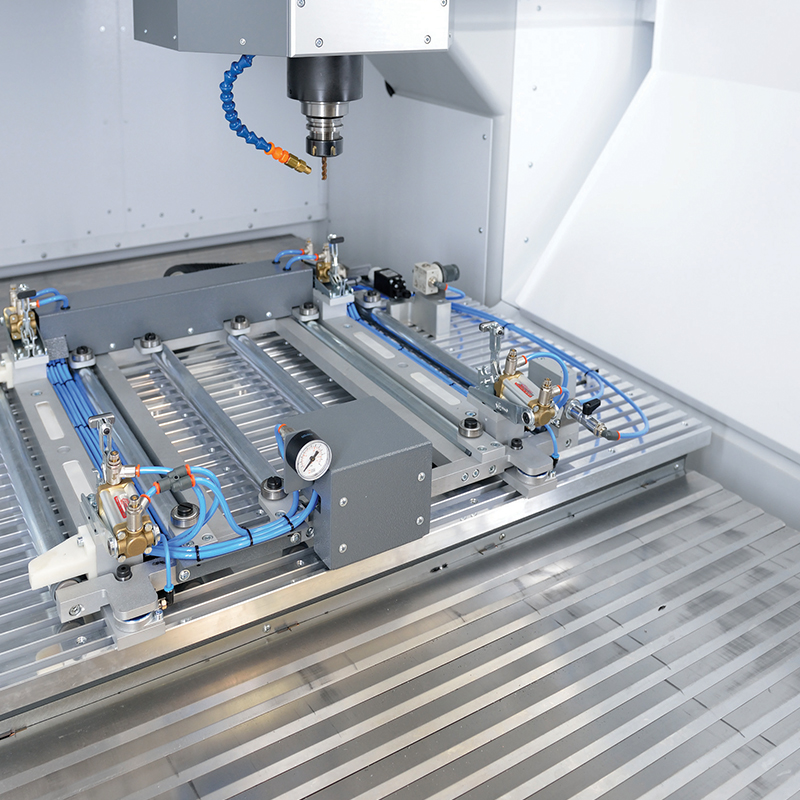

HSM Linear machining centre is offered with customized working range, as per customer's needs. The standard feature of the device is T-slot work table, sensor of the tool length, oil mist cooling, high-speed spindle of 7-20kW of power and automatic tool changing with the revolving storage. These solutions provide for highly efficient and precise machining.

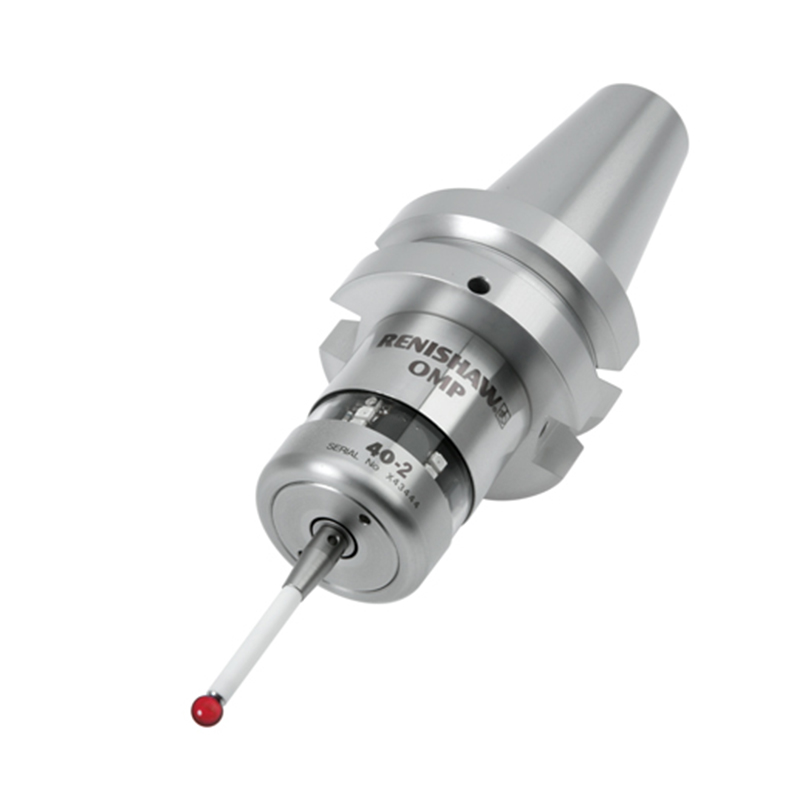

Technological functionality of the machine may be extended through utilisation of additional equipment, e.g. 3D scanning head (for scanning of 2D outlines of 3D object, support for precision basing), rotary axis with poppet-head with full simultaneous interpolation of all axes.

HSM Linear machining centre is designed to machine material, e.g. steel, aluminium, copper, brass, plastics, composite materials, etc.
