iVision GC1 45 WD EX

Product Information

• Features
  • ATEX Zone 22 compliant for hazardous dust environments

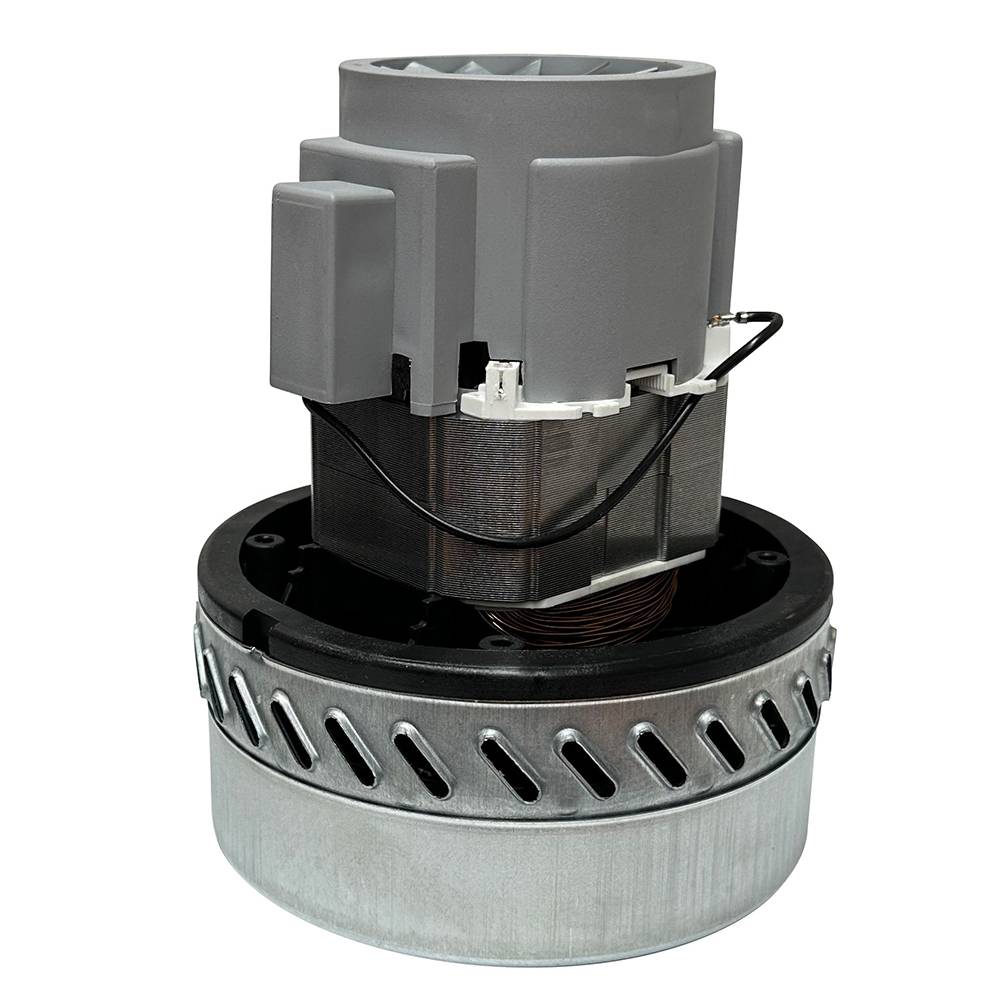

  • Brushless motor for spark-free operation and low maintenance

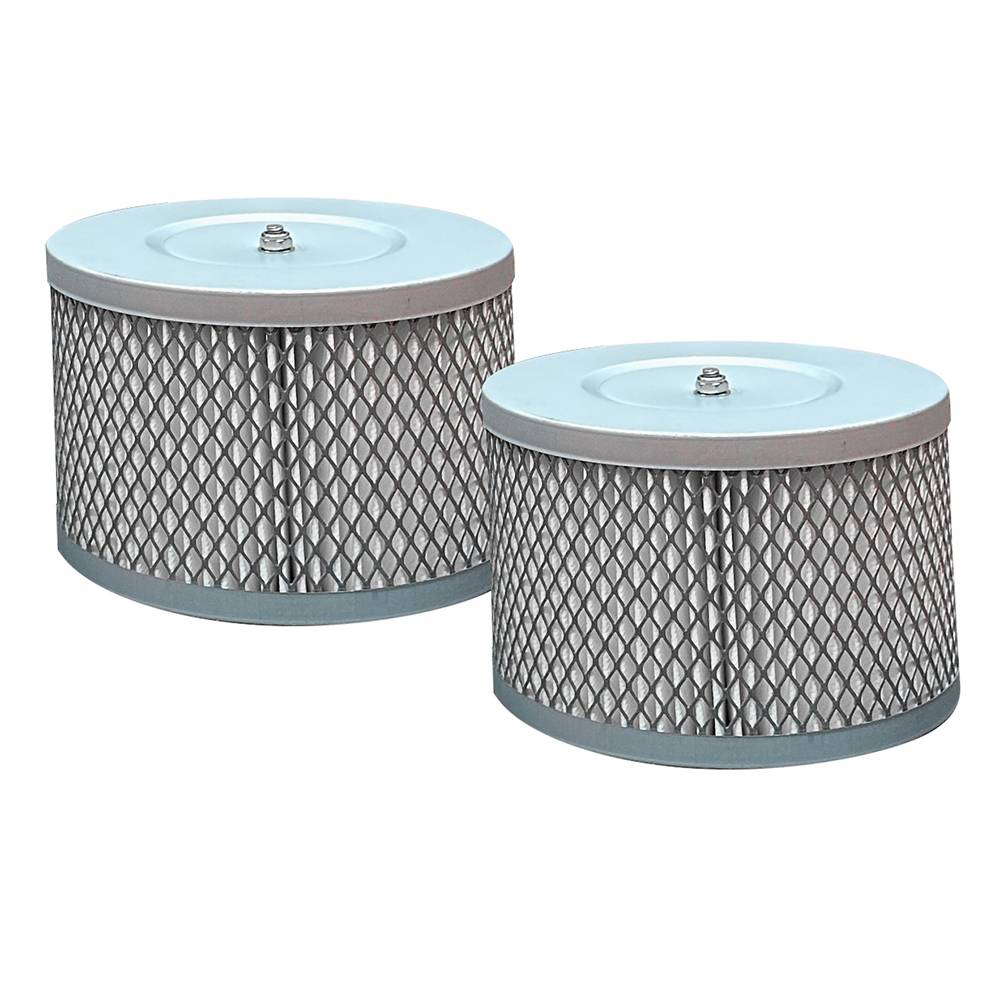

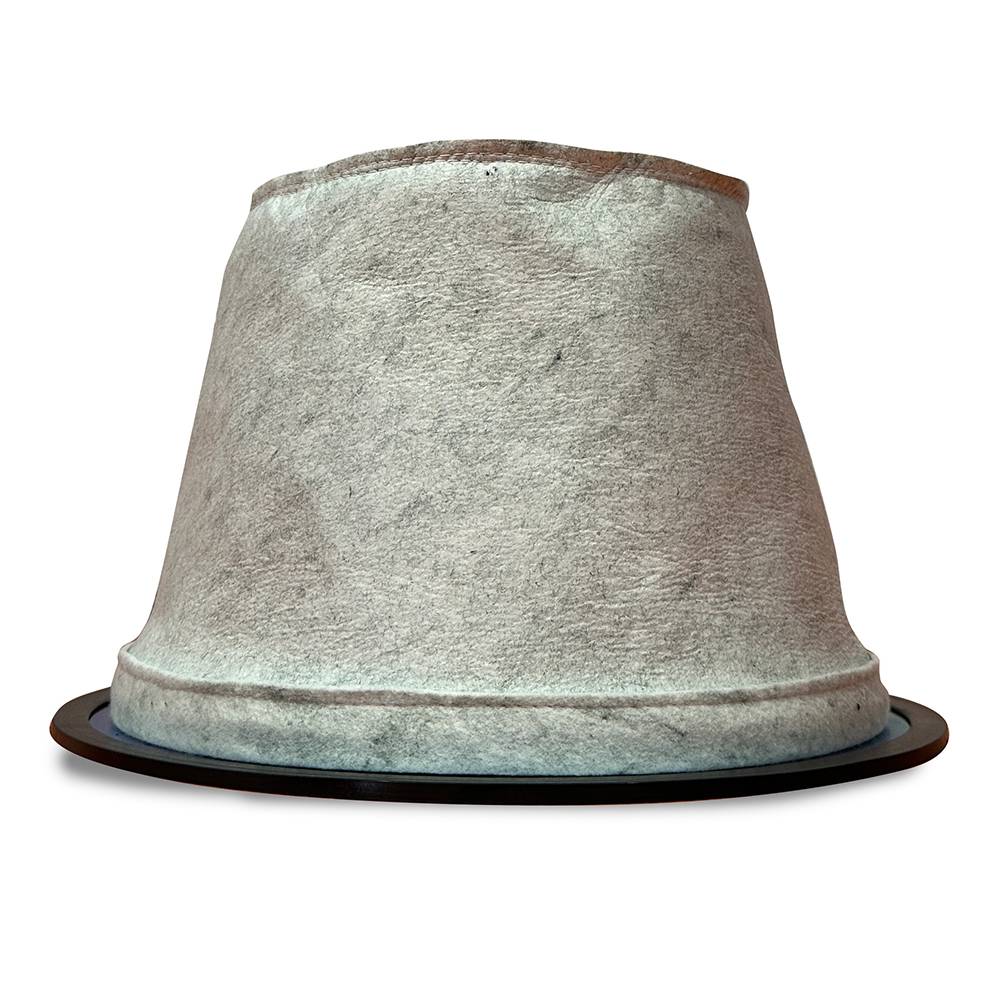

  • Dual filtration system with antistatic filter bag and cartridges
  • IP65-rated explosion-proof electrical components
  • Compact and manoeuvrable design
• Description

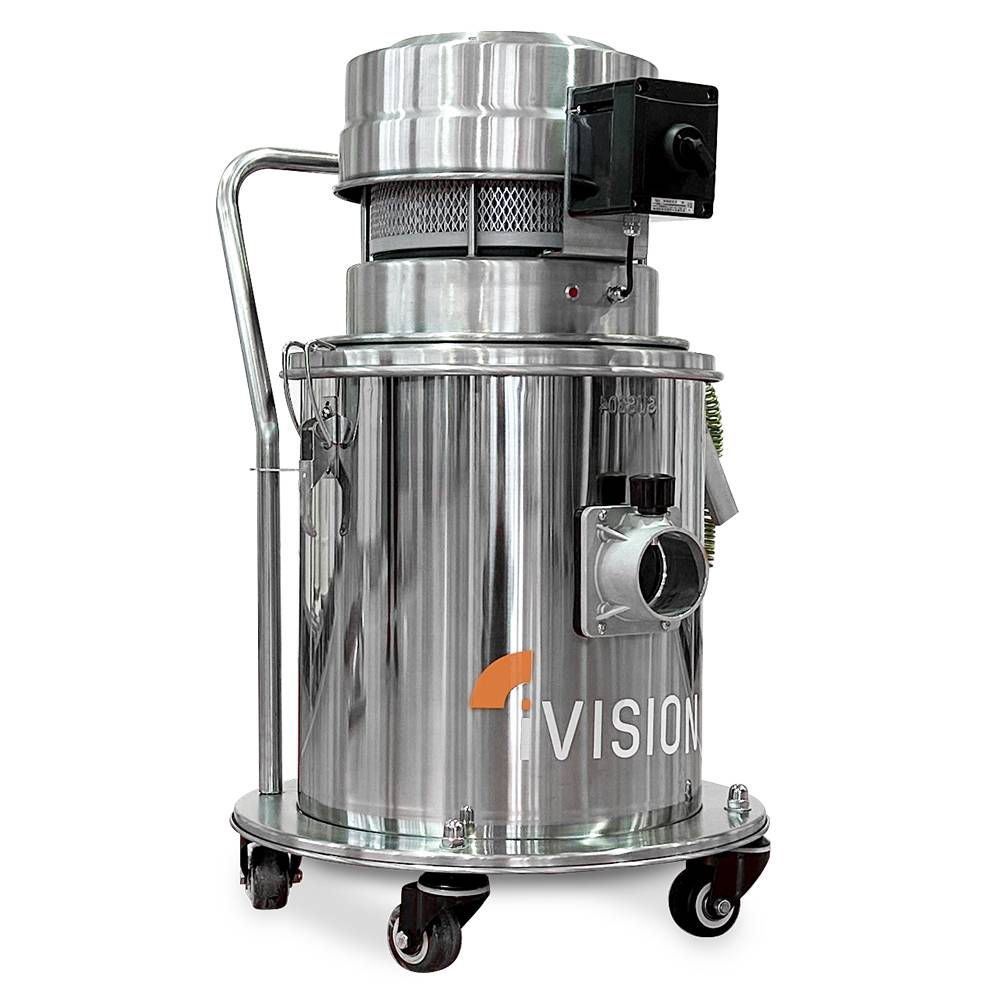

  The iVision GC1 45 WD EX is a compact ATEX-certified industrial vacuum cleaner designed for safe operation in environments where explosive dust is present. Engineered for Zone 22 applications, this model combines a brushless motor with antistatic components to eliminate ignition risks while maintaining reliable performance.

  Its dual-stage filtration system ensures safe handling of fine and hazardous dust, while the compact design allows it to be easily integrated into tight or restricted working areas. Built for compliance without compromise, the GC1 45 WD EX delivers dependable cleaning performance in critical environments.

  Applications

  • Pharmaceutical manufacturing
  • Food processing environments
  • Chemical production facilities
  • Additive manufacturing (3D printing)
  • Any ATEX Zone 22 classified areas
• Specification
  • Maximum air flow 180 m3/ h
  • Maximum pressure 230 mbar
  • Inlet diameter 70 mm
  • Noise level (EN ISO 3744) 75 dB(A)
  • Power cord length 8 m
  • Power 1.2 kW
  • Power supply 220/ 50
  • Filter type Antistatic filter bag + 2 cartridges
  • Filter surface 20000 + 25000 cm2
  • Filtration media M-Class (IEC 60335-2-69)
  • Cleaning system NA
  • Discharge system Tank accumulation
  • Size 520 x 550 x 820 mm
  • Weight 25 Kg
  • Container capacity 45 lt
• Literature
  • iVision General Vacuum Cleaning Catalogue (EN rev 02) Download
• Important information

  Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
