Reinecker WZS 8

Product Information

• Features
  • Precision 5-axis CNC tool grinding with industry-leading control
  • NUM FlexiumPro CNC with NUMROTOplus® for 3D programming & simulation
  • Direct drive axes for ultra-accurate positioning and repeatability

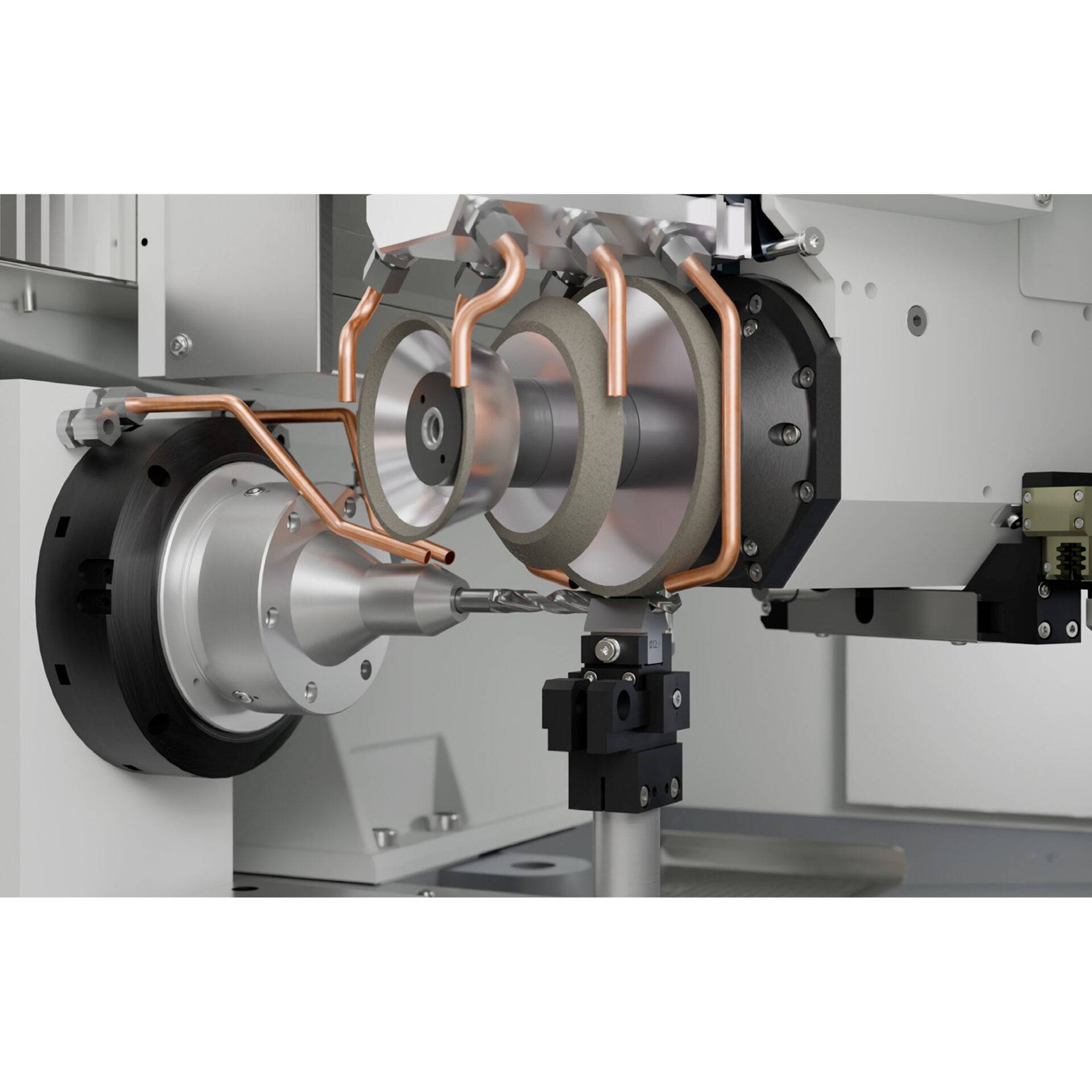

  • High-performance grinding spindle for carbide and HSS applications
  • Configurable wheel magazine with up to 8 stations
  • Flexible workpiece clamping systems to suit varied tool geometries
  • Automation ready with pick-up, robot and pallet handling options
  • In-process measurement probes for wheel and tool verification
  • Rigid polymer concrete base for vibration damping and thermal stability
  • Compact footprint ideal for toolrooms and specialist environments
  • Tailored configuration — machine built around application needs
• Description

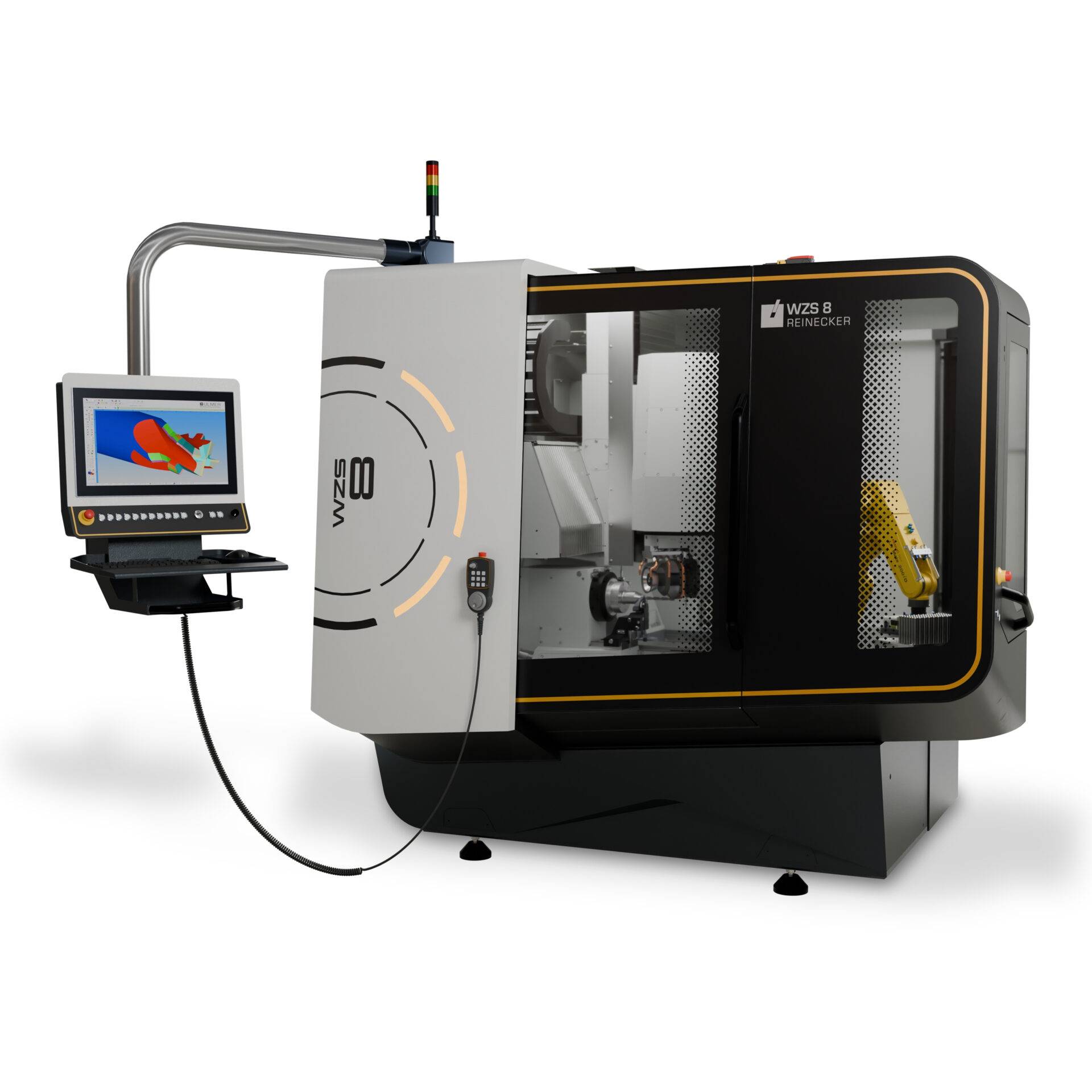

  The Reinecker WZS 8 is a compact, high-precision CNC tool grinding machine designed for the manufacture and resharpening of simple to complex cutting tools up to 32 mm diameter. Its flexible configuration and small footprint make it ideal for toolrooms, specialist manufacturers and production environments requiring adaptability without compromising accuracy.

  Engineered around a rigid polymer concrete machine bed and equipped with direct drive technology, the WZS 8 delivers excellent vibration damping, thermal stability and repeatable grinding results – even for demanding tool geometries.

  Typical Applications

  • Manufacturing and resharpening of solid carbide and HSS tools
  • End mills, drills and special tools
  • Small to medium batch production
  • Prototype and development work

  Key Capabilities

  • 5-axis CNC tool grinding with high-resolution measuring systems close to the grinding point
  • Direct drives in linear axes for maximum positioning accuracy
  • High-performance grinding spindle with synchronous technology
  • NUM FlexiumPro CNC control with integrated safety architecture
  • NUMROTOplus® programming software with 3D graphics, simulation and collision detection

  Configuration & Automation Options

  The WZS 8 can be configured to match specific production requirements, including:

  • Grinding wheel magazine with up to 8 stations

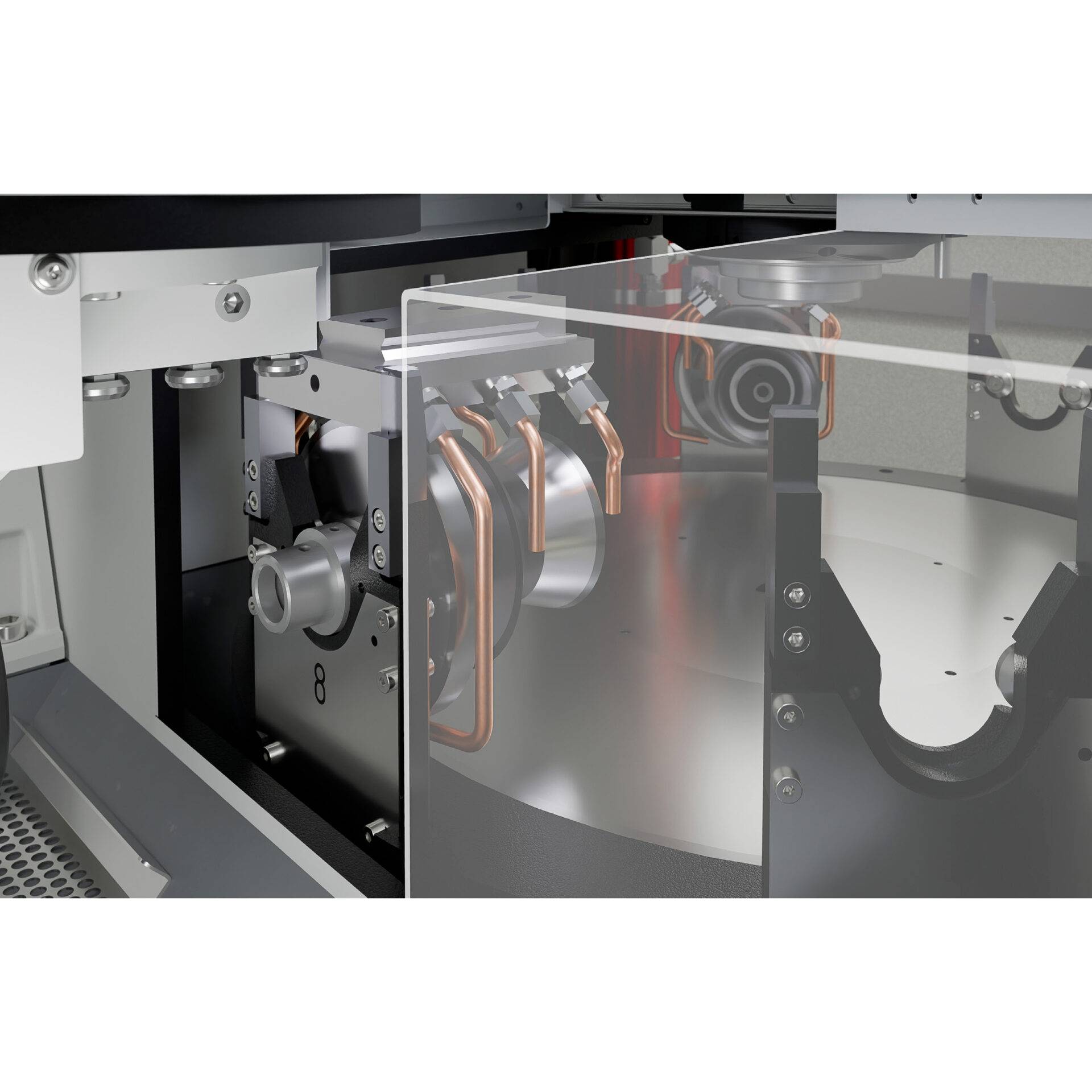

  • Automatic wheel changer, with combined wheel package and coolant manifold
  • Variable workpiece clamping systems, including collet, hydraulic and multi-range chucks
  • Pick-up automation with chain magazine for small batch sizes

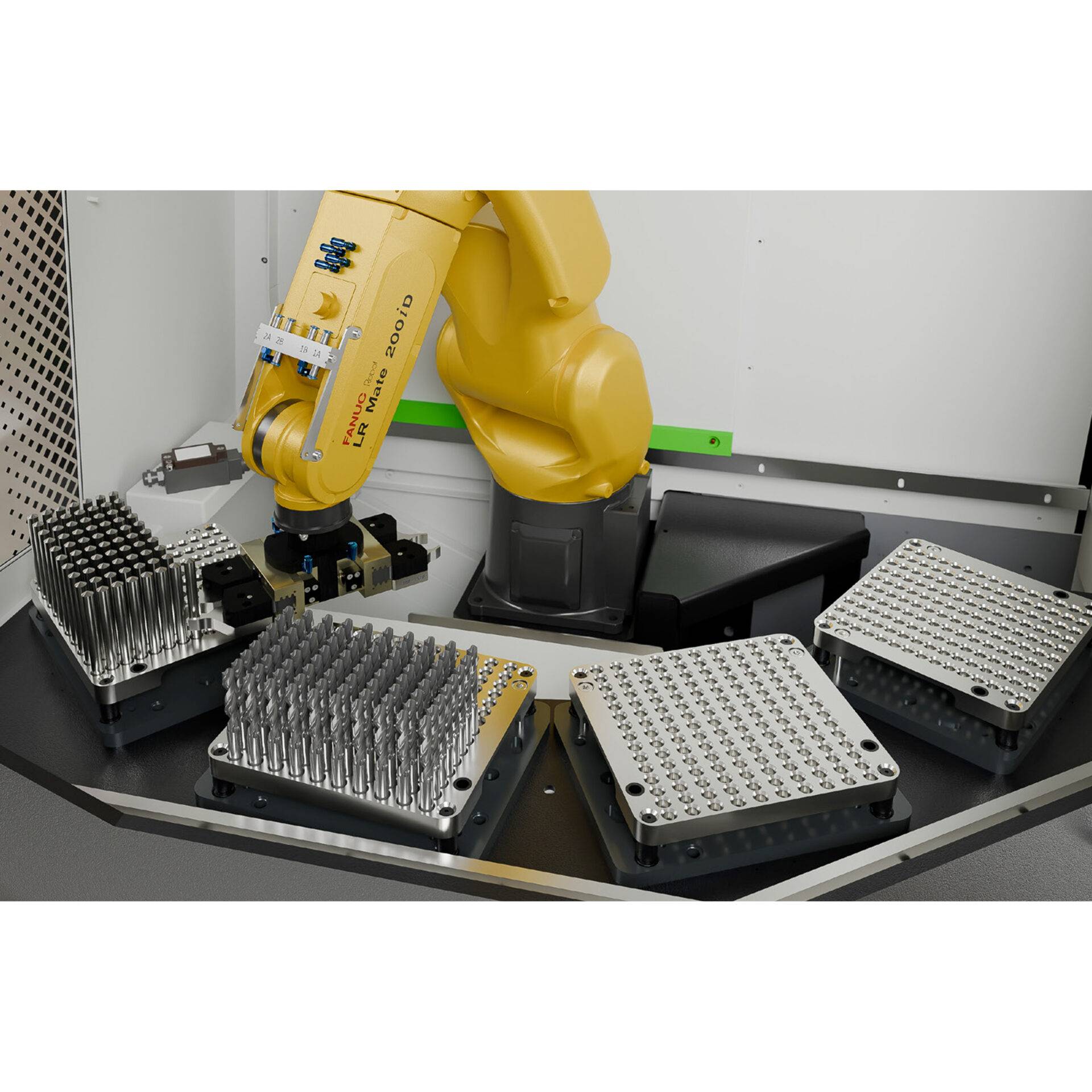

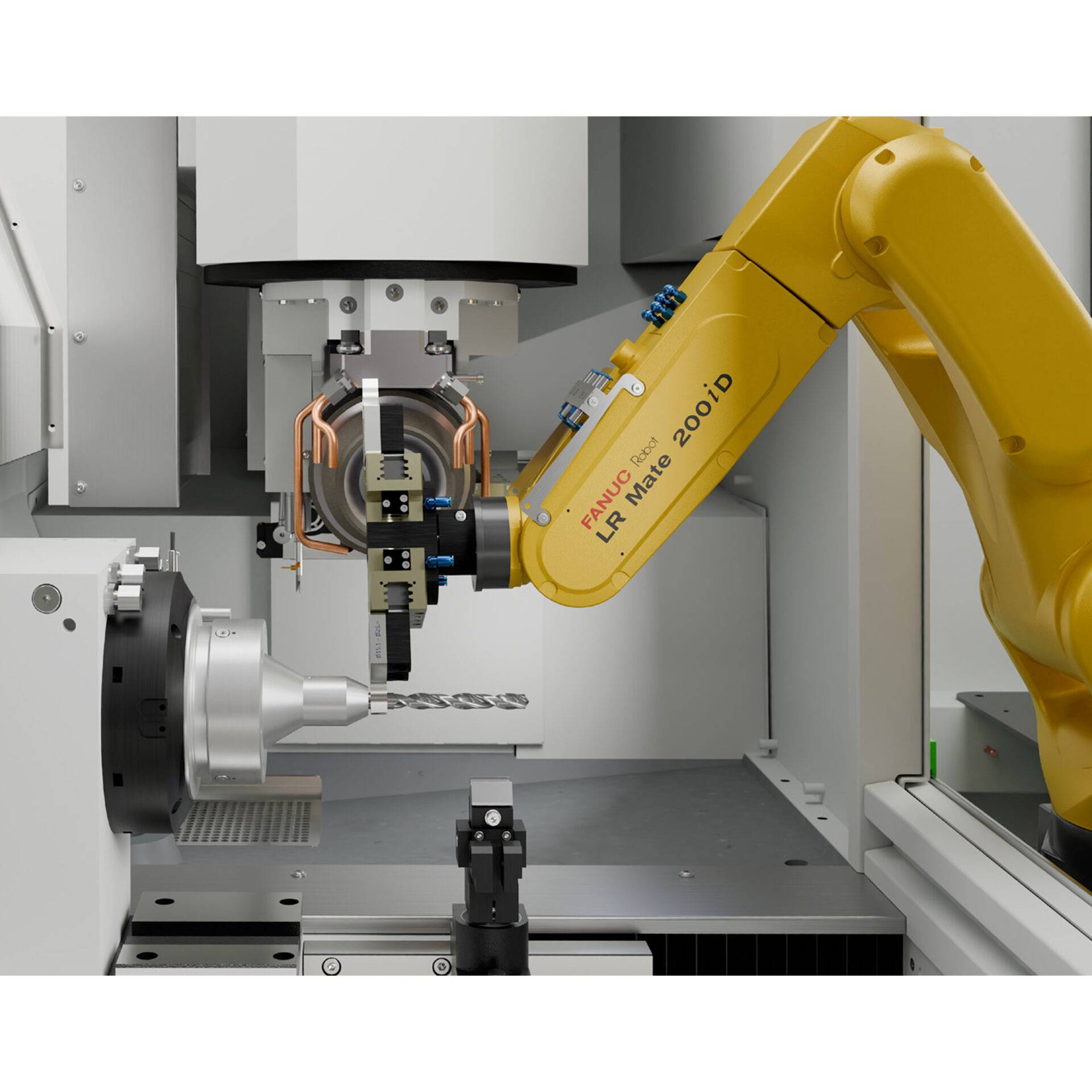

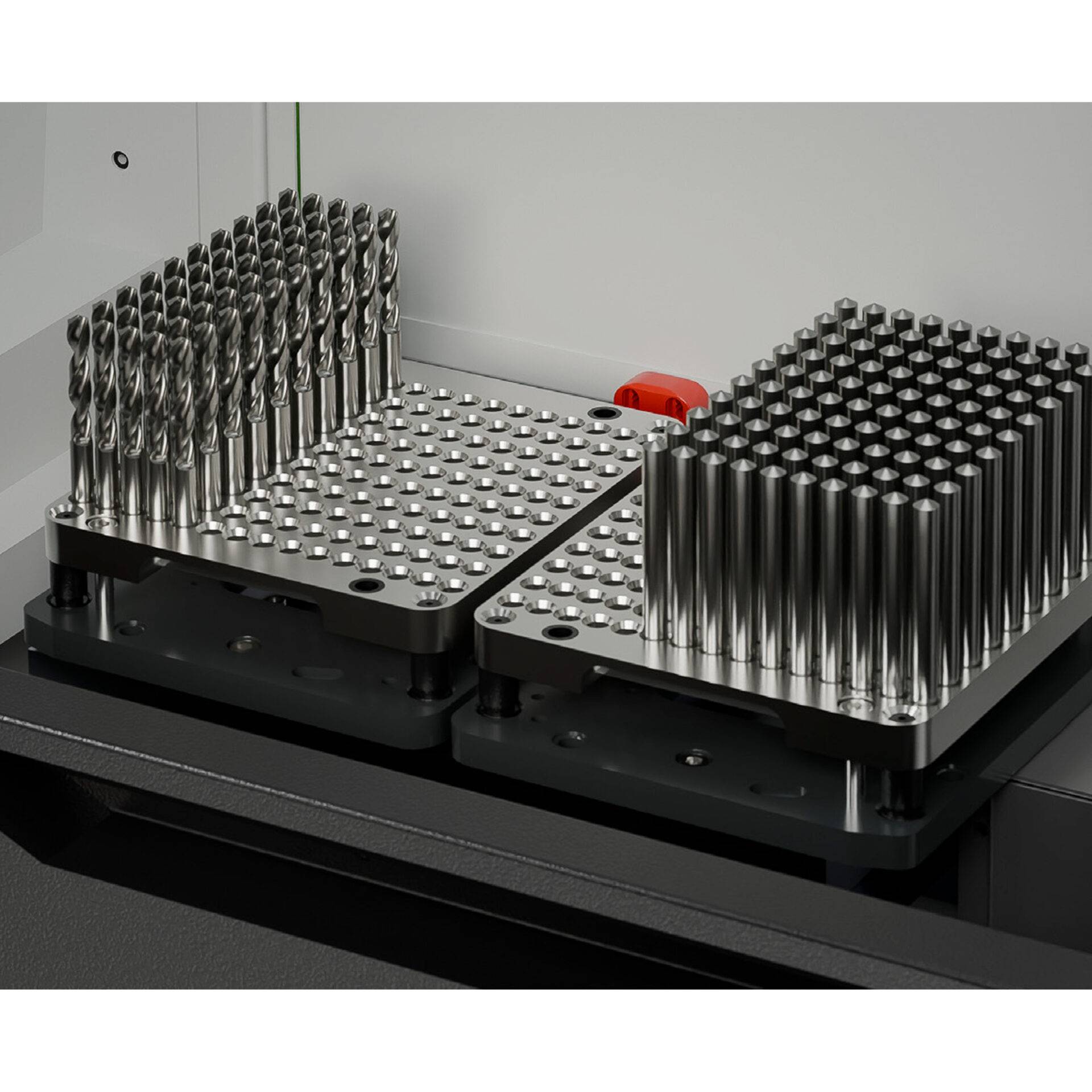

  • Robot automation with pallet systems for increased autonomy and throughput
  • In-process measuring probes for grinding wheel measurement and process control
  • Steady rests and support systems for slender tools

  Designed for Efficiency and Reliability

  • Polymer concrete machine base for rigidity, vibration damping and efficient swarf removal
  • Ergonomic machine layout for easy access during maintenance and service
  • Integrated operating status indicators for clear machine feedback
  • Compact footprint with a large working envelope

  Why Buy Reinecker Through Daltons Wadkin

  As the UK and Ireland partner for Reinecker, Daltons Wadkin provides:

  • Application-focused consultation to define the correct machine configuration
  • Project management from specification through to installation
  • Ongoing technical support and after-sales expertise

  Discuss Your Application

  Reinecker CNC tool grinding machines are configured to suit the application, not sold as standard packages. To discuss your tooling requirements or explore configuration options for the WZS 8, contact Daltons Wadkin to speak with a specialist.

• Specification
  • Axes 5-axis CNC
  • Control System NUM FlexiumPro
  • Programming Software NUMROTOplus®
  • Travel of axes (X) 750 mm, (Y) 250 mm, (Z) 600 mm
  • Rotation of axes (B) +20° / -200°, (C) n x 360°
  • Resolution (X, Y, Z) 0.0001 mm, (B, C) 0.0001°
  • Rapid travel speed (X, Y, Z) 30/ 15/ 30 m/min
