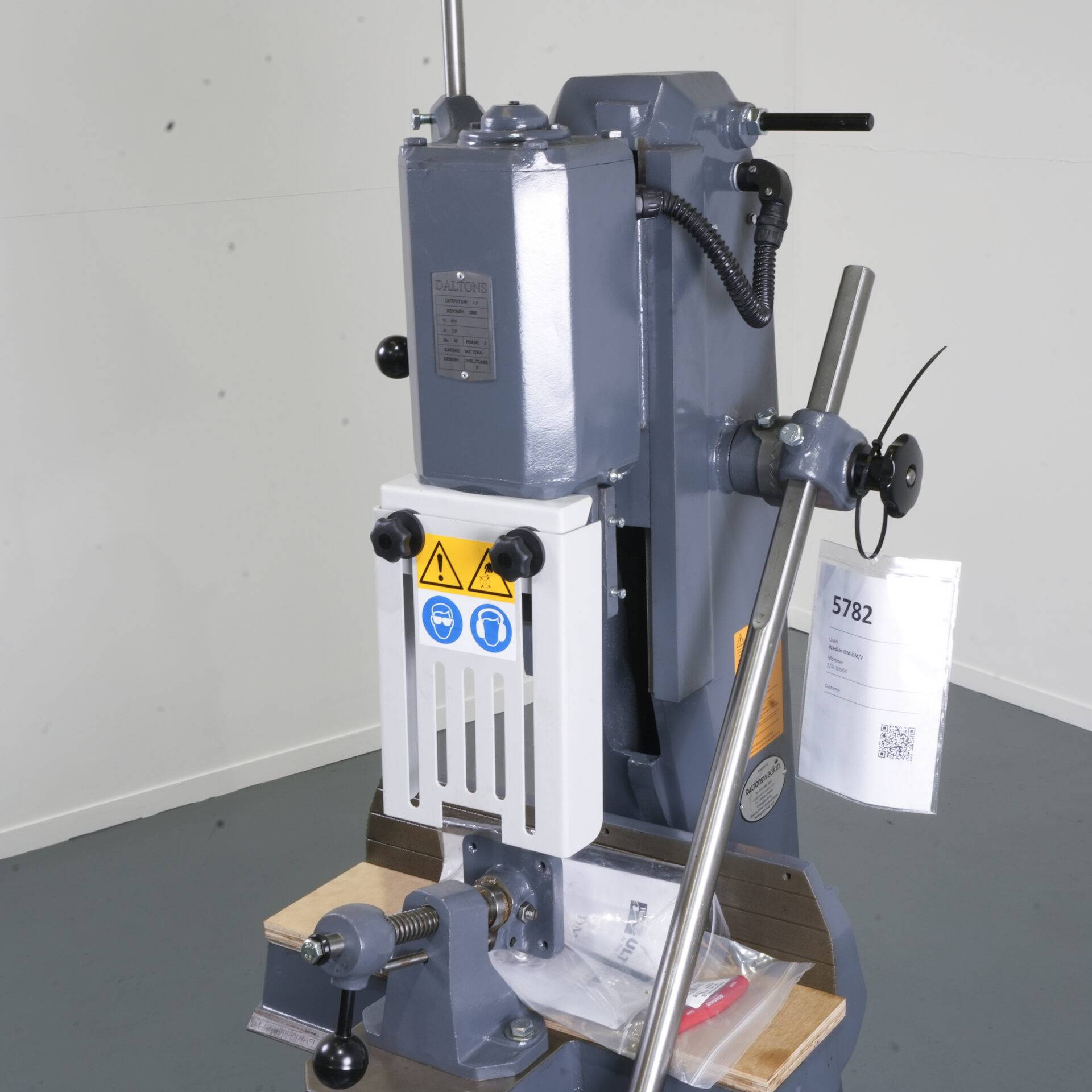

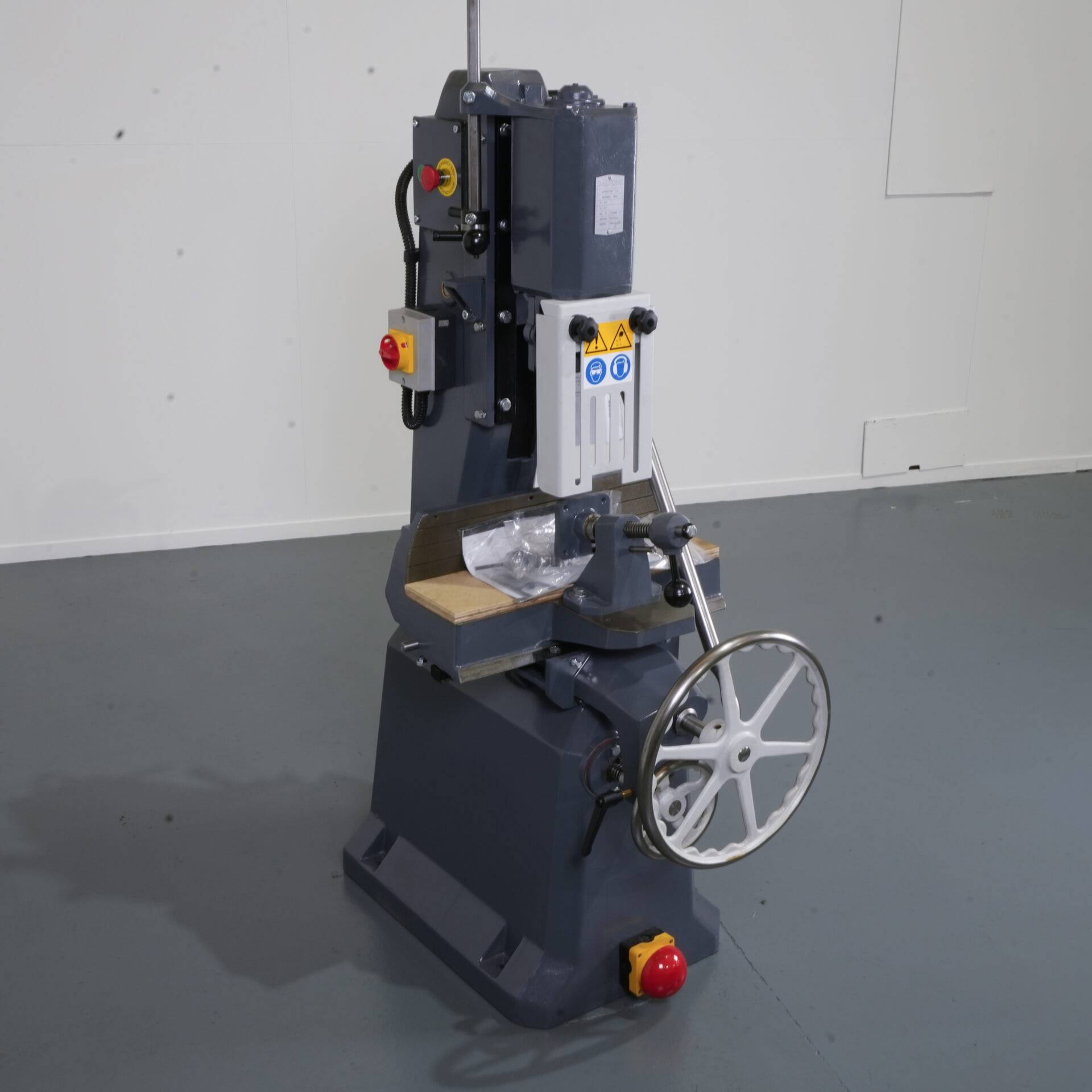

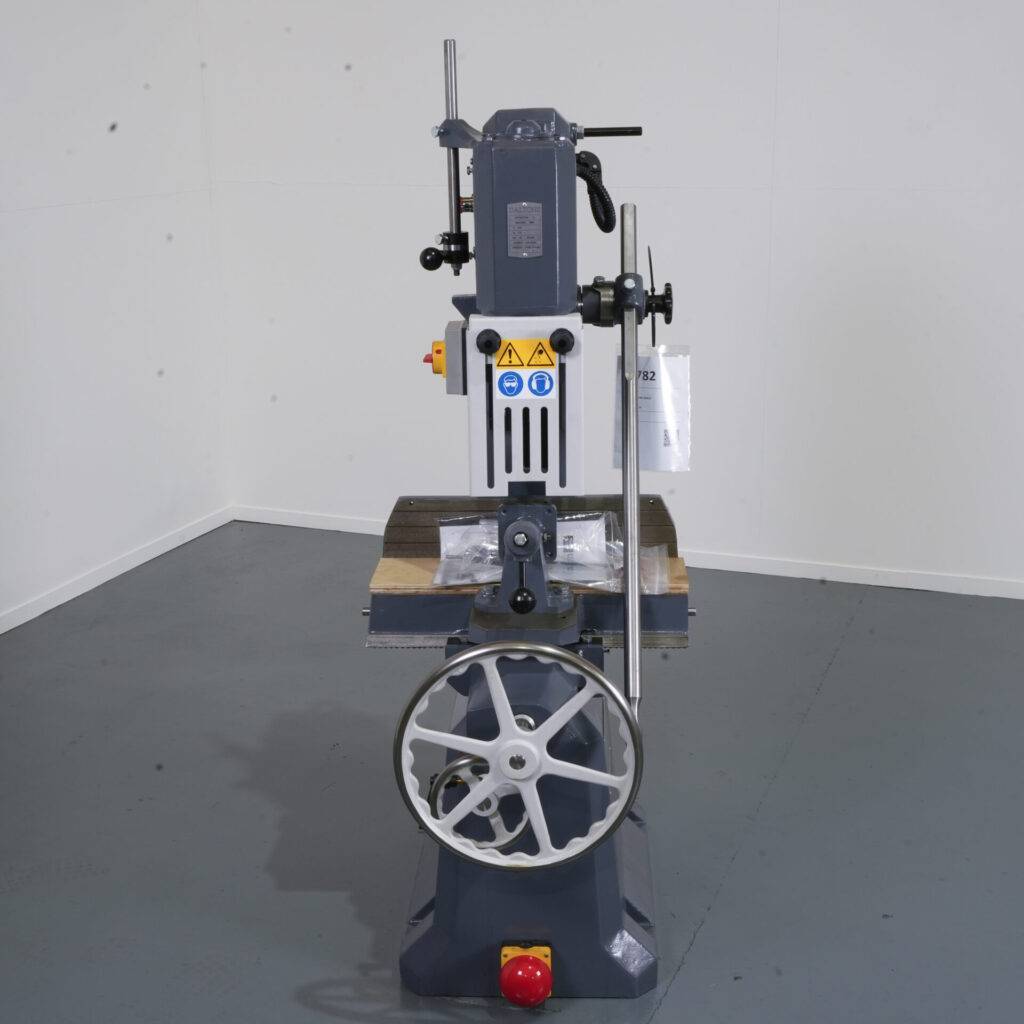

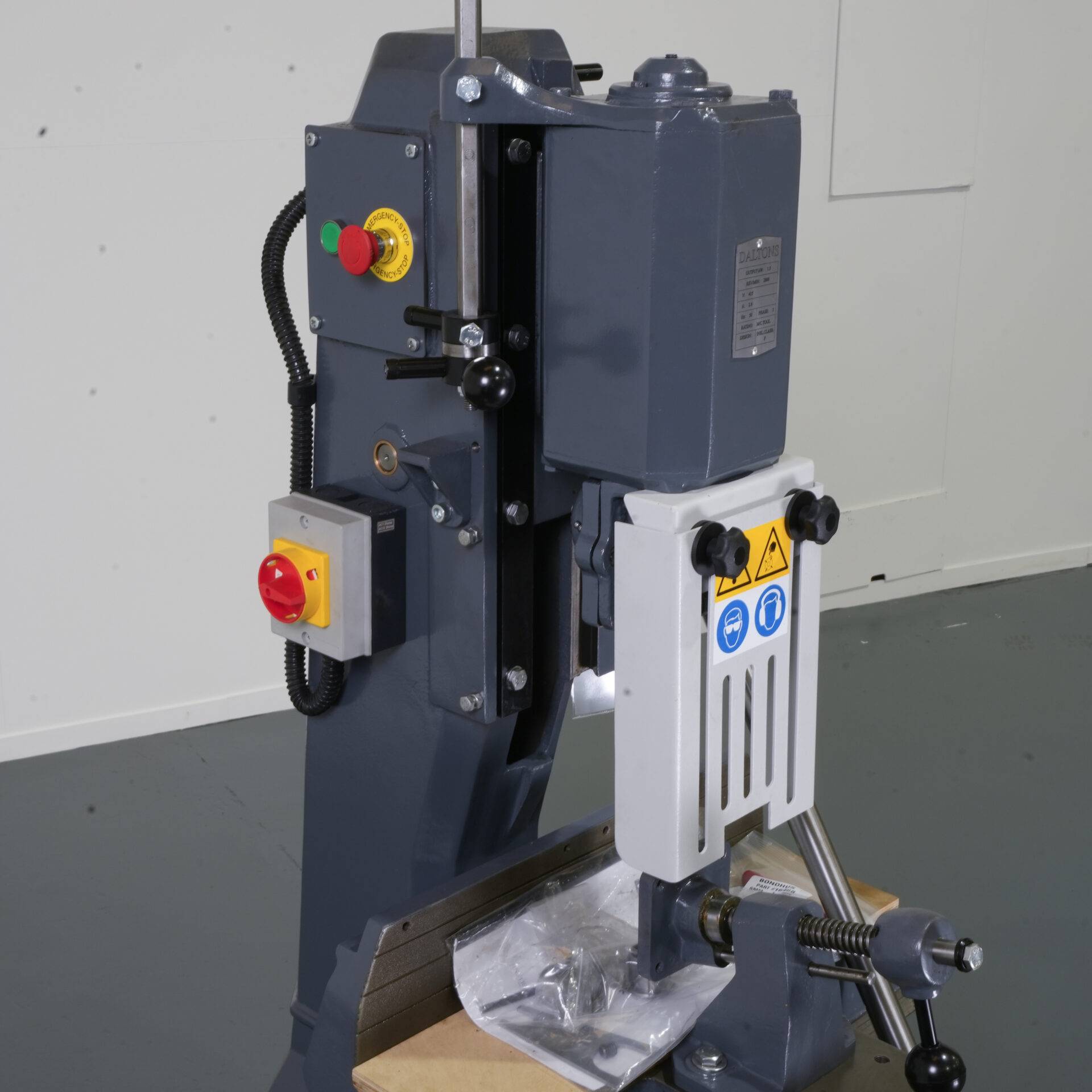

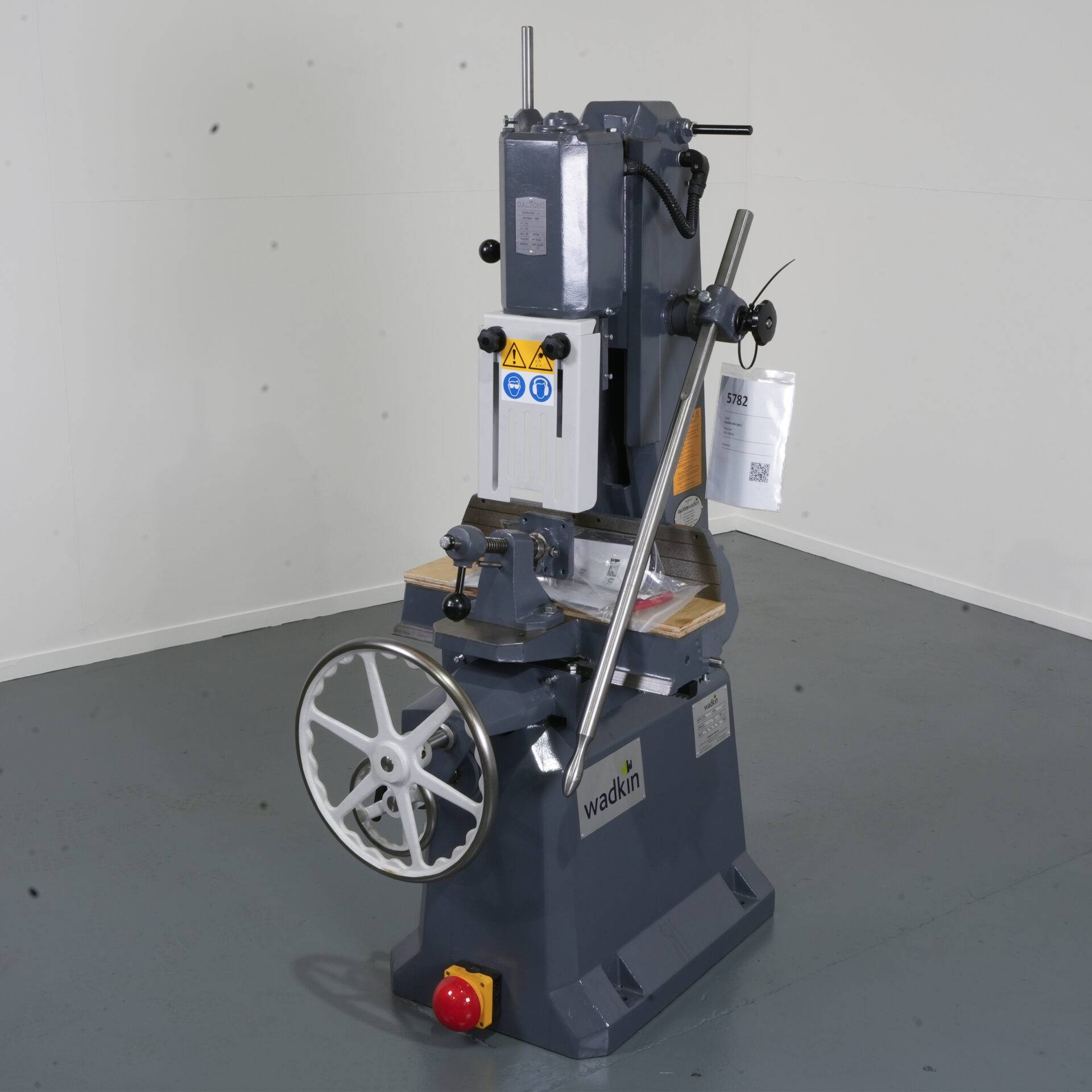

Wadkin DM/V

Product Information

• Features
  • Vibratory head (reduces effort by 66%)
  • Heavy duty cast construction
  • Timber clamp
  • Adjustable depth stop
  • Lateral turret stop arrangement
  • Optional low voltage light
• Description

  The Wadkin DM/V is a heavy-duty, industrial hollow chisel mortiser designed for high-precision, repeatable mortising in demanding woodworking environments. Built to Wadkin’s renowned engineering standards, this machine offers exceptional durability, accuracy and long-term reliability.

  At the heart of the DM/V is its vibratory mortising head, a unique feature that significantly reduces cutting effort while improving productivity. By introducing controlled vibration to the chisel, the machine reduces operator fatigue and allows mortises to be produced more efficiently—cutting effort by over 66% compared to conventional mortisers .

  The machine is equipped with a large, precision-machined work table with smooth longitudinal and lateral movement, ensuring accurate positioning and ease of operation. A robust clamping system securely holds material in place, while the adjustable stops and turret system allow for fast, repeatable mortising operations—ideal for batch production work.

  Designed for versatility, the DM/V can also be adapted for boring operations, making it a flexible addition to any workshop or production facility.

  Fully Serviced to Daltons Premium Standard

  This machine has been prepared in accordance with our Category B – Premium Service, ensuring it is ready for immediate use:

  • Fully tested electrically and mechanically
  • Checked for completeness and compliance with specification
  • Safety systems reviewed and updated in line with PUWER regulations
  • Electrical components inspected and replaced where required
  • Drives, guides and settings adjusted and serviced
  • Machine fully cleaned and prepared for operation
  • Paintwork redone where necessary for a professional finish
  • Supplied with relevant tooling and operating guidance
  • All serviced machines include a 6-month warranty for complete peace of mind

  Typical Applications;

  • Joinery and furniture manufacturing
  • Door and window production
  • Timber frame construction
  • General woodworking workshops requiring accurate mortising
• Specification
  • Timber capacity 250 x 200mm
  • Maximum chisel capacity 25mm (1")
  • Longitudinal movement of table 480mm
  • Lateral movement of table 100mm
  • Table size 560 x 150mm
  • Motor 1.5kW (2HP)
  • Power 3 Phase
