SCM Startech CN Plus

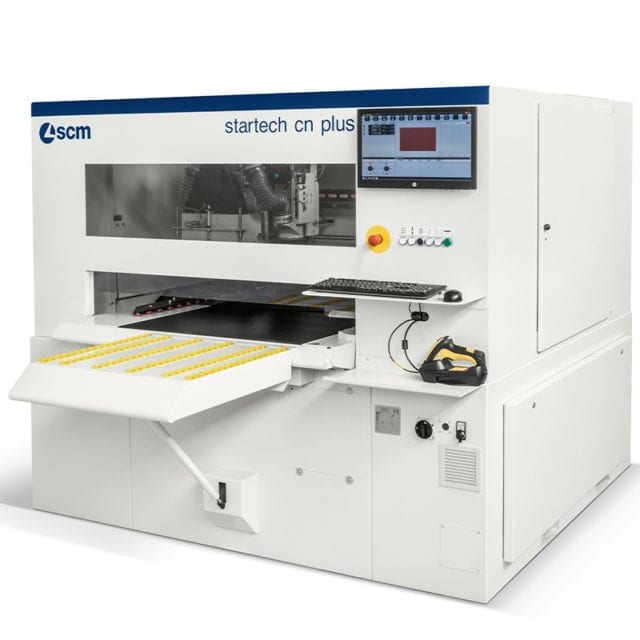

The SCM Startech CN Plus is a numerically controlled drilling and grooving centre, designed for small to medium woodworking manufacturers but also for larger companies that produce customised products, with in house prototype development departments. As standard the machine is equipped with 8 independent vertical spindles, 6 horizontal spindles and the blade in "X". The machine can also be specified with an optional 5.5kW router head.

The machine is fully automatic. Thanks to the automatic side alignment device the panel is loaded into the machine and recovered at the end of the boring-milling program, without any other intervention required by the operator.

Featuring SCM’s integrated "Maestro" software, the Startech CN Plus allows you to easily create projects and geometrical drawings that are automatically converted into drilling-routing programs for the machine. With a suitable postprocessor, third party CAD/ CAM programs can also be imported.

The SCM Startech CN Plus can be specified with a choice of drilling units and a router head.

F14L

• no. 8 independent vertical spindles (4 right and 4 left)


• attachment for bits 10mm diameter


• centre to centre distance between spindles: 32 mm


• no. 6 horizontal drilling heads, 2 + 2 along X (10mm attachment for bits), 1 + 1 in Y (10mm attachment for bits)


• rotation speed: 4.200 rpm


• no.1 integrated blade along X axis (125 mm max. diameter


• blade rotation speed: 5.500 rpm


• 2,2 kW motor power


• 60mm on off pneumatical stroke on vertical spindles


• 75 mm on off pneumatical stroke on horizontal spindles

F23L

• no. 13 independent vertical spindles (6 right and 7 left)


• attachment for bits 10mm diameter


• centre to centre distance between spindles: 32 mm


• no. 10 horizontal drilling heads, 3 + 3 along X (10mm attachment for bits), 2 + 2 in Y


• bits rotation speed: 4.200 rpm


• no.1 integrated blade along X axis (125 mm max. diameter


• blade rotation speed: 5.500 rpm


• 2,2 kW motor power


• 60mm on off pneumatical stroke on vertical spindles


• 75 mm on off pneumatical stroke on horizontal spindles

Router head

• 5,5kW electro spindle


• vertically positioned with respect to the worktable, able to carry out generic routings in any direction.


• 5,5kW (7,5Hp) motor power 18.000rpm max


• connection ER32 collet for cylindrical shank tool


• locking nut


• 2 ÷ 20 mm tool diameter


• 80mm exhaust outlet diameter


• 540m3/h exhaust air speed


• 30m/sec exhaust air speed 30mt/sec


• electrospindle cooling by coaxial airflow

• it is not possible to route the external side of the panel, where the mobile clamp is positioned


• 35mm minimum distance between the tool and the external panel side (clamp side) it is not possible to remove som e panel parts, but it is necessary to leave temporary joints or grind the parts to be removed


• it is possible to use only tools that can rotate at 18.000 rpm speed
