SCM Nova SI 4S

Product Information

• Features
  • Compact sliding carriage configuration optimised for smaller workshop layouts

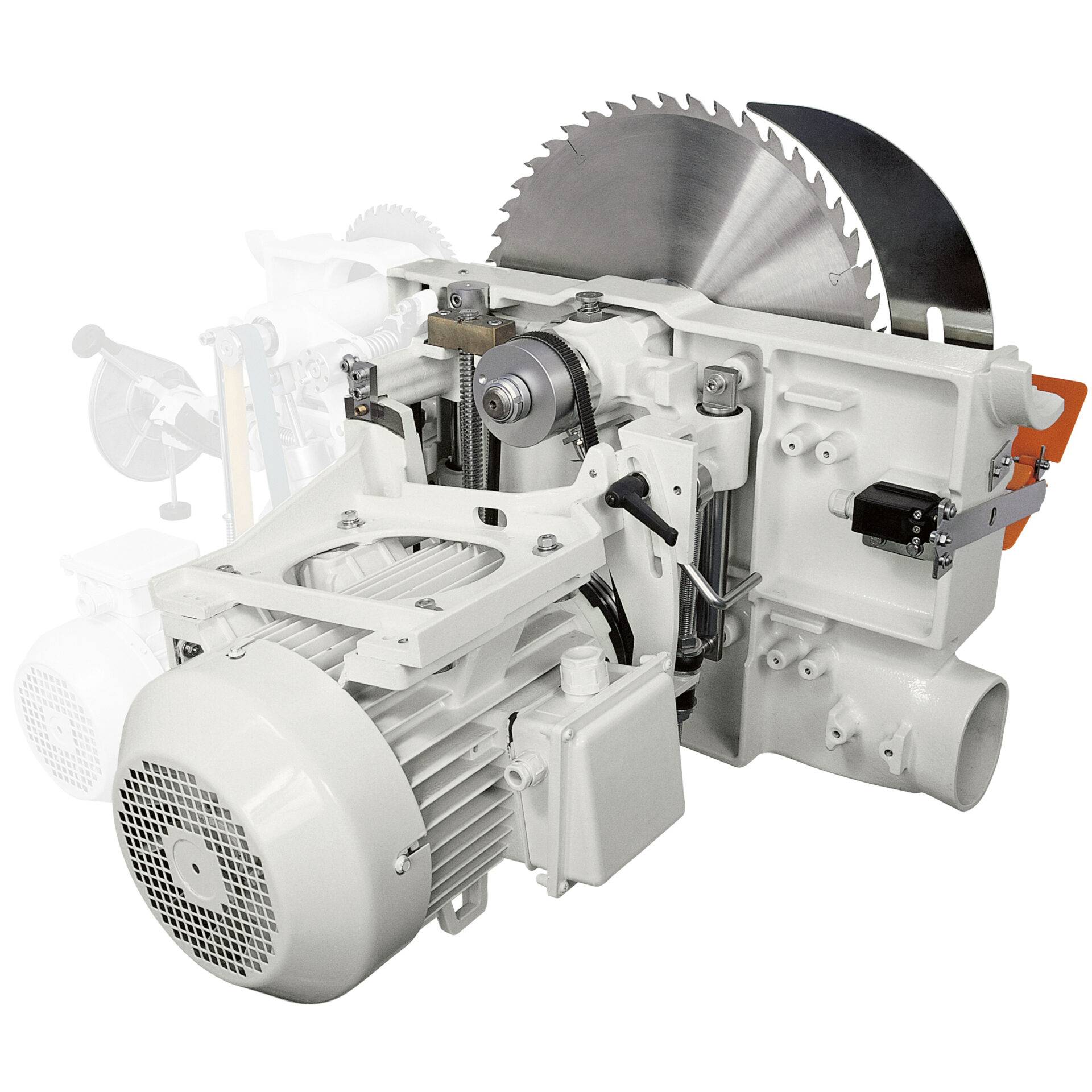

  • Rigid cast-iron saw unit with dovetail lift system for accuracy and stability

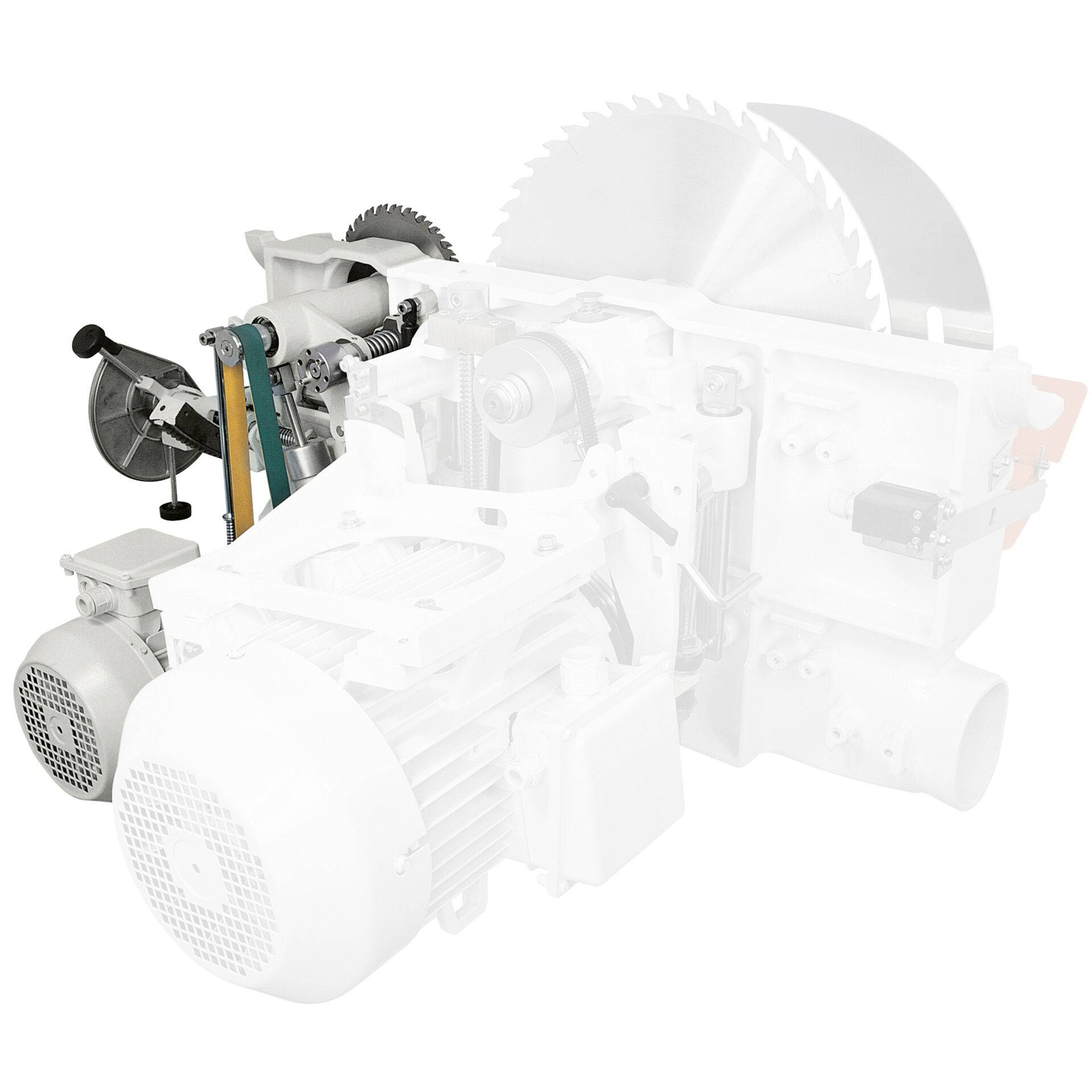

  • Optional scoring blade unit
  • Tilting main blade (90°–46°) for versatile cutting operations

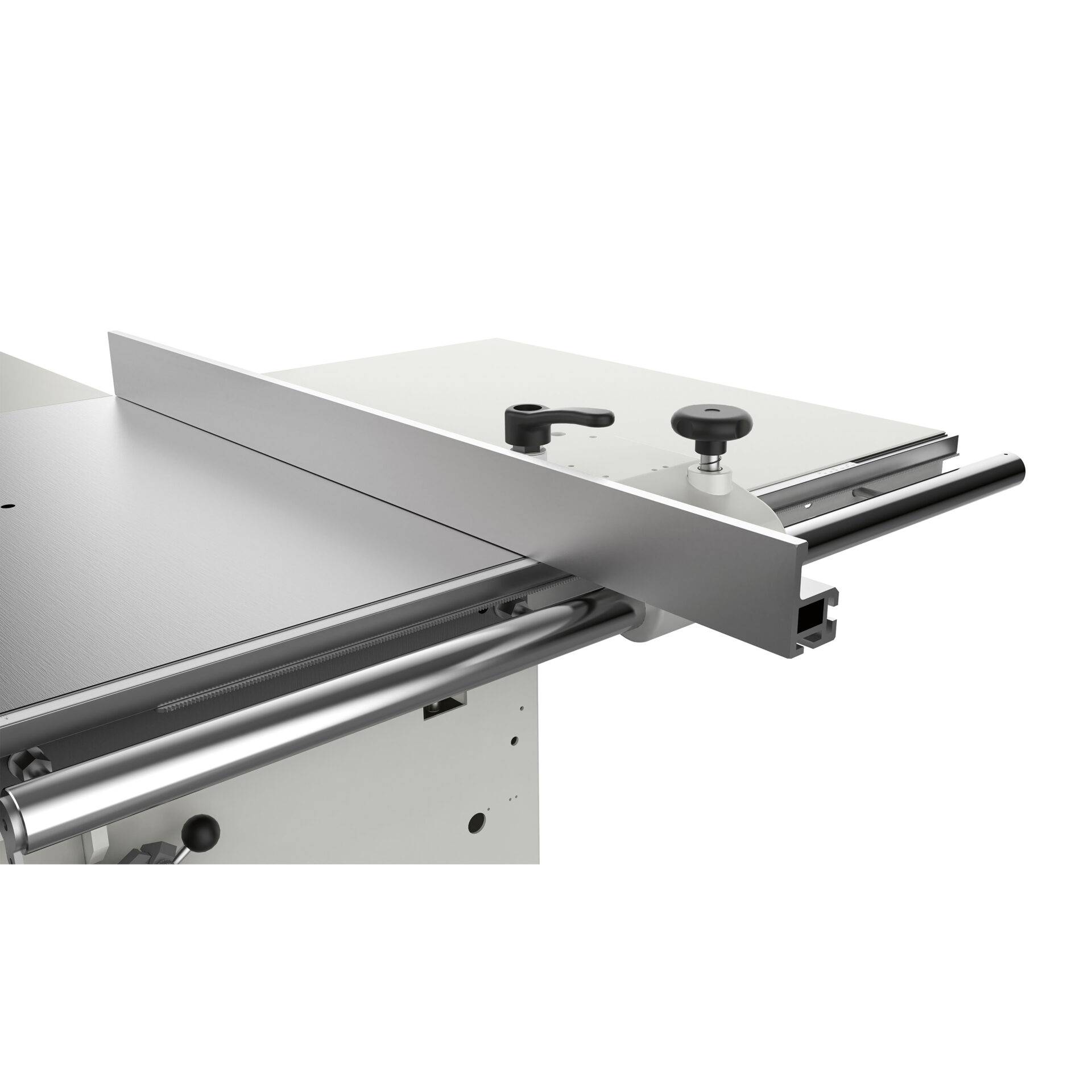

  • Extended rip fence capacity options up to 1500 mm
  • Rigid cast-iron saw unit with dovetail lift system for accuracy and stability
  • Smooth, high-precision sliding carriage with long-term reliability
  • Optional electronic digital readout to rip fence
  • Configurable specification to suit joinery, education and light production use
• Description

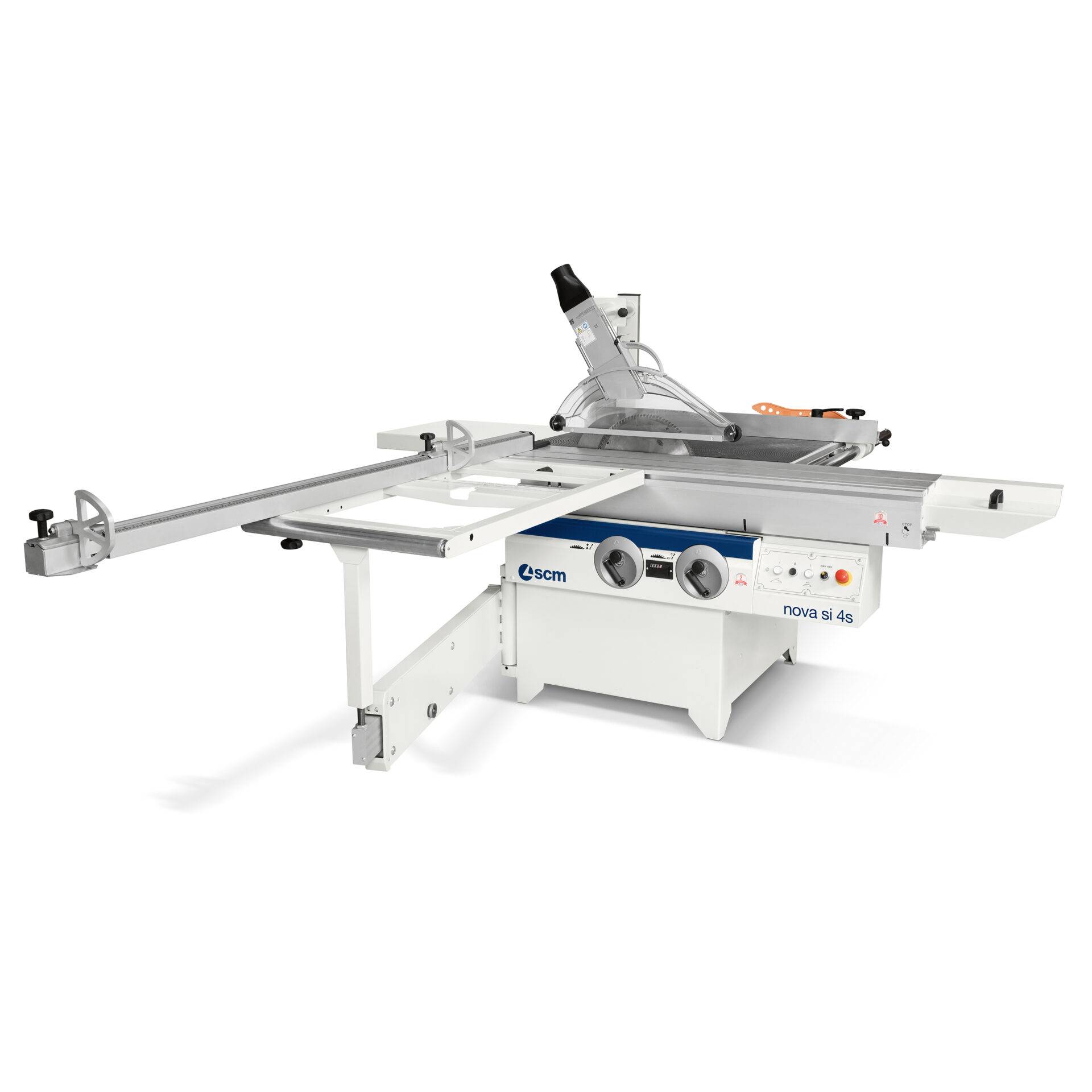

  The Nova SI 4S is a compact professional panel saw with a short stroke 1600 mm sliding table designed for workshops that require high cutting accuracy but have limited floor space. Sharing the same core build quality and cutting principles as the Nova SI 4, the SI 4S delivers professional performance in a more space-efficient footprint.

  The SI 4S is engineered around a rigid cast-iron saw unit with dovetail lifting system, ensuring stable, repeatable cutting across solid timber and panel-based materials. Its compact sliding carriage and squaring frame configuration make it ideal for workshops where efficient layout and workflow are critical.

  An optional scoring blade unit is available for clean cutting of laminated and veneered panels. With a range of configurable options the Nova SI 4S offers a flexible solution for professional joinery shops, education workshops and production environments with restricted space.

  For a larger capacity models with sliding table options up to 3800 mm , see the SCM Nova SI 4 model

• Specification
  • Blade diameter, max. 315/ 400 mm
  • Cutting depth, max. 100/ 140 mm
  • Sliding table 1600 mm
  • Rip fence capacity options 1000/ 1270/ 1500 mm
  • Blade tilt 0 - 46°
  • Rip fence adjustment Manual
  • Extraction outlet(s) Available on request
  • Motor power options 5 kW, 7 kW
  • Power 3 phase
• Literature
  • SCM Nova range Download
• Important information

  Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
