Reinecker WZS 70

Product Information

• Features
  • 5-axis CNC tool grinding machine for complex geometries and varied batch sizes

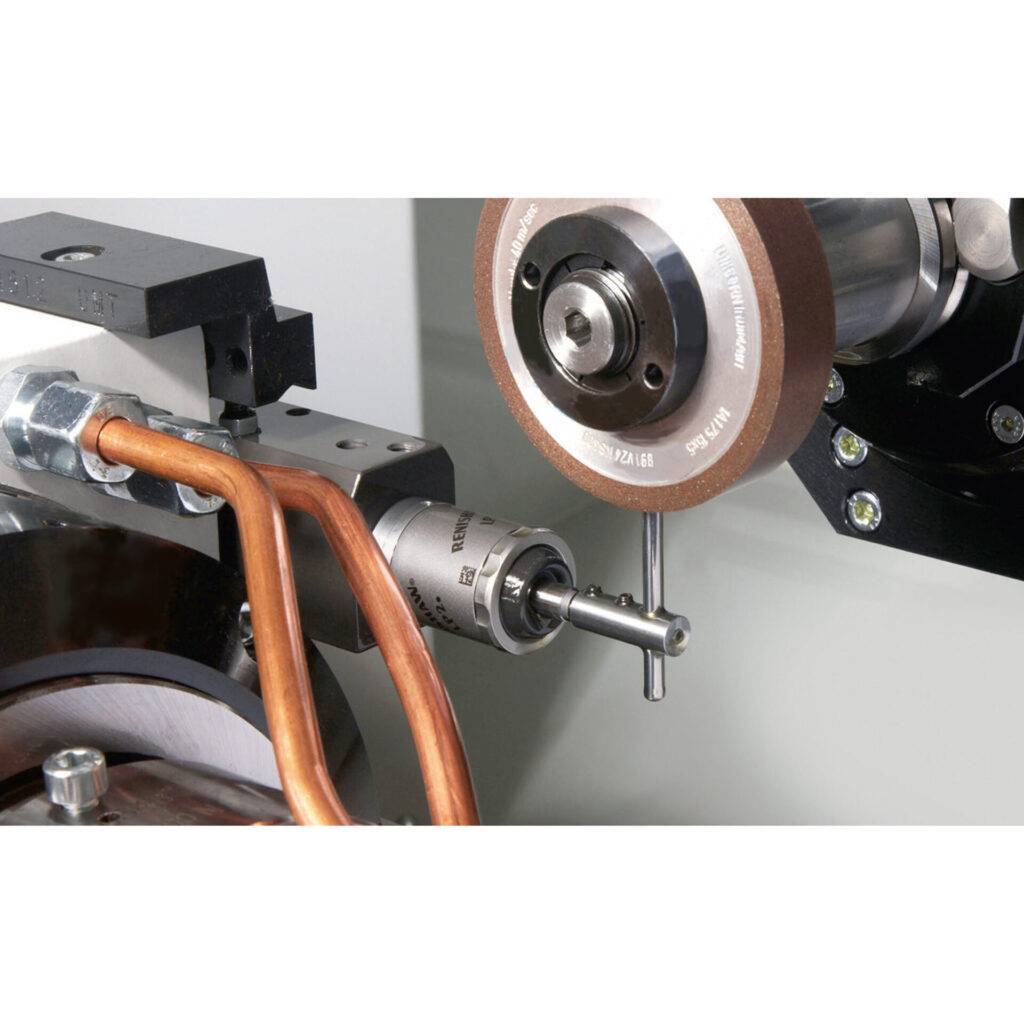

  • High-precision direct measuring systems on all axes for maximum accuracy
  • Liquid-cooled direct drive technology for spindle and rotary axes
  • Powerful NUM Flexium+ CNC control with NUMROTOplus® 3D programming

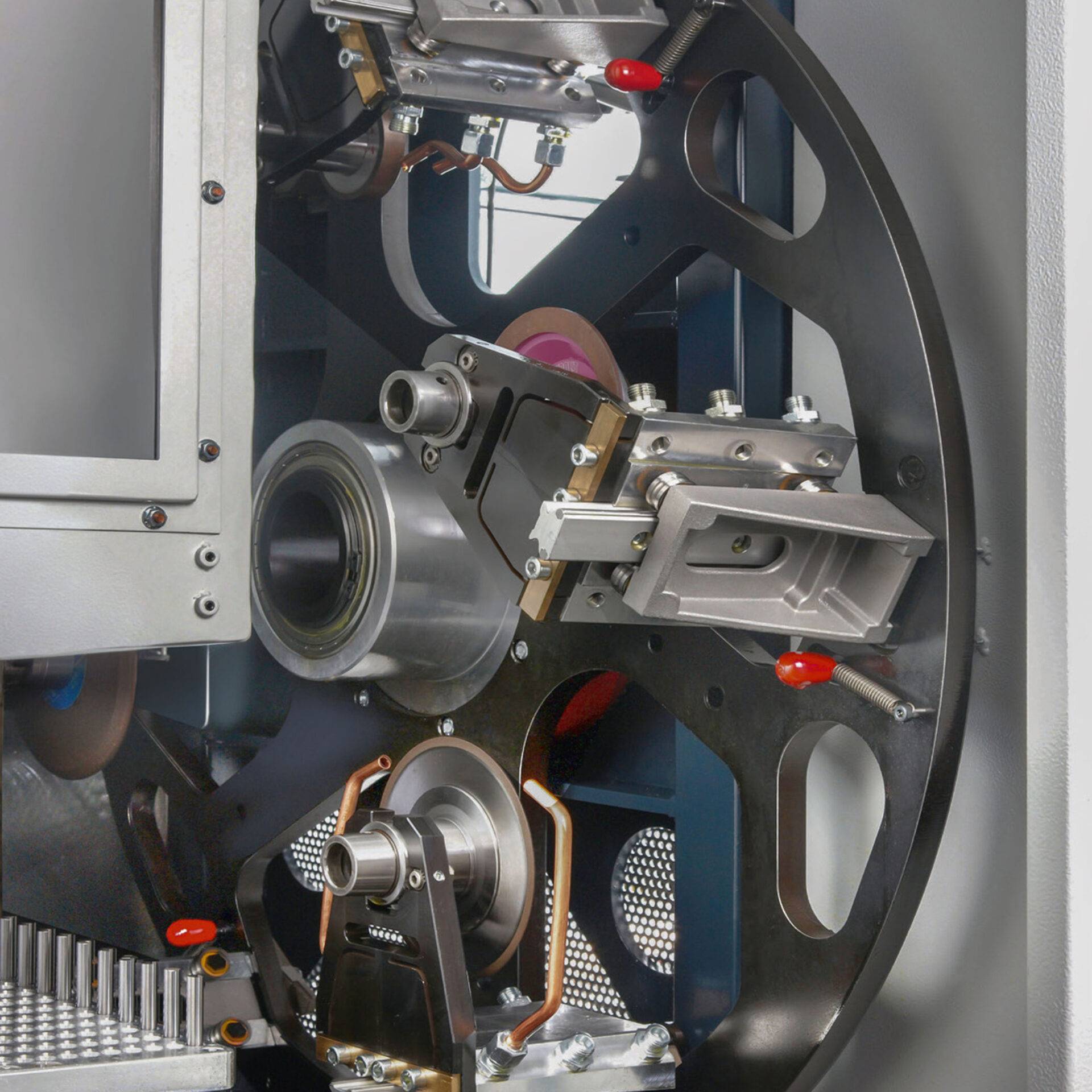

  • Configurable grinding wheel magazines up to 12 stations

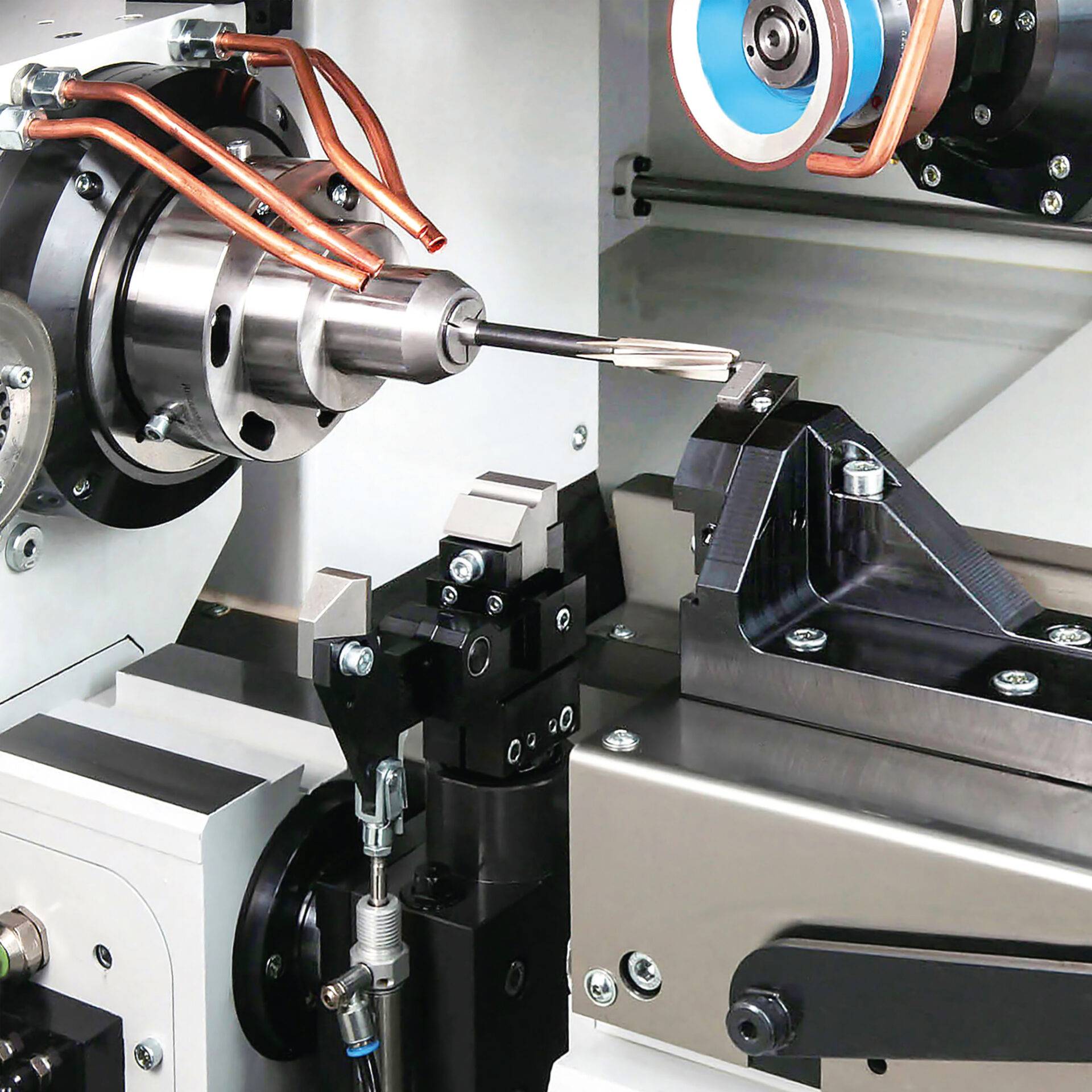

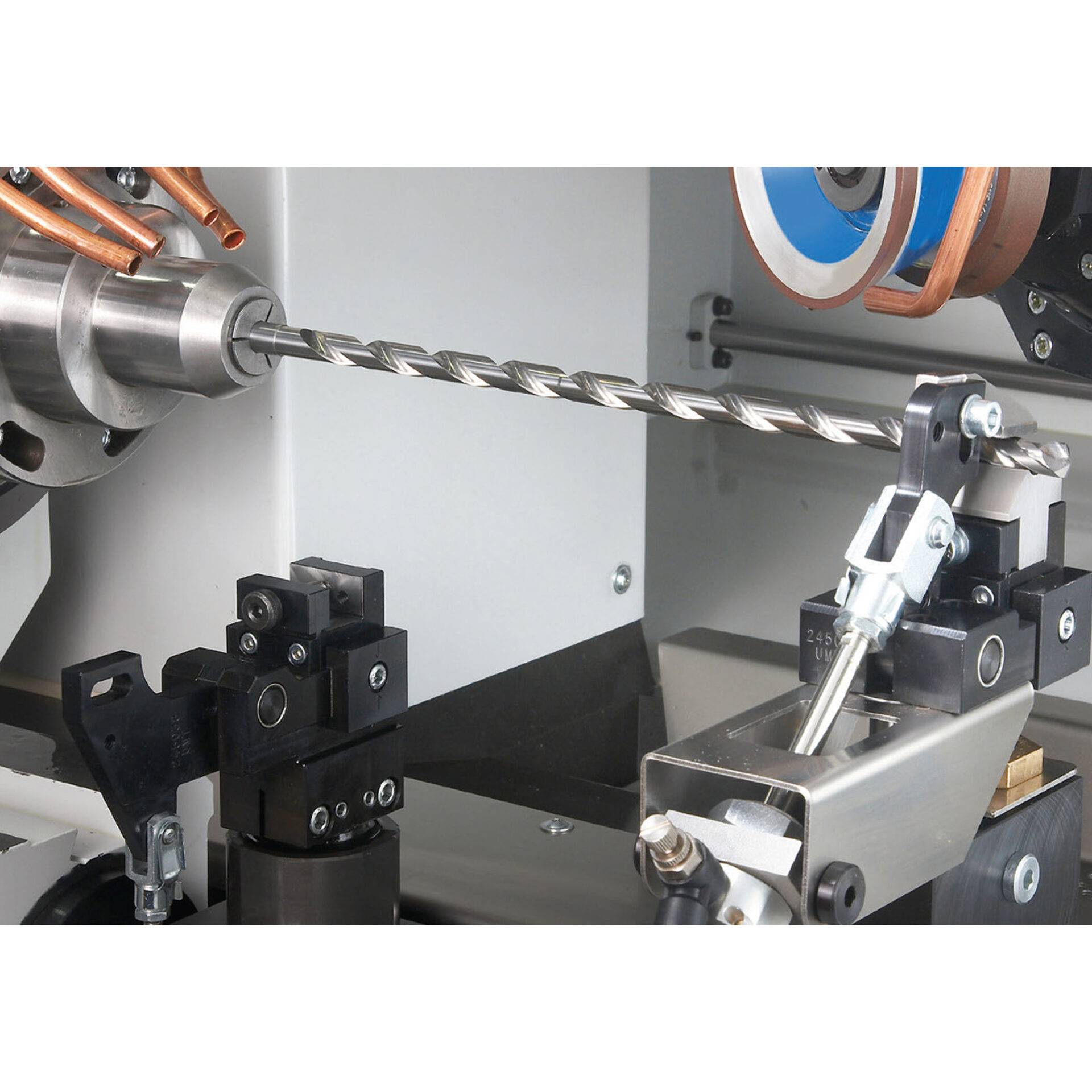

  • Flexible workpiece clamping systems for carbide and HSS tools

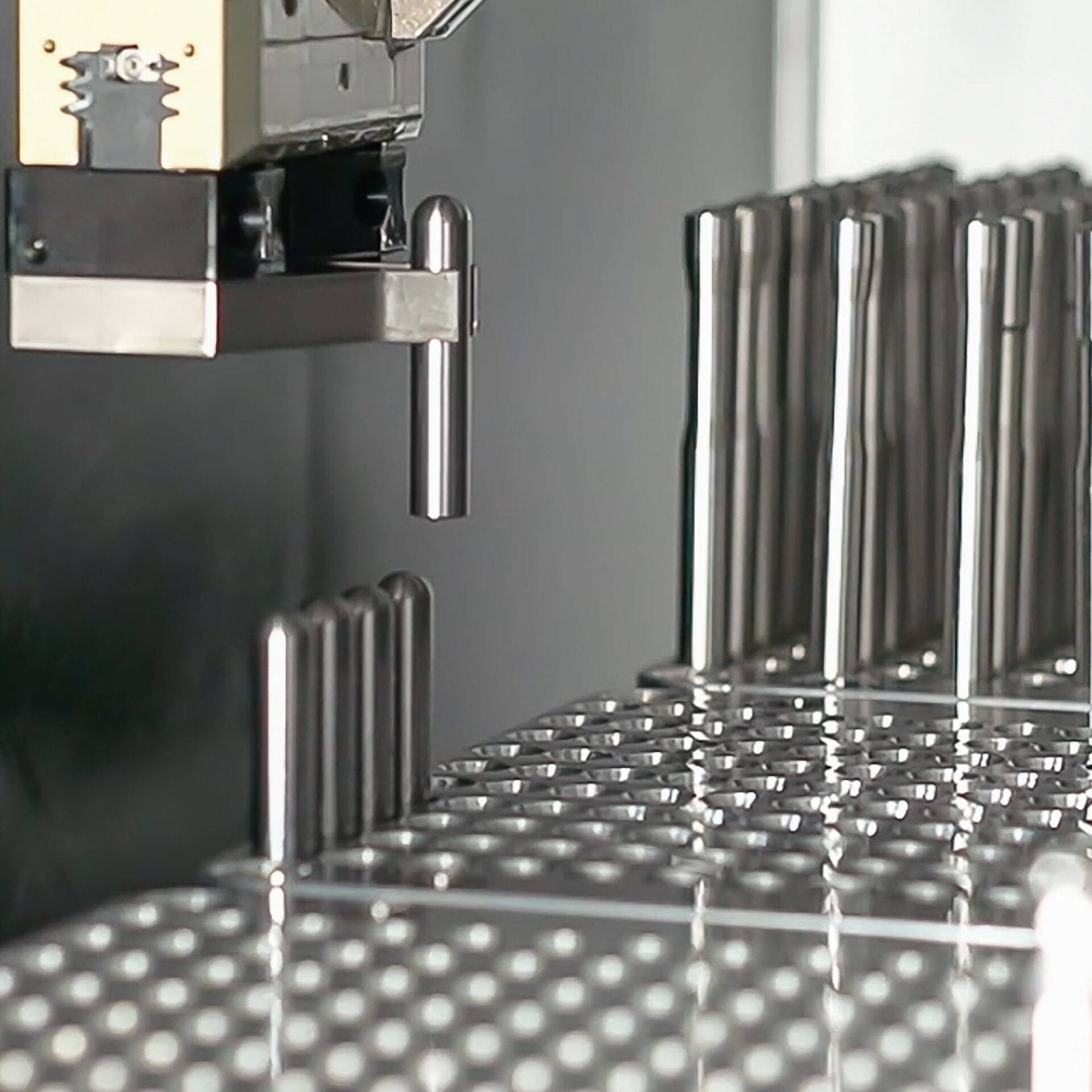

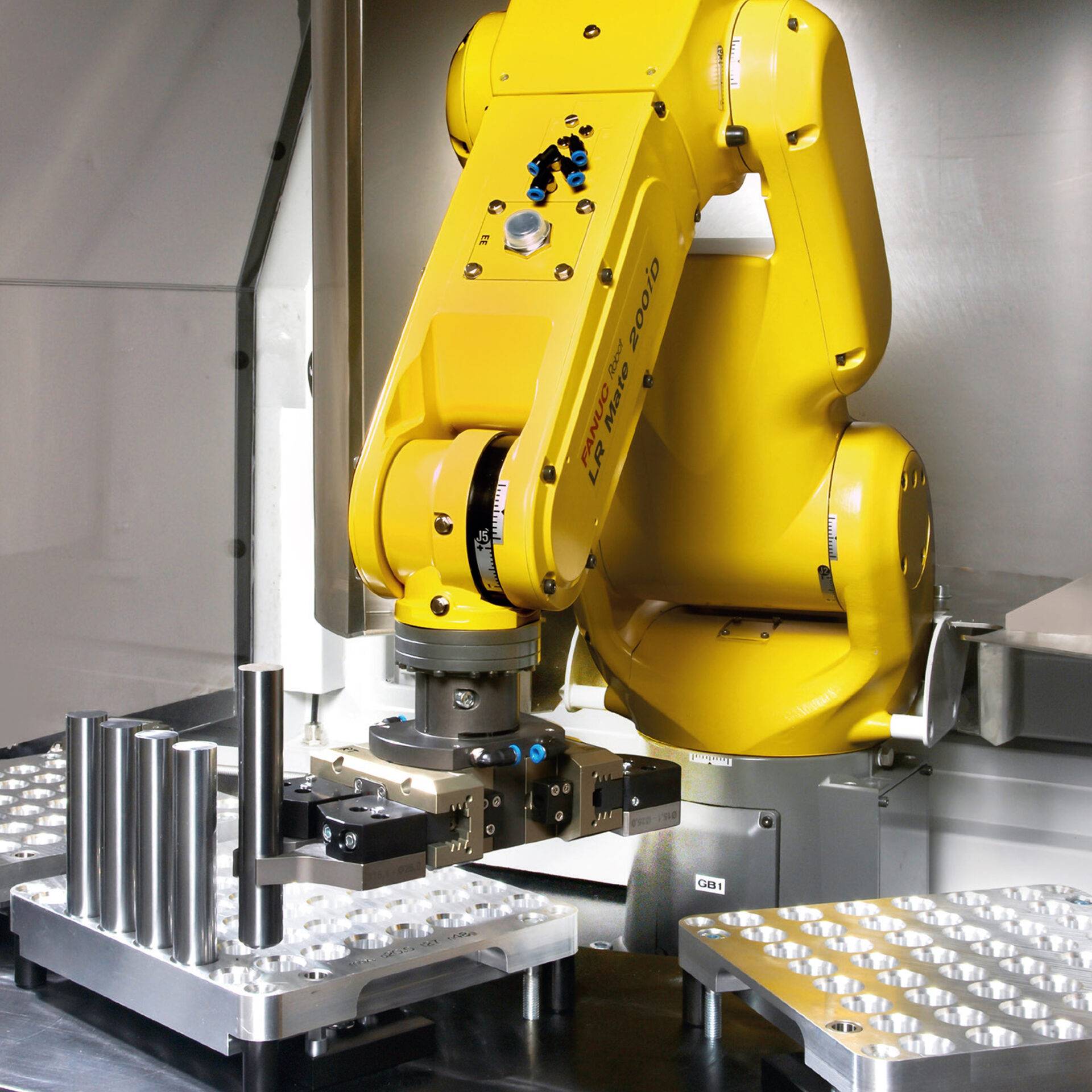

  • Automation-ready with pick-up systems, pallet handling or robotic loading
  • Compact machine footprint with a large working envelope
  • Designed for production, regrinding and mixed applications
• Description

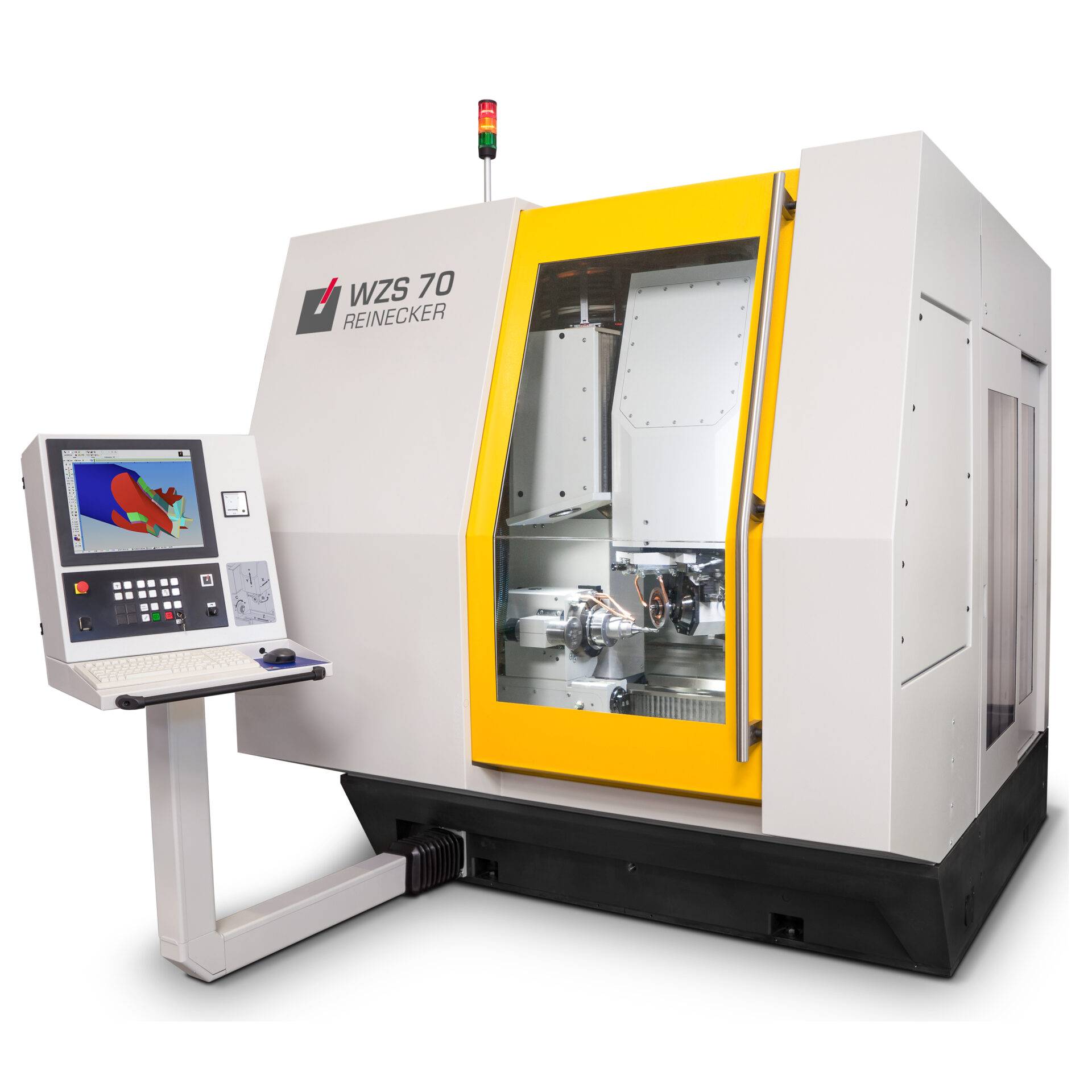

  The Reinecker WZS 70 is a highly versatile CNC tool grinding machine designed to cover a broad spectrum of tool manufacturing and resharpening applications. Positioned between compact toolroom grinders and fully automated production systems, the WZS 70 offers an ideal balance of flexibility, precision and automation capability.

  Engineered with a rigid machine structure and equipped with high-resolution direct measuring systems on all axes, the WZS 70 delivers excellent accuracy and repeatability when grinding complex tool geometries. Liquid-cooled direct drives on the grinding spindle and rotary axes ensure consistent performance, even during demanding production cycles.

  The machine is capable of processing a wide range of cutting tools made from solid carbide and HSS, supporting both manual operation and automated workflows. With configurable grinding wheel magazines, multiple workholding solutions and a choice of automation systems, the WZS 70 can be tailored precisely to suit mixed batch sizes, varying tool dimensions and changing production requirements.

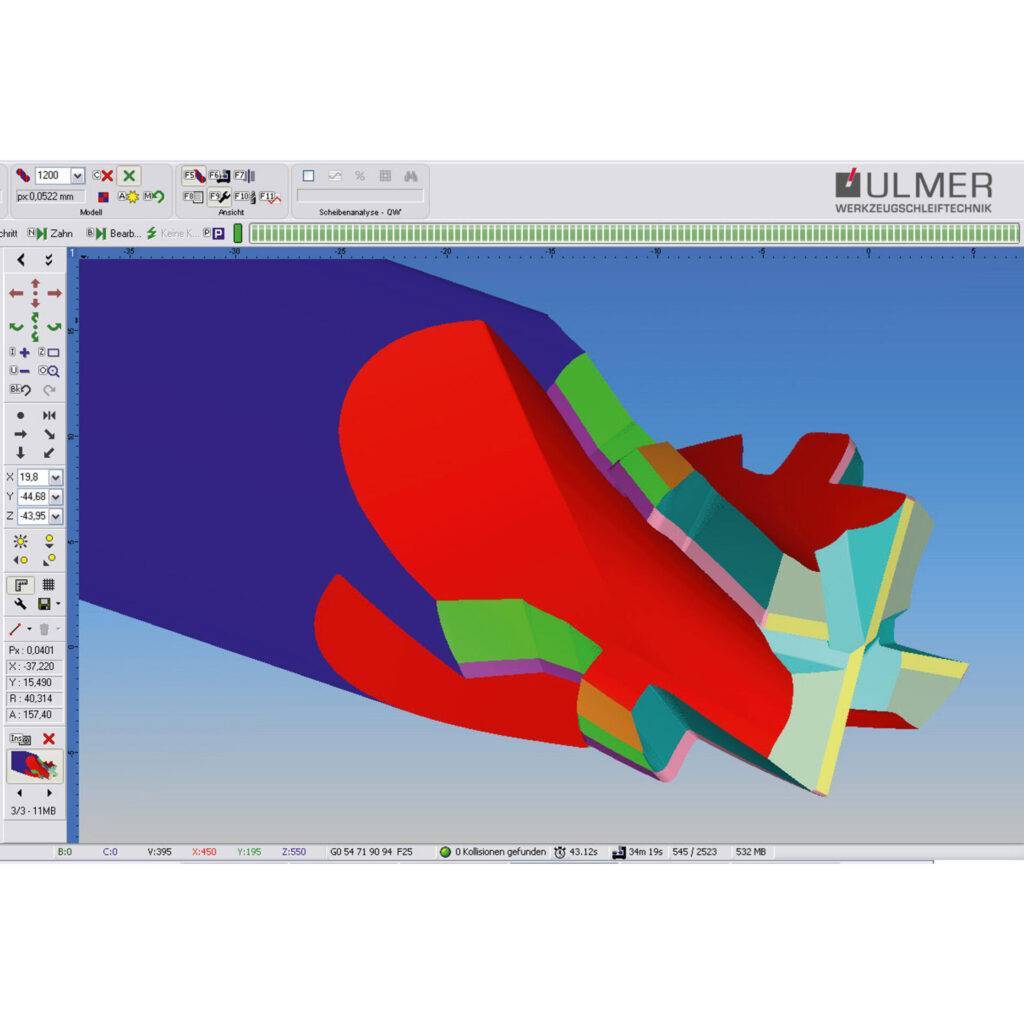

  Powered by the NUM Flexium+ CNC control and programmed using NUMROTOplus® software with 3D simulation and collision detection, the WZS 70 provides a user-friendly yet highly capable platform for modern tool grinding environments. Its compact footprint combined with a generous working envelope makes it particularly attractive for manufacturers seeking to increase capacity without sacrificing workshop space.

  Configured correctly, the Reinecker WZS 70 is equally at home producing new tools, regrinding worn cutters or operating as part of an automated production cell.

• Specification
  • Axes 5-axis CNC
  • Control System NUM FlexiumPro
  • Programming Software NUMROTOplus®
  • Travel of axes (X) 740 mm, (Y) 250 mm, (Z) 740 mm
  • Rotation of axes (B) +210° / -180°, (C) n x 360°
  • Resolution (X, Y, Z) 0.0001 mm, (B, C) 0.0001°
  • Rapid travel speed (X, Y, Z) 30/ 30/ 30 m/min
• Literature
  • WZS 70 product brochure Download
