Reinecker RS 50

Product Information

• Features
  • Precision CNC cylindrical grinding for rotational components
  • Rigid machine construction for excellent stability and surface finish
  • Multi-axis CNC control for flexible grinding operations
  • High-performance motorised grinding spindle
  • Suitable for carbide, HSS and hard materials

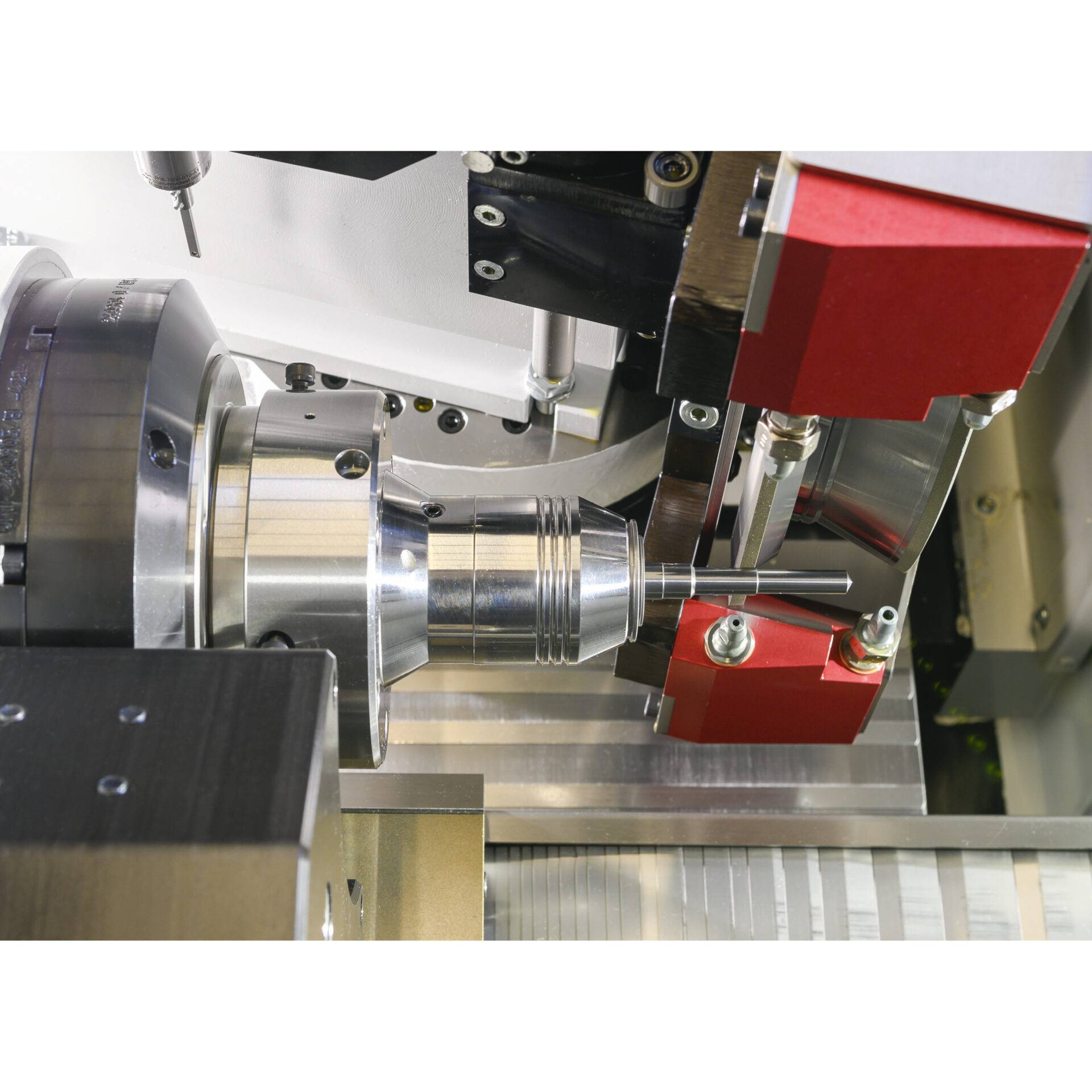

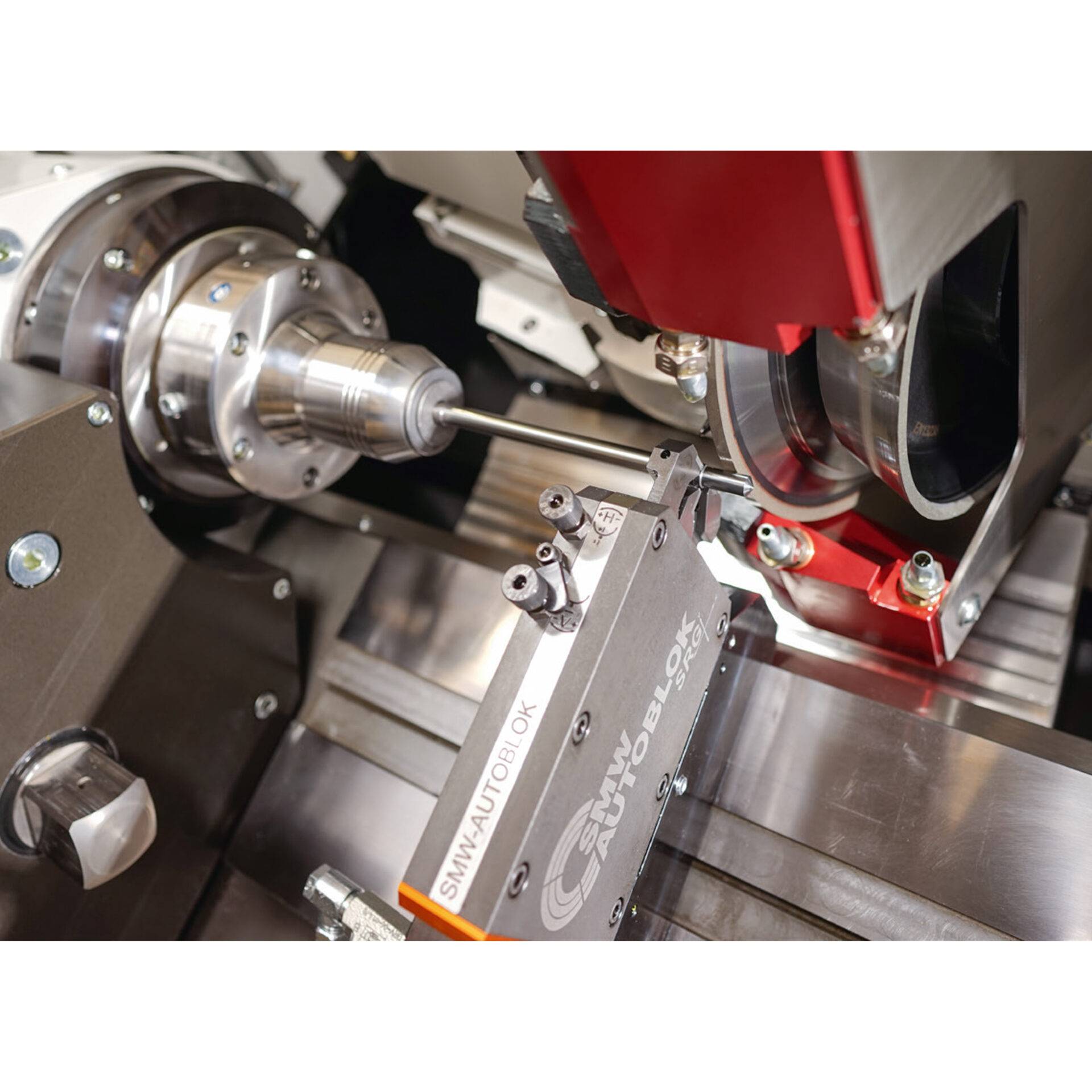

  • Flexible workpiece clamping options, including between centres

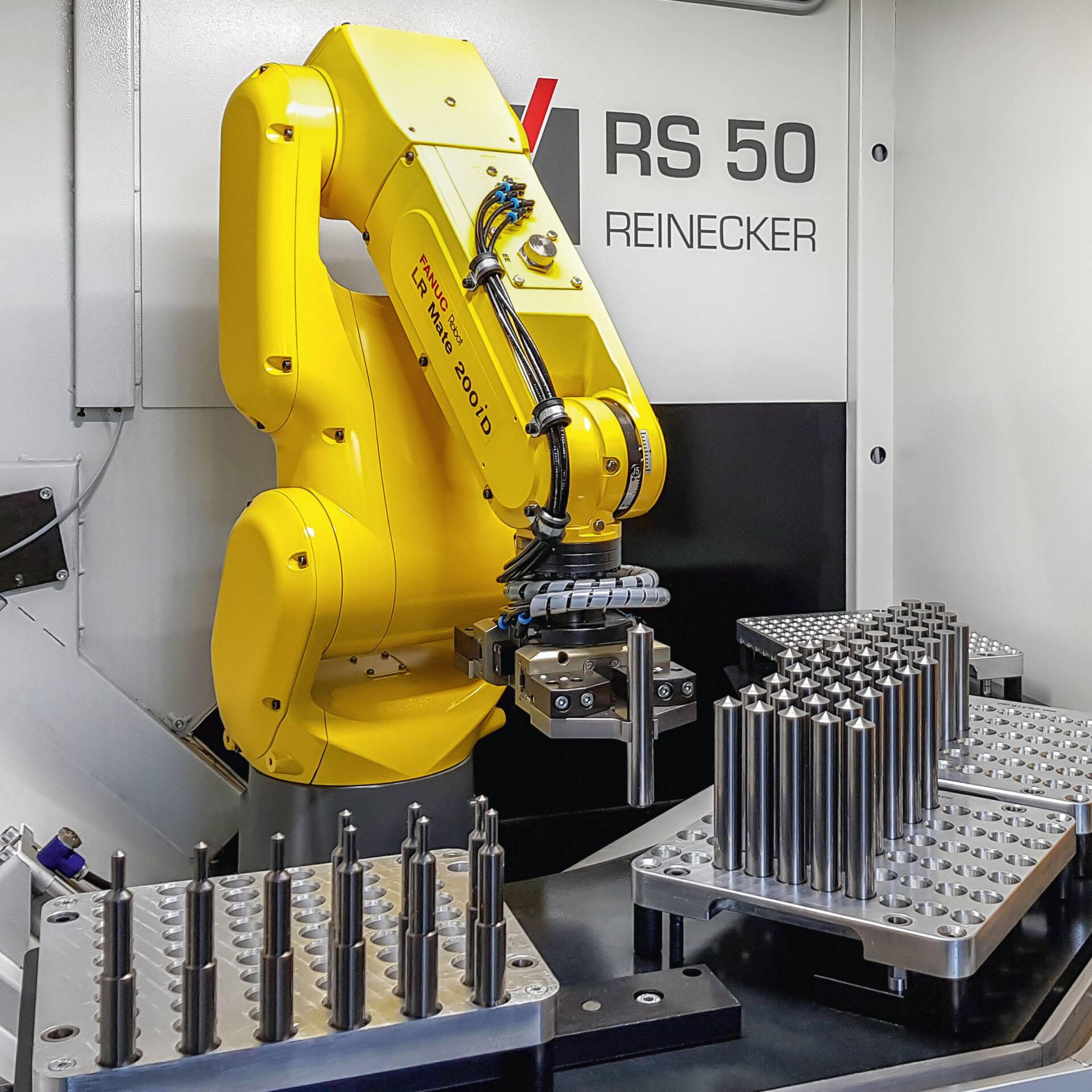

  • Optional automation and loading solutions for repeatability
  • Advanced CNC control with integrated safety architecture
  • Ergonomic layout for easy set-up, operation and service access
  • Application-specific configuration to match production needs
• Description

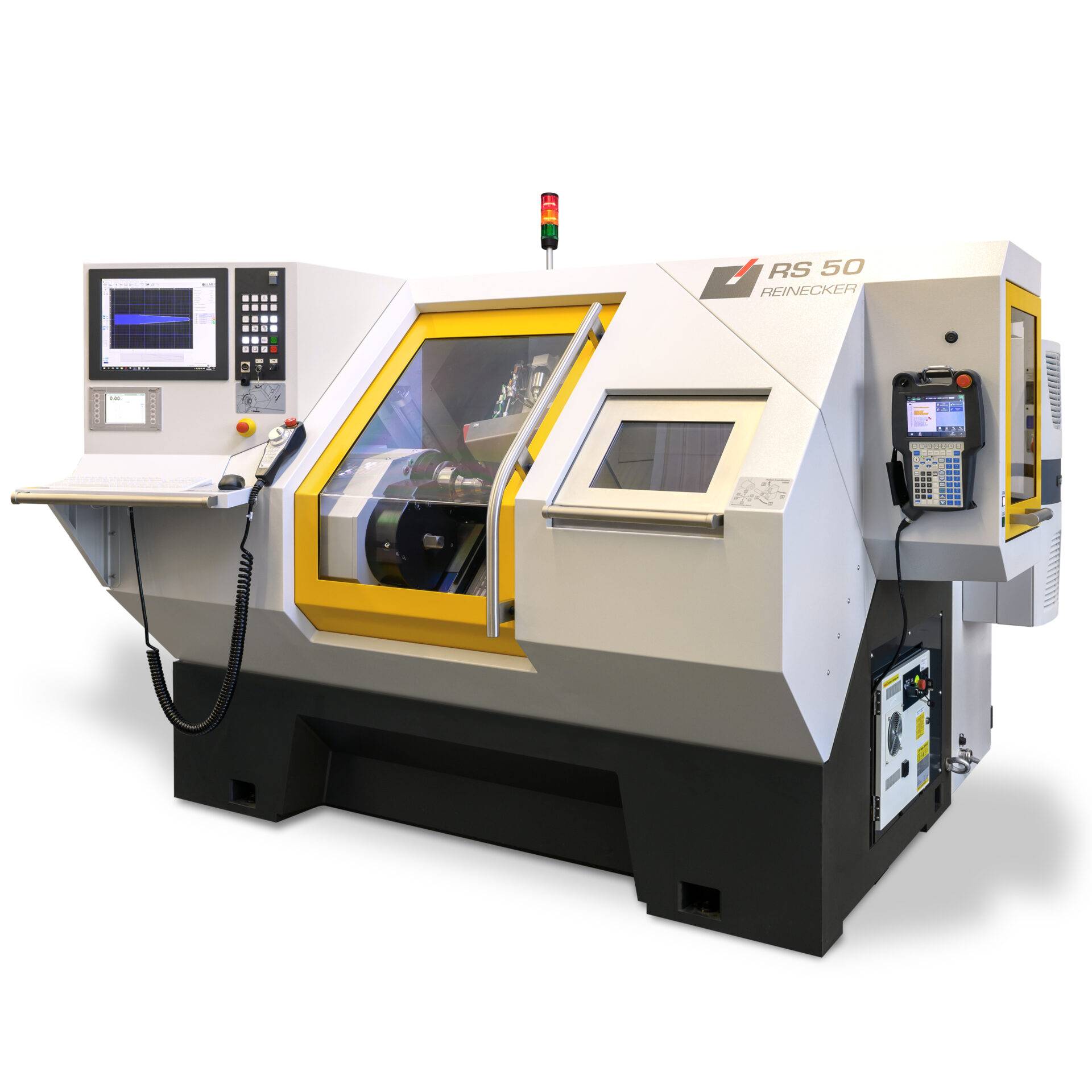

  The Reinecker RS 50 is a precision CNC cylindrical grinding machine designed for applications where accuracy, stability and repeatability are essential. Engineered in Germany and built around a rigid machine structure, the RS 50 delivers consistent grinding performance across a wide range of rotational components.

  Designed to support both specialist grinding tasks and small to medium batch production, the RS 50 combines flexible CNC kinematics with configurable workholding and automation options. This allows the machine to be tailored precisely to the workpiece geometry, material and production requirements.

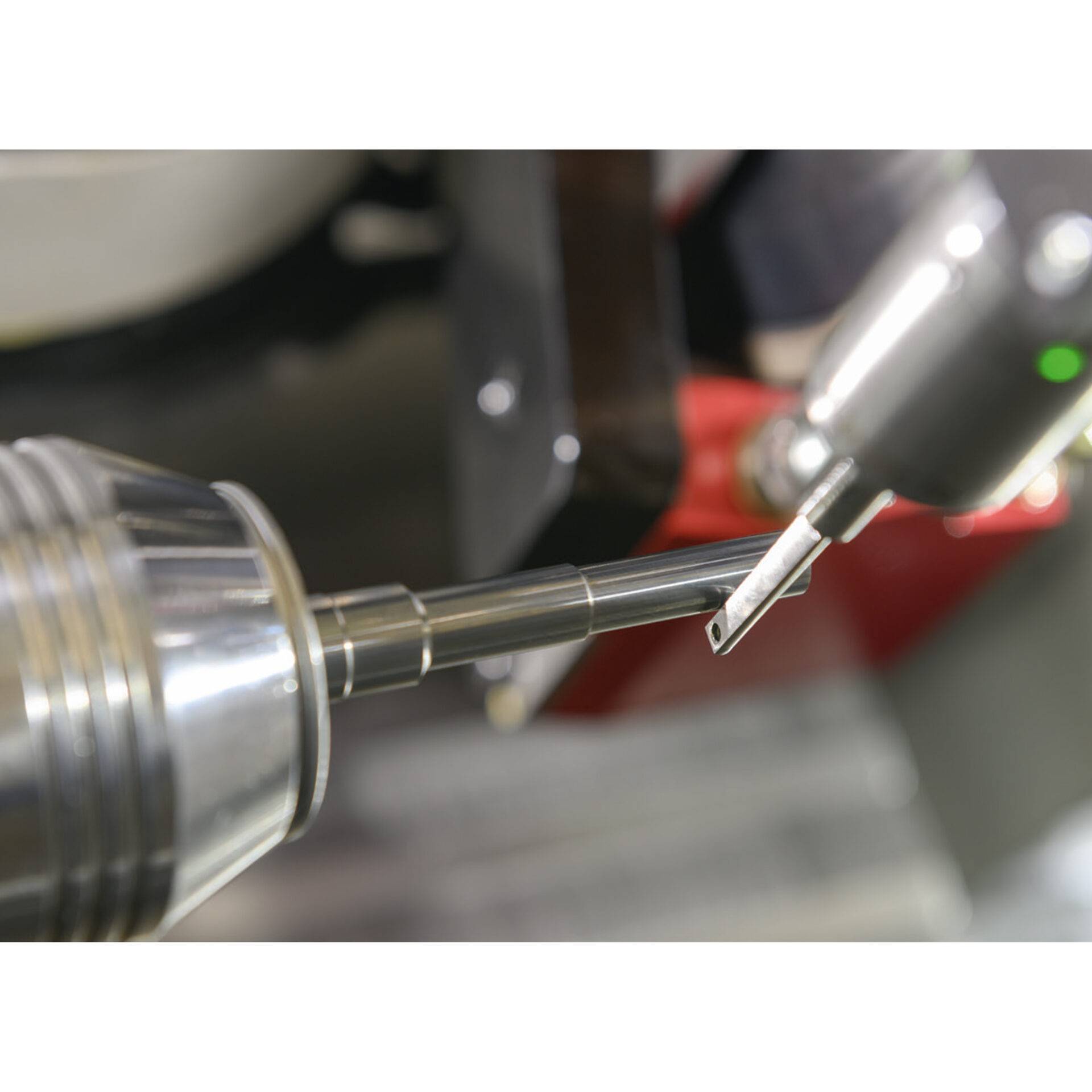

  With advanced CNC control, high-performance spindle technology and optional in-process measurement, the RS 50 provides a reliable solution for manufacturers working with carbide, HSS and other hard materials. As with all Reinecker machines, the RS 50 is configured to suit the application rather than supplied as a fixed specification.

• Specification
  • Axes 5-axis CNC
  • Control System NUM FlexiumPro
  • Programming Software NUMROTOplus®
  • Travel of axes (X) 220 mm, (Z) 900 mm
  • Rotation of axes (B) +10° / -90°
  • Resolution (X, Z) 0.0001 mm, (C) 0.0001°
  • Rapid travel speed (X,, Z) 30/ 30m/min
• Literature
  • RS 50 product brochure Download
