Phillipson CBS1

Product Information

• Features
  • Table tilt with accurtilt vernier measurement +/- 45 degrees
  • 4 dual-profile flat/ radius bars; 15/30/40/50mm
• Description

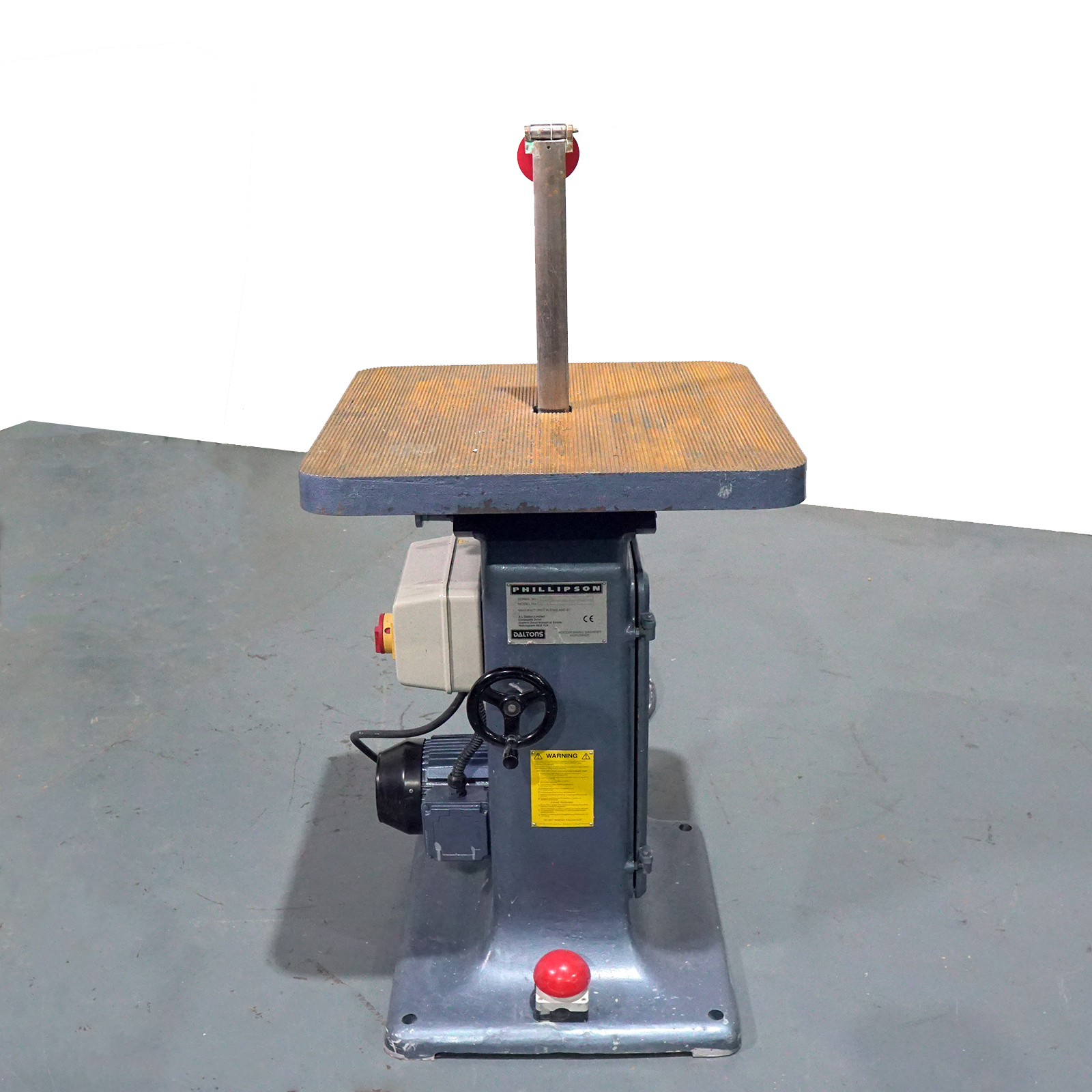

  The Phillipson CBS1 is a high-quality contour belt sander, designed for precise sanding of shaped, curved and profiled components in professional woodworking environments. Engineered for flexibility and accuracy, this machine is ideal for joinery, furniture manufacturing and specialist finishing applications.

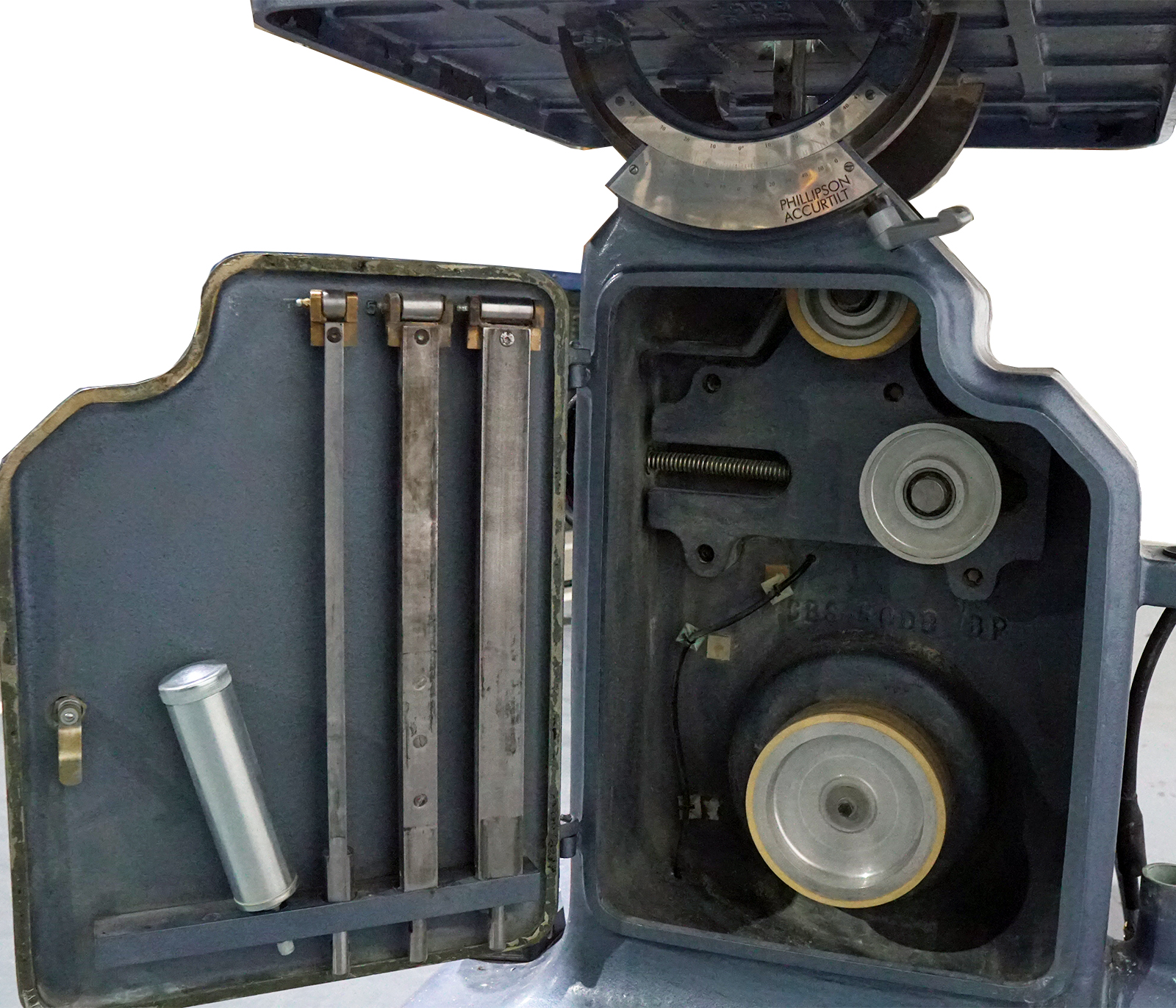

  A key feature of the CBS1 is its dual-profile sanding capability, supplied with interchangeable flat and radius bars (15, 30, 40 and 50 mm). This allows operators to accurately sand a wide range of profiles, from flat surfaces to tight internal and external curves.

  The machine is equipped with a tilting work table featuring Accurtilt vernier measurement (±45°), enabling precise angle setting for consistent, repeatable results. Combined with a generous working area and height capacity, the CBS1 offers excellent versatility across a wide range of component sizes.

  With two belt speeds (15 and 30 m/sec), the machine can be easily adapted for both aggressive material removal and fine finishing, making it suitable for a variety of sanding tasks.

  Fully Serviced to Daltons Premium Standard

  This machine has been prepared in accordance with our Category B – Premium Service, ensuring it is ready for immediate use:

  • Fully tested electrically and mechanically
  • Checked for completeness and correct operation
  • Safety systems reviewed and updated in line with PUWER regulations
  • Electrical components inspected and replaced where required
  • Drives, guides and settings adjusted and serviced
  • Thoroughly cleaned and prepared
  • Paintwork touched up where necessary
  • Supplied with relevant tooling and operating guidance
  • Supplied with a 6-month warranty for complete peace of mind
• Specification
  • Sanding height capacity 400mm
  • Abrasive belt length 2710mm
  • Belt speed 15 & 30m/sec
  • Table size 700 x 700mm
  • Table height 1000mm
  • Power 3 Phase
