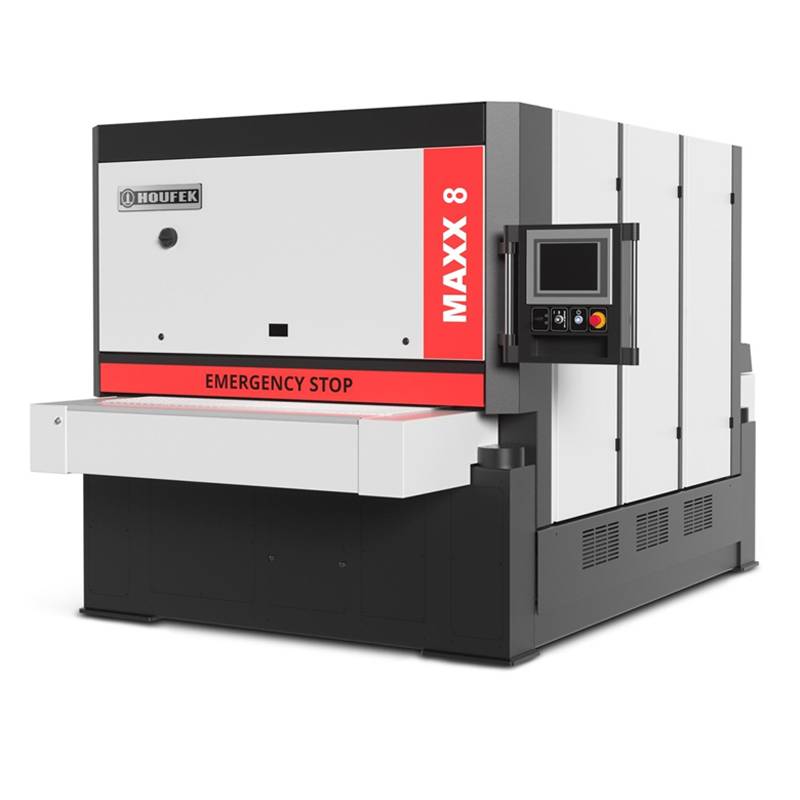

Houfek Maxx 8W

Designed for high production processing of metal punched/ laser-cut/ routed/ water-jet cut parts, the Houfek Maxx 8W offers both dry and wet configurations. Whether you are looking to calibrate, deburr, finish or edge round, this wide belt sander can be specified with any combination of roller disc and brush heads to deliver consistent, reliable results.

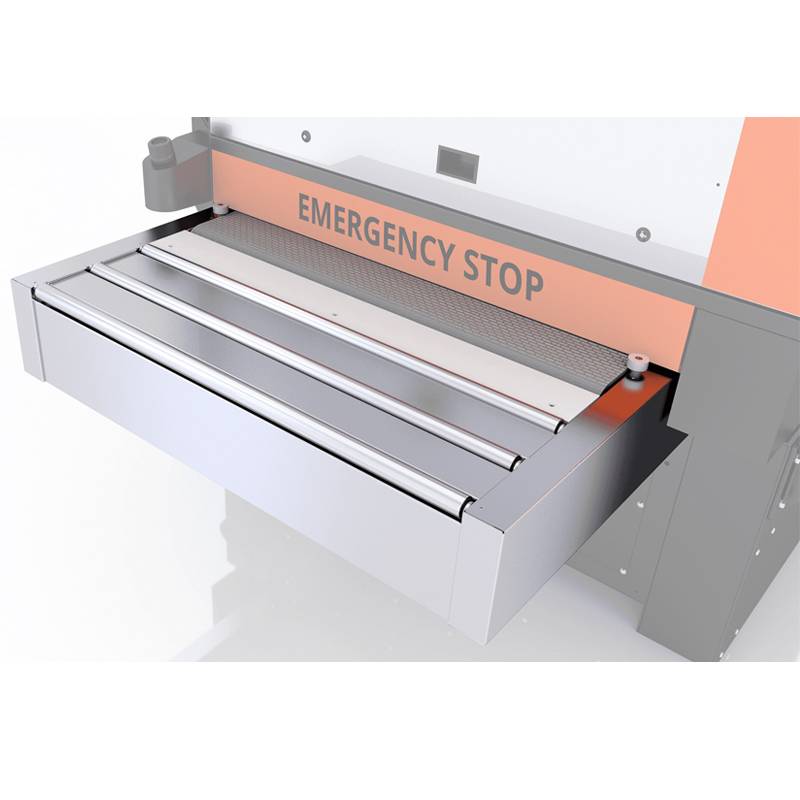

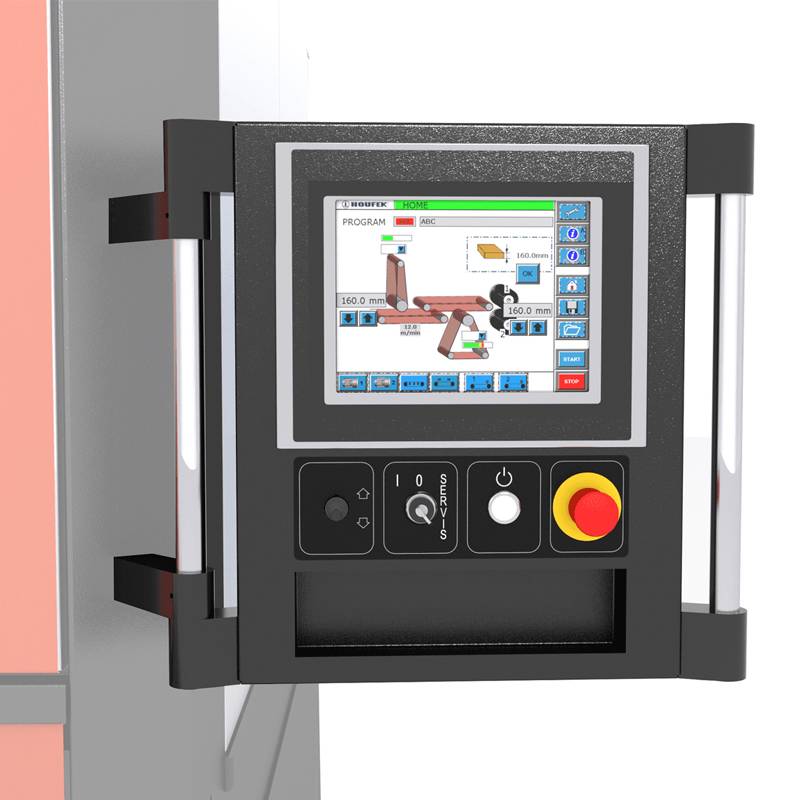

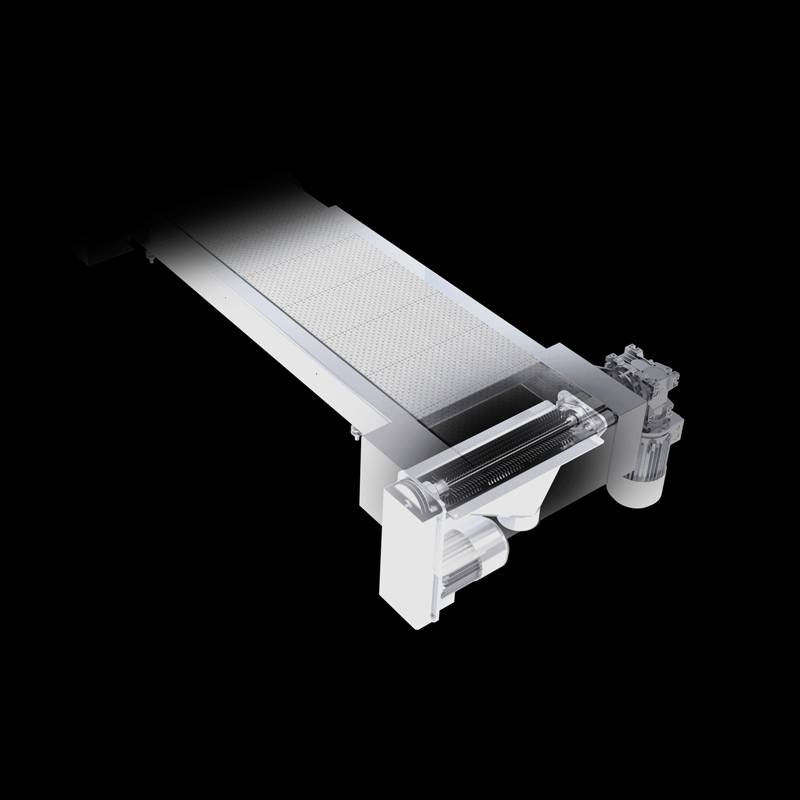

Working width capacity for the Houfek Maxx 8W include 1100, 1350 and 1550mm with a thickness range from 0.5 to 160mm (or 220mm as option). For small parts a vacuum or magnetic bed is available with automatic demagnetizer. Standard features on the Maxx 8W include programmable control with 10.1” colour touch screen, motorised table height adjustment, digital measuring of table position, rubber pressure rollers, automatic feed belt tracking, pressure safety switch, internal LED lighting and glazed side access door for easy viewing.

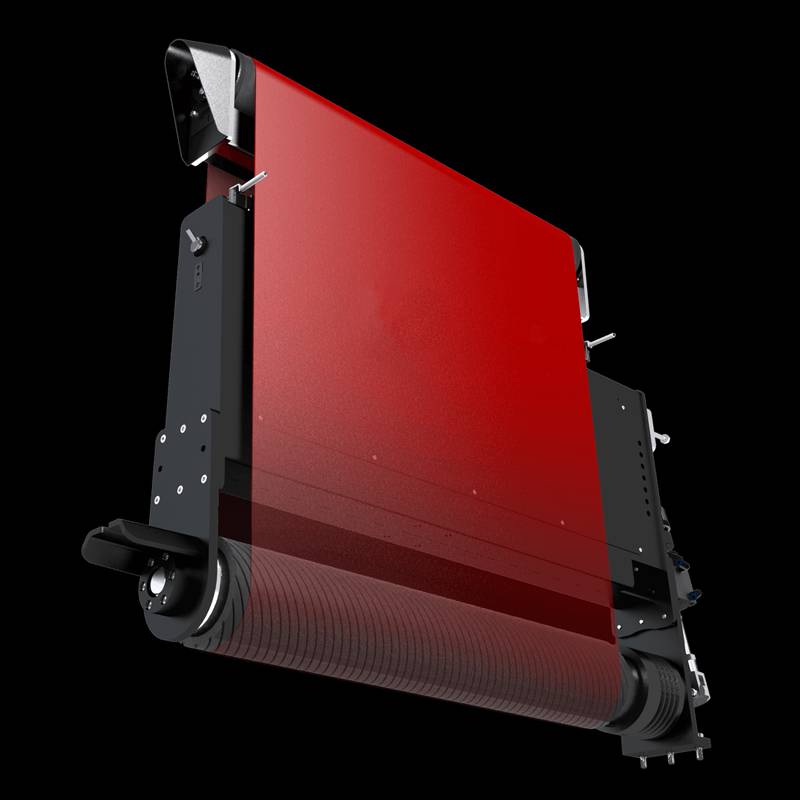

Unit  R - unit with sanding belt

• motor 11 kW ( 15HP) 1100mm, 15 kW (20HP) 1350, 1550 mm


• length of sanding belt 2620 mm


• rubbered roller D= 160 mm, 60Sh


• optical sensor control of abrasive belt oscillation


• automatic star/delta switch


• ammeter for motor of sanding unit


• abrasive belt speed 10 - 35 m/s.


• main motor pneumatic disc brake

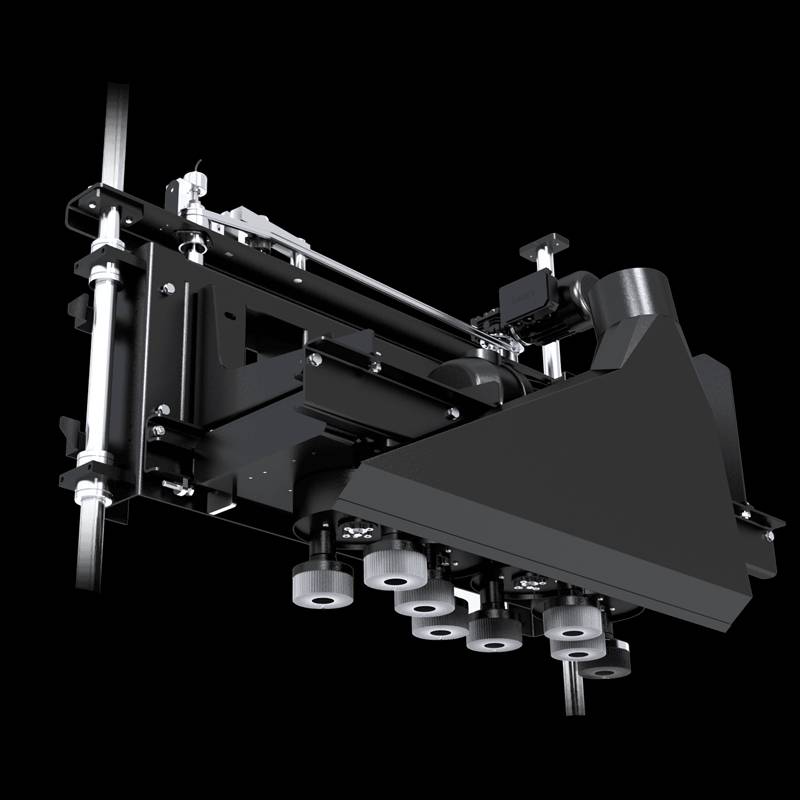

• motor 4 kW ( 5,5HP) 1100, 1350mm, 7,5kW (10HP) 1550mm


• disc diameter 115 mm in two rows


• number of discs: width 1100 - 19pcs, width 1350 - 22pcs, width 1550 - 26pcs


• variable speed of discs 600 - 1800 RPM


• oscillation 20, 40, 60, 80,100 mm


• ammeter for motor of disc unit


• motorized height adjustment with digital display


• Note sanding heads not included and specified separately

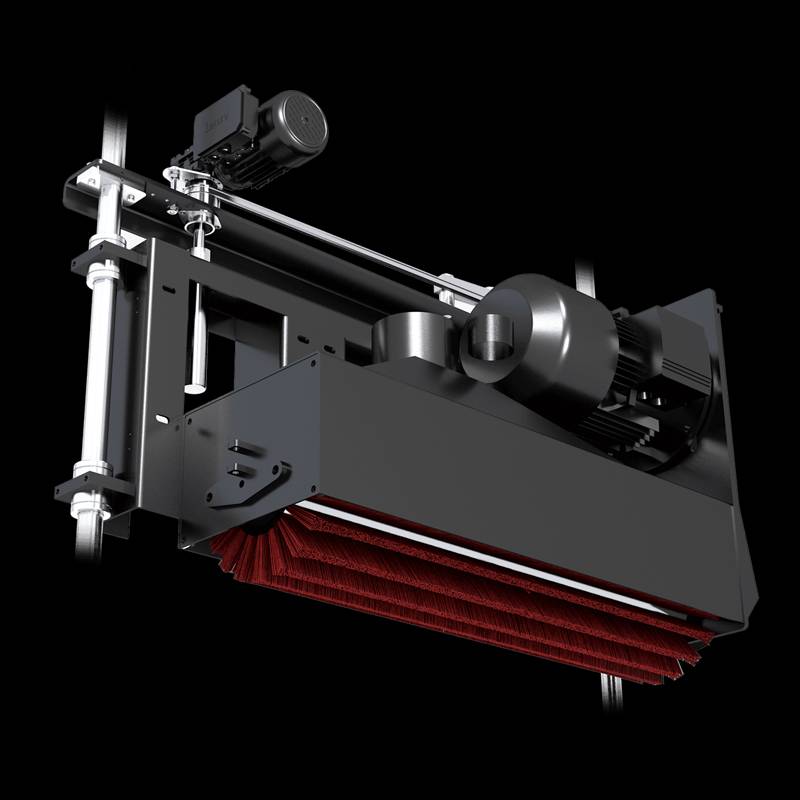

• motor 7,5 kW ( 10HP)


• roller diameter 150 - 300 mm


• shaft diameter 60 mm, 80 mm for widht 1550 mm


• variable speed of drum brush 400 - 2400 RPM


• oscillation 20 mm with switch OFF possibility


• ammeter for motor of brush unit


• reverse run for 1 brush unit B


• motorized height adjustment with digital display


• Note sanding heads not included and specified separately
