Elcon 155 DSX

Product Information

• Features
  • Pneumatic head plunge
  • Heavy duty, professional panel sizing
  • Automatic shifting back frame for panel support
  • Fine adjustment flip down fence stop
  • Fast change over from vertical to horizontal cutting
  • Fully enclosed saw blade
  • High speed saw blade
  • Programming rail for repeat work
  • Repeat stop for horizontal strip cutting
  • Mid rail fence for supporting smaller work pieces
  • Integrated electronic safety circuit
• Description

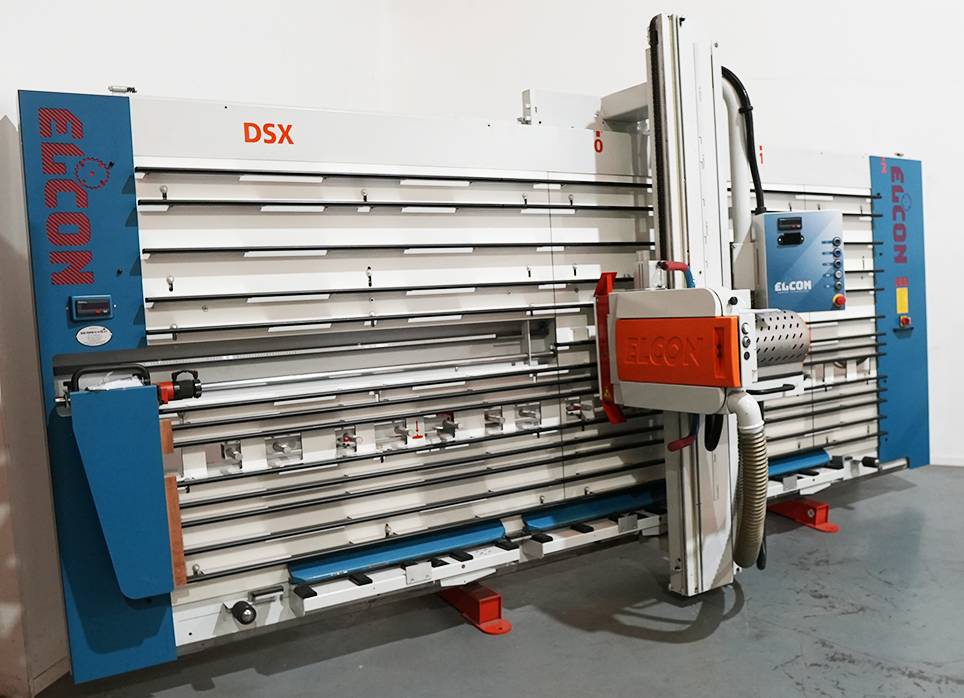

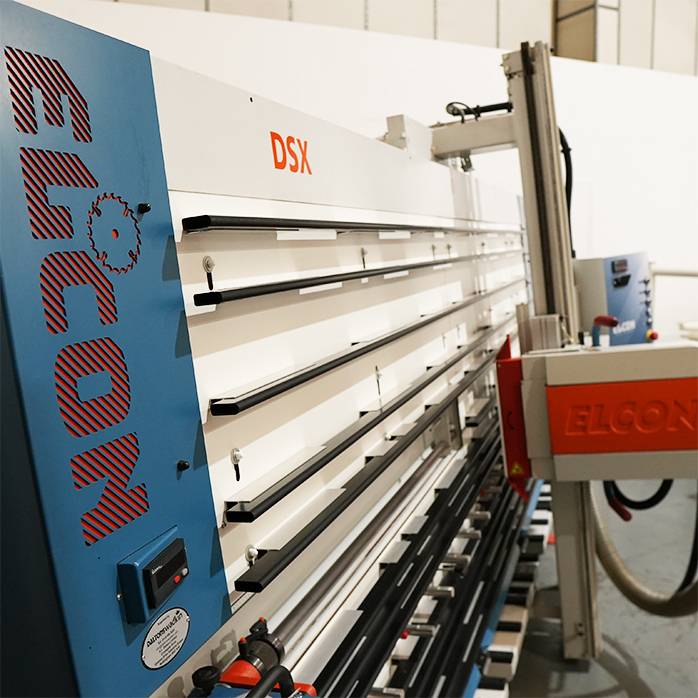

  The Elcon 155 DSX is a heavy-duty, professional vertical panel saw designed for precise, efficient sizing of sheet materials in busy workshop and production environments. Built for accuracy and ease of use, this machine is ideal for cutting panels in wood-based materials, plastics and composites.

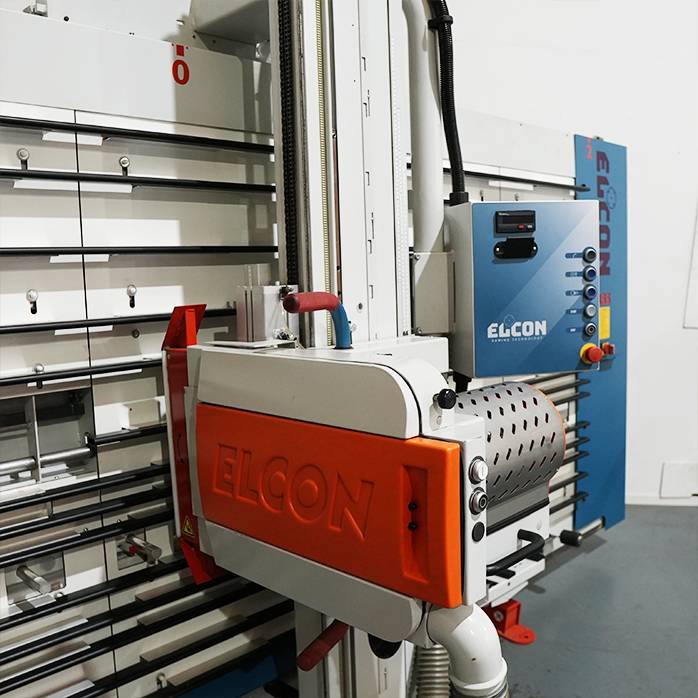

  Equipped with a pneumatic head plunge, the DSX ensures smooth, controlled cutting with minimal operator effort, improving both accuracy and productivity. The fully enclosed high-speed saw blade enhances operator safety while delivering clean, consistent cuts across a wide range of materials.

  A key feature of the machine is its automatic shifting back frame, which provides optimal panel support during cutting, reducing material handling and improving workflow efficiency. Combined with fast changeover between vertical and horizontal cutting, the DSX is perfectly suited to versatile, high-throughput environments.

  The inclusion of a programming rail and repeat stops allows for accurate, repeatable cutting—ideal for batch production—while the mid-rail fence offers additional support when working with smaller panels.

  Fully Serviced to Daltons Premium Standard

  This machine has been prepared in accordance with our Category B – Premium Service, ensuring it is fully operational and ready for immediate use, including:

  • Full electrical and mechanical test run
  • Safety checks and updates in line with PUWER regulations
  • Inspection and replacement of electrical components where required
  • Adjustment and servicing of all drives, guides and settings
  • Thorough cleaning and preparation
  • Cosmetic touch-up of paintwork where needed
  • Supplied with relevant tooling and operating guidance manual
  • Supplied with a 6-month warranty for added peace of mind
• Specification
  • Cutting length, max. 3300
  • Cutting height, max. 1550
  • Blade diameter, max. 300 mm
  • Cutting depth, max. 80 mm
  • Blade projection, max. 86 mm
  • Blade bore diameter 30 mm
  • Minimum panel size 600 x 200 mm
  • Blade speed 5000 rpm
  • Compressed air 6 - 8 bar
  • Motor 4 kW
  • Power 3 phase
