Wide Belt Sander

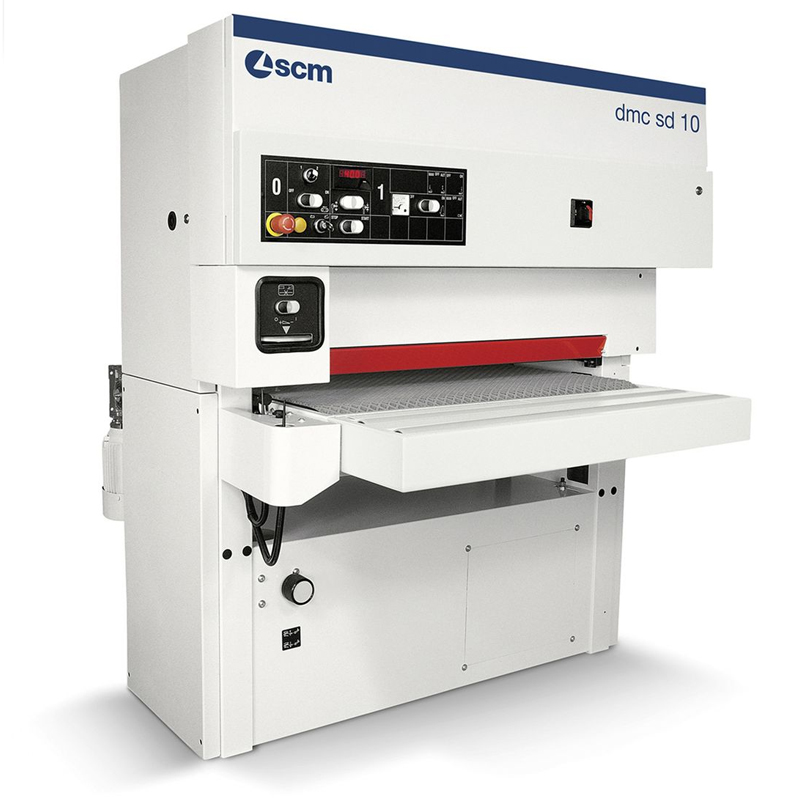

The SCM DMC SD 10 is a compact wide belt sander for woodworking and joinery workshops. Its 950 mm working width and combined roller and pad unit make it a practical choice for calibrating solid wood and sanding panels.
Looking for advice on your process or application?
Call - 0115 986 5201

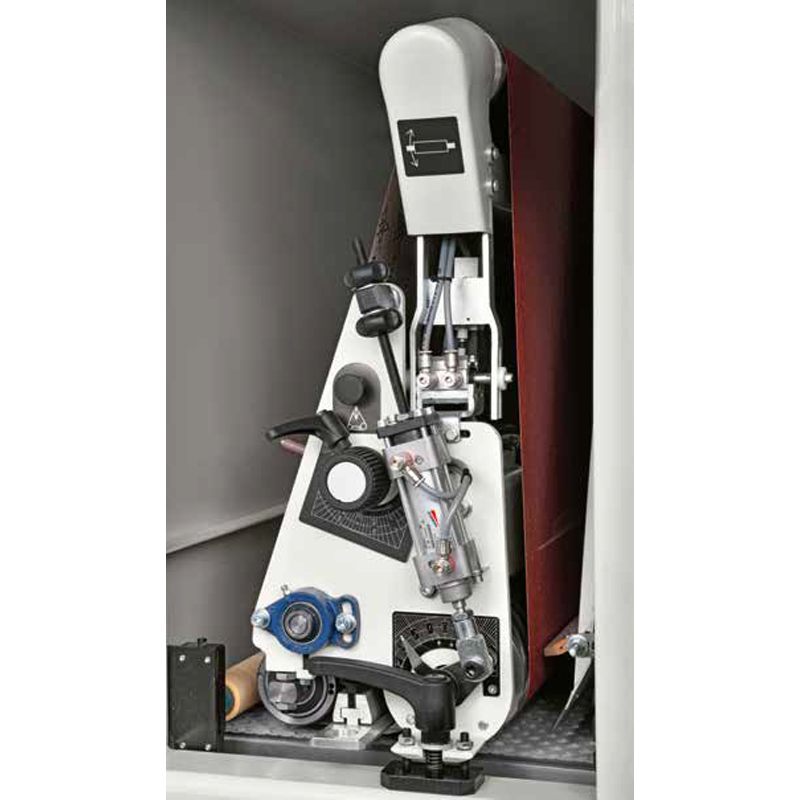

The SCM DMC SD 10 brings calibrating and finishing capability to workshops where space matters. This compact woodworking sander has a 950 mm working width and a single combined unit fitted, as standard, with a rubber calibrating roller and stiff sanding pad. It is suited to preparing solid timber and sanding panels for a consistent finish.

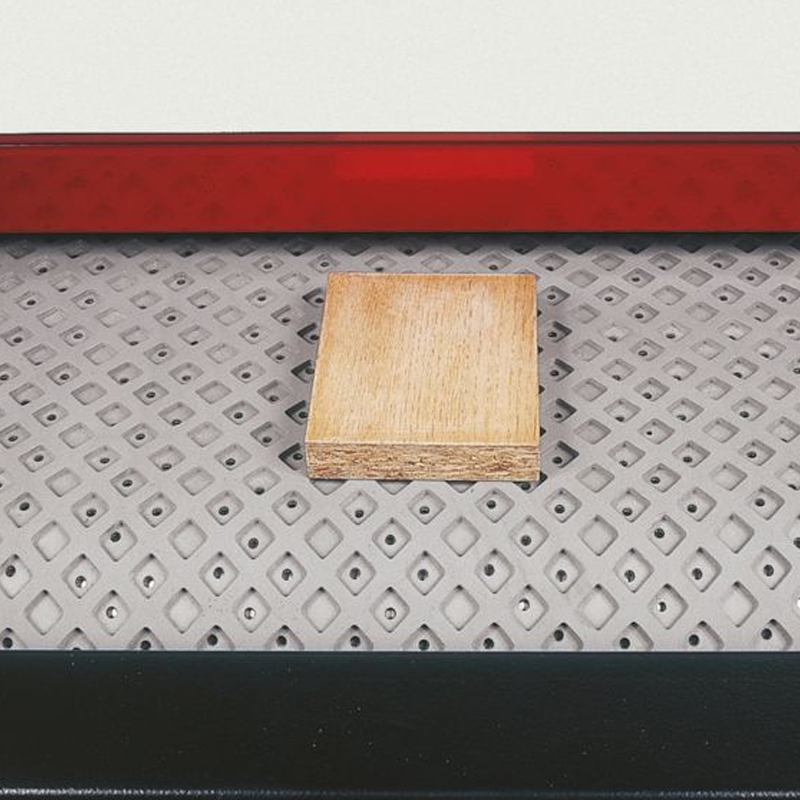

Powered worktable positioning and a digital thickness readout make setup straightforward. Two feed speeds let operators match the feed to the job, while floating pressure rollers help keep workpieces secure as they pass through the machine.
The SD 10 can be specified for your work. Options include a steel roller for heavier stock removal, a semi-stiff pad for veneered panels and electronic workpiece thickness detection. Speak to Daltons about the right calibrating sander and finishing sander configuration for your workshop.
Head type
Combination (roller & pad)
Working width
950 mm
Working thickness
4 - 170 mm
Contact roller diameter
120 mm
Contact roller type
Rubber or Steel
Sanding belt length
1525 mm
Feed belt speed
4.5/ 9 m/min
Motor
Various
Power
3 phase
The SD 10 has a 950 mm working width and accepts material from 4 to 170 mm thick.
Automatic electronic thickness detection is an option. The standard machine has powered worktable positioning and a digital thickness readout.
Yes. A semi-stiff pad is available as an option for veneered panel sanding. The basic CS 95 configuration has a stiff pad.
The belt size is 970 × 1525 mm - available to buy from our website here
The layout drawing specifies a 140 mm extraction connection and 1220 m³/h airflow at 22 m/s. Compressed-air consumption is listed as 20 Nl/min at 6 bar for a machine without the optional oscillating blower. Maximum machine weight is 850 kg. Always confirm the requirements for the chosen specification before installation.
