Name: CML SCA Range
Brand: CML
SKU: CML-SCA

Features

Multiple moving blade options
Heavy duty dip chain feed belt with hardened steel guides
6 top pressure rollers with extended pressure board
Control panel for cutting list with up to 99 programs
Nylon center feed belt glue line capability at 165 ft/min
Insulated sound enclosure
Automatic oil pump for feed chain with failure detection shutoff
Precision surface treated arbour shaft and moving heads
Operator adjustable 15 mw lasers
Complete range of optimising solutions

Description

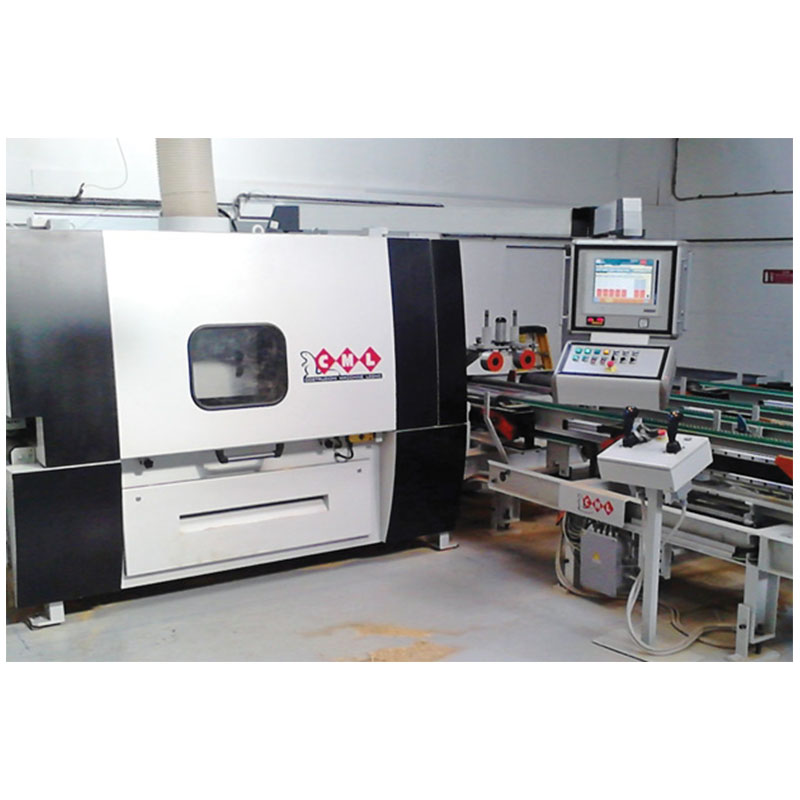

The CML SCA Advanced Series is tailored to meet from low to high volume production requirements. With the Advanced Series, you get the features you need, without paying for extras you don’t. The SCA features a heavy-duty 3 or 4 moving blade solution with higher horsepower ratings for higher volume customers, Advanced Series machines includes others horsepower that provides different cutting area with possibilities in high volume environments. Whatever your requirements, CML offers an edger to meet your needs.

Product Specifications

Pass through width, max.

1150 mm
Feed belt width

500 mm
Board thickness, max.

140 mm (450 mm blade)
Board thickness, min.

20 mm
Board length, min.

750 mm
Capacity, fixed to moving blade, min.

16 mm
Capacity, fixed to moving blade, max.

470 mm (two moving heads)
Capacity, fixed to moving blade, max.

600 mm (one moving head)
Working height

780 mm
Feed speed

0 - 50 m/min
Extraction outlet(s)

Information available on request
Compressed air

6 - 8 bar
Motor, main

44 kW (60 HP)
Motor, feed

0.75 kW (1 HP)
Power

3 phase
